High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm

High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm

  • High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm
  • High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm
  • High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm
High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm
Product Details:
Place of Origin: Guangzhou, China(mainland)
Brand Name: NANYA
Certification: CE
Model Number: BY010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact us and get the latest price
Packaging Details: International Standard Shipping Package
Delivery Time: Normally 45 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Product Name: Tray Forming Machine Capacity: 100~150 Kgs/h
Forming Type: Reciprocating Vacuum Application: Recyclable Industrial Package
Plate Size: 800*600*2mm Weight: 2 Ton
Product Height: <=150mm Warranty: 12 Months
High Light:

Pulp Moulding Machine

,

Egg Tray Making Machine

High Speed Pulp Tray Forming Machine, Paper Pulp Cup Carrier Production Line






How This Production Line Works


 Pulping System The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
 Forming System With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically.
 Drying System Metal drying line / sunshine drying / drying room
 Hot press system After dried, the products will be hot pressed to get a better shape and smoother surface.





Main Technical Data


 Product Name Tray Forming Machine
 Machine Type BY010
 Brand NANYA
 Raw Material waste paper / waste carton / newspaper / books...
 Forming Method Reciprocating Vacuum
 Structure Double working stations
 Mould Plate Size 800*600*2mm
 Product Height <=150mm
 Application Paper trays / cup carrier / egg tray / fruit tray





Detailed Description about the Machine​


1. The machine is for Recyclable pulp molding Industrial Package items.

2. The products will drop on the product collection table automatically.

3. This machine has two working stations, it can make two different types products at the same time. By changing moulds, the machine can make many types different products.

4. The pulp tank is made from SUS304 stainless steel, which is corrosion resistance.

5. PLC and touch screen controlled.

6. Drive: bottom mould reciprocated drive by pneumatic, up mould forward-backward drive by pneumatic.

7. The main Pneumatic parts brand: SMC/ARK. The main electronic parts brand: Siemens.

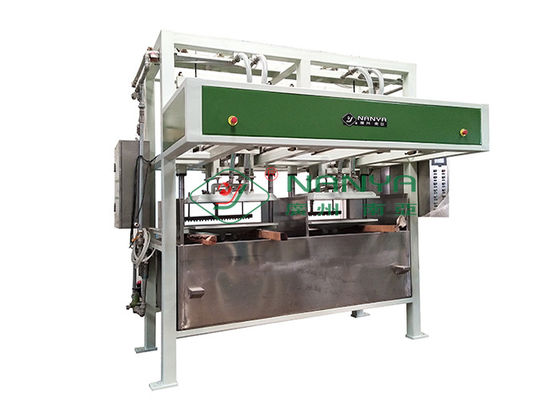

Forming Machine Picture

High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm 0



More Plate Choices


 CY010  Reciprocating -double cylinder with 800*600*2mm
 CY020  Reciprocating -double cylinder with 700*500*2mm
 CY030  Reciprocating -Single cylinder with 1000*660mm
 CY040  Reciprocating -Single cylinder with 1200*800mm
 CY050  Reciprocating -Single cylinder with 1600*800mm
 CY060  Reciprocating -Single cylinder with 2000*800mm
 CY070  Reciprocating -Single cylinder with 2400*800mm
 CY080  Reciprocating -Single cylinder with 1500*1300mm





YOUTUBE Video Link


https://www.youtube.com/watch?v=aZr_Z5UKLLY&t=35s



For more video, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





Product Show


1. Recyclable Industrial Package, like for TV, cooker, battery, air conditioner, car parts and other electrical items.

2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup

3. Disposable Medical Care Products, like kidney, bedpan, sick pad, urinal pan…

The below is one type product made by this machine, by changing moulds, the machine can make different products.

High Speed Paper Pulp Cup / Pulp Tray Machine Plate Size 800 * 600 * 2mm 1





Competitive Advantages


1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.

3. Professional Team: trained professionals available for global installation & guidance.

4. Creative Solutions: customize best configurations as per your requirements.





 Main Business Terms


 Payment terms  T/T, L/C, D/P, D/A, Western Union, Money Gram, etc.
 Delivery term  Around 45 working days
 Assembly &commissioning  Engineer for assembly and commissioning will be sent.
 Port   Guangzhou Port, Guangzhou
