Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine

Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine

    • Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine
    • Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine
    • Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine
  • Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine

    Product Details:

    Place of Origin: Guangzhou, China
    Brand Name: NANYA
    Certification: CE / ISO
    Model Number: ER4000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 100 Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 30 Sets Per Year
    Contact Now
    Detailed Product Description
    Product Name: Paper Moulding Egg Tray Machinery Capacity: 4000Pcs / H
    Raw Material: Waste Paper / Recycle Paper Forming Type: Vacuum Suction
    After Service: Engineer Overseas Available Application: Egg Tray, Egg Crate, Fruit Tray, Paper Tray
    Warranty: 1 Year Voltage: 220V/380V
    High Light:

    Egg Tray Production Line

    ,

    Egg Tray Forming Machine

    Recycle Paper Moulding Egg Tray Machinery High Output Egg Box Production Line




    Product Descriptions:


    1. NANYA egg tray machinery adopts recycle paper used newspaper, used cartons, office paper as raw material;
    2. After the process of pulping, vacuum suction forming, metal dryer drying, shaping and stacking etc, the produce different kinds of egg trays;
    3. With 24 years experience and mature patented technology, offering turnkey solutions for energy-saving, high efficiency and reliable pulp molding production line.



    Product Parameters:




     Product Name   Paper Moulding Egg Tray Machinery
     Model Type  ER4000-B
     Output  4000pcs/h (base on 30-packed egg tray, size 300x300mm, weight 65g~70g)
     Workshop Required  ≥600 m2 (for reference only, can adjust according to actual size of client’s plant.)
     Applicable Industries  Poultry, agriculture, carton production industry, printing industry, paper industry
     Container Required  7 x 40 HQ

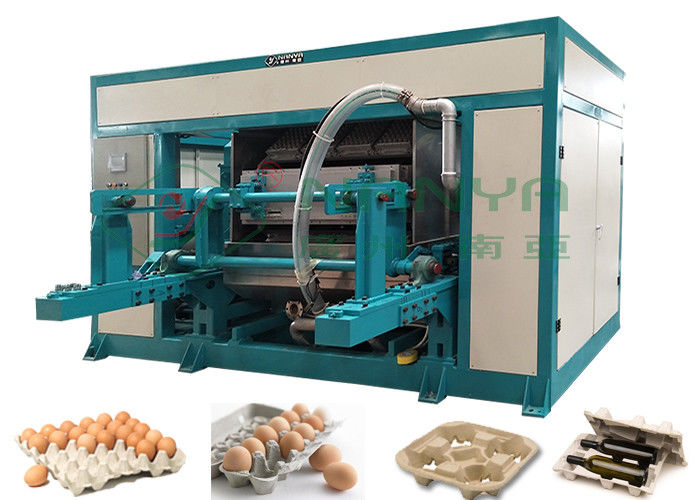

     Forming Machine   Rotary type with 8 plates. Each for 4 pcs/time
     Metal Dryer Size  22x1.6x4m  6-Layers
     Fuel for Dryer  LPD / Natural gas / Diesel / Steam / Wood / Coal and etc.





    Production Consumption:




     Electricity Consumption  ~160 kw/h
     Electricity Installed  250 kw
     Material Consumption  250~280 kg/h
     Water Consumption  1.0~1.5 ton/h
    Operator Required  4~5 persons/shift
    Choose one of the fuel from the three  Natural gas: 70~80 m3/h
     LPG: 25~29 m3/h
     Diesel: 62~70 kg/h

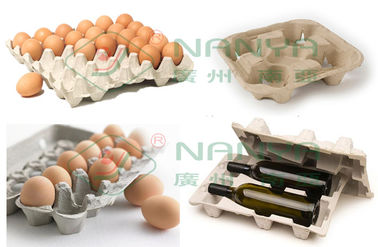

    Applications:




     1  15, 20,30,40packed egg tray… quail egg tray
     2  6, 10,12,15,18,24 packed egg carton…
     3  Fruit tray, seeding cup and other Agricultural products
     4  2 or 4 packed cup holder
     5  Disposable Medical Care Products like bedpan, sick pad, female urinal…
     6   Industrial package
    Recycle Paper Moulding Egg Tray Production Line , High Output Egg Box Machine 0





    How this Production Line Works:


    1. Pulping System: put raw material into hydrapulper, grinding with water. Adjust the pulp into certain density.
    2. Forming System: the adjusted pulp will transfer to rotary machine, products will be formed in the moulds with the vacuum suction.
    3. Drying System: products will drop down on the metal dryer for drying.
    4. Hot Press System: for egg tray and fruit tray, they don't need this process; but for egg carton, this process is compulsory.
    5. Stacking & Packing System: After dried or after hot press, the products will go to package. Court the number of the dried products, separate them and stack them up.



    YOUTUBE Video Links:




     4000pcs/h with 6 layers dryer  https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s
     6000pcs/h with 6 layers dryer  https://www.youtube.com/watch?v=YIeLPQnwO4M
     3000pcs/h with single layer dryer  https://www.youtube.com/watch?v=CX9NgjBZ0Nk
     4000pcs/h with single layer dryer  https://www.youtube.com/watch?v=JCu3xNpnCsM
     6000pcs/h with single layer dryer  https://www.youtube.com/watch?v=9XpyL-ggwi4
     For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and subscribe us.





    Main Business Terms:




     Payment Terms  30% down payment before production; 70% balance payment before delivery.
     Delivery Terms  FOB Guangzhou, China. (CNF and CIF are also available.)
     Delivery Time  100~120 days
     Package  Export Standard Packing
     Warranty  1 year
     Installation  Engineers available to service machinery overseas
     Quotation Validity  90 days after the offering date
     Aftersales Service  We will send some spare parts by free. And we will provide  operating manual, drawing, process diagram for all of the machine. We will instruct  the operation, maintain method for the buyer’s worker after installation.





    Competitive Advantages:


    1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.
    3. Professional Team: trained professionals available for global installation & guidance.
    4. Creative Solutions: customize best configurations as per your requirements.
