Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages

    • Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages
    • Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages
    • Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages
  • Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages

    Product Details:

    Place of Origin: Guangzhou, China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ES400A-ES3000A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 400-3000 Pcs/h
    Automation: Semi-automatic Forming Type: Vacuum Suction / Hot-wind Drying
    Guarantee: 12 Months Raw Material: Recycle Paper
    Voltage: 220 V - 450 V After-sales Service: Engineers Overseas Available

    Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages





    Specifications:



    Model Type

    ES400-A

    ES600-A

    ES800-A

    ES1200-A

    ES2000-A

    ES3000-A

    Capacity

    400pcs/h

    600pcs/h

    800pcs/h

    1200pcs/h

    2000pcs/h

    3000pcs/h

    Hydrapulper

    0.5m3, 5.5kw

    0.5m3, 5.5kw

    1.5m3, 15kw

    1.5m3, 15kw

    2.5m3,22kw

    2.5m3,27kw

    Forming Machine

    Plate Size 800*400mm 2pcs/unit

    Plate Size 1200*400mm 3pcs/unit

    Plate Size 1600*400mm 4pcs/unit

    Plate Size 1200*800mm 6pcs/unit

    Plate Size 1600*800mm 4*2pcs/unit

    Plate Size 1200*800mm 6*2pcs/unit

    Drying Line

    8m×2.5m×3m

    14m×2.2m×3m

    14m×2.5m×3m

    20m×2.5m×3m

    30m×2.5m×3m

    40m×3m×3m

    Workshop Requirement

    Length≥15m

    Width≥10m

    Length≥20m

    Width≥10m

    Length≥20m

    Width≥12m

    Length≥30m

    Width≥12m

    Length≥40m

    Width≥12m

    Length≥50m

    Width≥12m

    Power Requirement

    40kw

    45kw

    70kw

    95kw

    125kw

    160kw

    1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g.

    2. For different capacity, customized allocation can be made according to the clients’ requirement i

    3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.





    Descriptions:

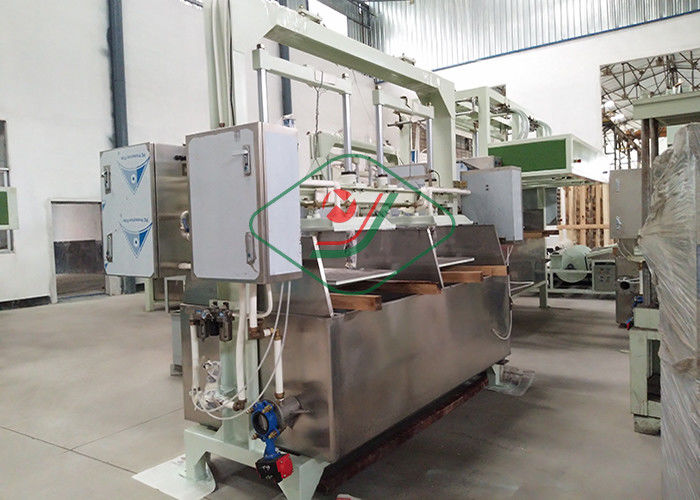

    • This is a semi automatic pulp molding production line, after the wet products formed in the forming machine, they need to dried with hot wind.
    • By changing molds, the production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray as well as inner package for industrial products.
    • The forming machine has 2 control cabinets, so the forming machine can make two different products at the same time.
    • The raw material is the recycle paper, like waste paper, waste carton, used paper and so on, which are easy to get in cheap price.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    • The formed products can be dried by drying product line, drying house or under the sunshine directly.





    Production Information and Our Warranty:



    • Status: Brand new
    • Product Type: Semi-automatic production line
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: ES400-A~ES3000-A
    • Voltage: 220V ~ 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas





    Applications:



    Egg tray

    20,30,40packed egg tray…  quail egg tray

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…

    Recycle Paper Pulp Molding Machine with 2 Cabinets for Electronic Packages





    Competitive Advantages:



    • Nanya - Set up in 1994 - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
    • The standing director of Chinese packaging association
    • Siemens servo motor is applied
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • 12 months guarantee after installation





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual,drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90days after the offering date





    FAQ:



    1. Are you a trading company or a machine manufacturer?

    We 're a machine manufacturer in Baiyun District, Guangzhou City. Our factory covers over 20000 square meters. Welcome to visit us and see the machines.





    2. How can I install the production line?

    Our engineers are available in your workshop for installation guidance and production training. Until the machine works smoothly and your workers operate the machine well, then our engineers can come back.





    3. What's your guarantee period?

    Our guarantee is 12 months after installation. And when delivery, we will offer the spare parts for one year for free.
