Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line

Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line

    • Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line
    • Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line
    • Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line
  • Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line

    Product Details:

    Place of Origin: China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: EC400B-ES3000B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 400-3000 Pcs/h
    Automation: Semi-automatic Raw Material: Waste Paper / Waste Carton / Newspaper
    Voltage: 220 V - 450 V After-sales Service: Engineers Available To Service Overseas
    Applications: Egg Tray, Fruit Tray, Coffee-cup Tray, Medical Tray, Craft...

    Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line





    Specifications:



    Model Type

    ES400-B

    ES600-B

    ES800-B

    ES1200-B

    ES2000-B

    ES3000-B

    Capacity

    400pcs/h

    600pcs/h

    800pcs/h

    1200pcs/h

    2000pcs/h

    3000pcs/h

    Hydrapulper

    0.5m3, 5.5kw

    0.5m3, 5.5kw

    1.5m3, 15kw

    1.5m3, 15kw

    2m3,22kw

    2.5m3,27kw

    Forming Machine

    Plate Size 800*400mm

    2pcs/unit

    Plate Size 1200*400mm

    3pcs/unit

    Plate Size 1600*400mm

    4pcs/unit

    Plate Size 1200*800mm

    6pcs/unit

    Plate Size 1600*400mm

    6pcs/unit

    Plate Size 1200*800mm

    6pcs/unit

    Drying Line

    4m×4m×2.5m

    6m×4m×2.5m

    8m×4m×2.5m

    12m×4m×2.5m

    12m×6m×2.5m

    24m×4m×2.5m

    Workshop Requirement

    Length≥10m

    Width≥10m

    Length≥15m

    Width≥10m

    Length≥15m

    Width≥12m

    Length≥20m

    Width≥12m

    Length≥25m

    Width≥12m

    Length≥27m

    Width≥14m

    Power Requirement

    40kw

    45kw

    65kw

    90kw

    110kw

    150kw

    1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g.

    2. For different capacity, customized allocation can be made according to the clients’ requirement.

    3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.





    Descriptions:



    • This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
    • The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
    • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
    • The formed products can be dried by drying product line, drying house or under the sunshine directly.
    • There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.





    Production Information and Our Warranty:



    • Status: Brand new
    • Product Type: Semi-automatic egg tray production line
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: ES400-B ~ ES3000-B
    • Voltage: 220V - 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas





    Applications:



    Egg tray

    20,30,40packed egg tray…  quail egg tray

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

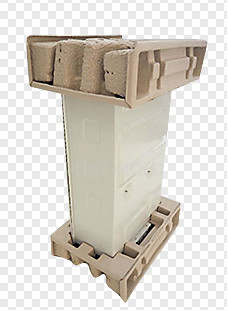

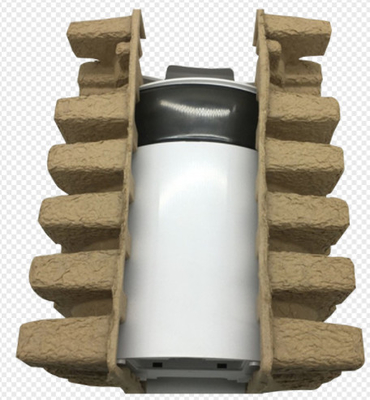

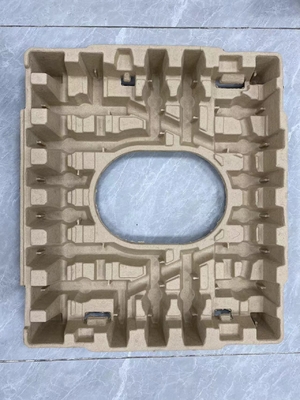

    packages

    Shoe tree, industrial package…

    Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line









    Machine Glance:



    Small Manual Egg Tray Forming Machine / Waste Paper Industrial Packages Line





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
