Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product

Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product

    • Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product
    • Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product
    • Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product
    • Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product
  • Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: Nanya
    Certification: CE/UL/CSA
    Model Number: GY3030

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~60 days
    Payment Terms: T/T, L/C, Cash or Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Mini Laboratory Machine Automation: Manual Operation
    Raw Material: Virgin Paper Pulp... Molding Type: Thermoforming
    Warranty: 12 Months Application: Tableware / Food Tray
    Forming: Pulp Injection Material: Stainless Steel / Cast Steel
    Mold Plate: 300*300mm Dimension: 1800*1880*2470mm
    High Light:

    paper pulp molding machinery

    ,

    paper pulp moulding machine

    Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product



    Product Description:

    • Pulp Molding Integrative Laboratory Machine is a combined machine independently developed by Nanya company.
    • The machine integrates the functions of pulping, forming and drying processes, and is equipped with vacuum and air compressor devices.
    • In structure, it is composed of a frame, a main engine, an electric box and accessories and integrates mechanical, electrical and pneumatic functions, which enables the basic production of pulp mold products in one machine.
    • This machine has the characteristics of compact structure, small occupation area, simple and convenient operation. It is an ideal equipment for sample making, laboratory and teaching.



    Specifications:

    Product Name Pulp Molding Integrative Laboratory Machine
    Product Model GY3030
    Function Pulping, forming, drying in one machine
    Forming Mold Size 300*300mm
    Hot Press Mold Size 300*300mm
    Main component Pulper, forming station, hot press station, vacuum pump, air compressor
    Electrical control SIEMENS- PLC,Touch screen
    Machine Dimension 1800*1880*2470mm



    Main Features:

    Integrative Machine Pulping, forming, drying in one machine
     Heating Way  Electricity
     Forming Type  Vacuum suction, thermoforming
     Drying Method  Drying in mould
     Water Proof   Add water proof chemical (AKD) ; food grade
     Oil Proof  Add oil  proof chemical  ; food grade
     Semi Automatic  Flexible for various products but small capacity

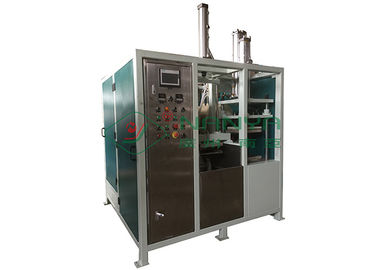

    Machine Picture:

    Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product



    How the Machine Works:

    Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.



    Forming and Drying System: When adjusting the pulp consistency, the pulp will go to the forming machine. Products will be formed on the moulds. Then needs labor to transfer products on heating hot press moulds.



    Vacuum System: Supply vacuum for forming machine.



    Air Compressor System: Supply compressed air for forming machine.



    Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.



    Disinfect System: UV or microwave disfect, then go to package.



    YOUTUBE Links:

    Pulp Molding Integrative Laboratory Machine  https://youtu.be/p8KdSp3pXO4
     For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and subscribe us.



    Applications:

    Simple compostable tableware, food trays, cup holder, industrial package, etc.

    The below are products made by our machines, by changing moulds, the machine can make different products.



    Pulp Molding Integrative Mini Laboratory Machine Testing Mold / Product



    Why NANYA is Your Best Choice?

    Rich Experience: Established in 1994, With over 20 years of experience, we will make quotation and analysis based on customer’s investment and capacity.

    Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    Quality Guarantee: Life-long service, sustainable supply and upgrade of parts and components, One-year warranty( three-year warranty for mechanical parts and main machine)

    Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 50 countries and regions;

    Strong Teams: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.



    Business Terms:

     Delivery Terms  FOB Guangzhou or Shenzhen, China. (CNF and CIF are also available.)
     Delivery Time  45~60 days
     Package  Export Standard Packing
     Warranty  12 months
     Quotation Validity  90 days after the offering date
