Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups

Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups

    • Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups
    • Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups
    • Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups
    • Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups
  • Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups

    Product Details:

    Place of Origin: Guangdong, China(Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: TS01 ~ TS10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 20~100 Kg/h
    Automation: Semi Automatic Raw Material: Virgin Paper Pulp...
    Molding Type: Pulp Thermoforming After-sales Service: Engineers Overseas Available
    Warranty: 12 Months Application: Plates / Bowls / Cups Etc
    Forming Way: Dry And Cut In Mold

    Pulp Molding Semi-automatic Stainless Steel Machine For Plates / Bowls / Cups





    Brief Introduction:



    • This type of production line is consists of a hydrapulper system, semi automatic forming machines, and corollary equipments.
    • The forming machine complete the forming, drying and hot-press shaping procedures by manually.
    • After wet pressing process, products will be dry in the mould completely.
    • Application: Compostable tableware, fruit trays, simple industrial package, etc.
    • The products made by our machines are 100% biodegradable and environmental friendly.
    • The raw material is the clean virgin paper, like the sugarcane bagasse pulp, bamboo pulp, straw pulp, reed pulp and etc.





    Specifications:



    Model Type

    TS-01

    TS-03

    TS-05

    TS-10

    Capacity

    1000 pcs/h

    3000 pcs/h

    5000 pcs/h

    10000 pcs/h

    Workshop Required

    200 m2

    400 m2

    500 m2

    800 m2

    Heating Method

    Electricity

    Electricity

    Electricity

    Conduction Oil

    Electricity Consumption

    55kw

    140 kw

    250 kw

    450 kw

    Electricity Installed

    80 kw

    230 kw

    350 kw

    680 kw

    Material Consumption

    15~18kg/h

    40~ 50 kg/h

    70~ 80 kg/h

    140~ 160 kg/h

    Water Consumption

    60~80kg/h

    100 ~ 150 kg/h

    200 ~ 250 kg/h

    400 ~ 500 kg/h

    Operator Required

    4 persons

    6 persons

    10 persons

    18 persons

    Container Required for Shipment

    1x 40’ HQ

    2x 40’ HQ

    3 x 40’ HQ

    5 x 40’ HQ

    Forming Type

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Drying Method

    Drying in mould

    Drying in mould

    Drying in mould

    Drying in mould

    Notes:

    1. The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products.
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

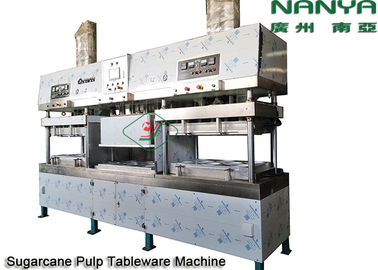

    Main Machine Picture:



    Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups





    How the Production Line Works:



    Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.



    Forming System: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.



    Drying System: After forming, then transfer the products on hot press moulds by manually. The procedures of forming, drying and hot-press shaping are completed in the forming machine.





    YOUTUBE Links:



     Semi Automatic Tableware Production Line  https://www.youtube.com/watch?v=nY_gbKXY6yk
     Semi Automatic Tableware Production Line  https://www.youtube.com/watch?v=lncxbPAnGd4
     Fully Automatic Tableware Production Line  https://www.youtube.com/watch?v=7YLnwE5lqJw&t=181s
     Fully Automatic Tableware Production Line  https://www.youtube.com/watch?v=PrmRiMvirr8
     For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and subscribe us.





    Applications:



    1. Compostable tableware, fruit trays, simple industrial package, etc.
    2. For jewelre box, wine box, tea box, makeup box;
    3. For high-grade electronics products, tools, hardware etc and etc

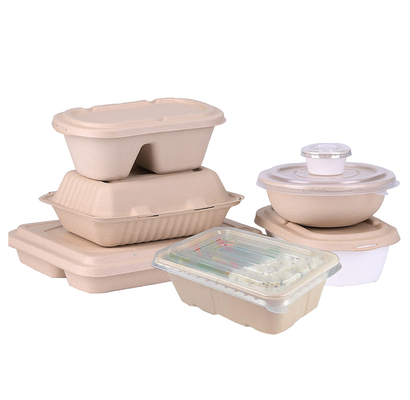

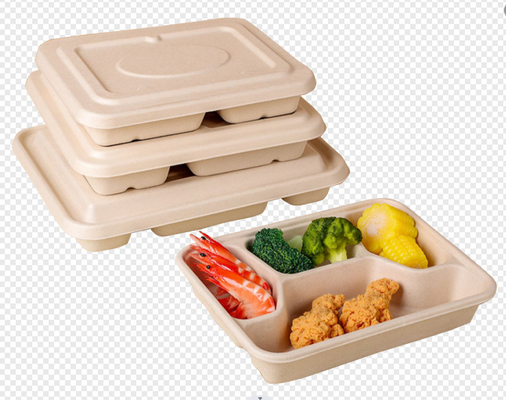

    The below are products made by our machines, by changing moulds, the machine can make different products.



    Semi - Automatic Stainless Steel Pulp Molding Equipment For Plates / Bowls / Cups





    Why Choose Us:



    Rich Experience: Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;

    Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    Mould Making Experience: NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive moulds;

    Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 50 countries and regions;

    Strong Teams: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.





    Business Terms:



     Payment Terms  30% down payment before production; 70% balance payment before delivery.
     Delivery Terms  FOB Guangzhou, China. (CNF and CIF are also available.)
     Delivery Time  45~75 days
     Package  Export Standard Packing
     Warranty  12 months
     Installation  Overseas engineering service is available
     Quotation Validity  90 days after the offering date
    Aftersales Service  We will send some spare parts for hot press use by free. And we will provide  operating manual, drawing, process diagram for all of the machine. We will instruct  the operation, maintain method for the buyer’s worker after installation.
