Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine

Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine

    • Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine
    • Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine
    • Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine
  • Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine

    Product Details:

    Place of Origin: China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: TS01 ~ TS10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 1000~10000 Pcs/h
    Automation: Semi-automatic Standard: CE/TUV/SGS/ISO9001
    Processing Material: Bagasse Pulp Or Bamboo Pulp Or Straw Pulp Or Wood Pulp Voltage: 220 V - 450 V
    After-sales Service: Engineers Available To Service Overseas Warranty: 12 Months

    Semi-automatic Paper Pulp Molding Paper Plate / Clamshell Forming Machinery





    Specifications:



    Model Type

    TS-01

    TS-03

    TS-05

    TS-10

    Capacity

    1000 pcs/h

    3000 pcs/h

    5000 pcs/h

    10000 pcs/h

    Workshop Requirement

    200 m2

    400 m2

    500 m2

    800 m2

    Heating Method

    Electricity

    Electricity

    Electricity

    Conduction Oil

    Electricity Consumption

    55kw

    140 kw

    250 kw

    450 kw

    Electricity Installed

    80 kw

    230 kw

    350 kw

    680 kw

    Material Consumption

    15~18kg/h

    40~ 50 kg/h

    70~ 80 kg/h

    140~ 160 kg/h

    Water Consumption

    60~80kg/h

    100 ~ 150 kg/h

    200 ~ 250 kg/h

    400 ~ 500 kg/h

    Worker Requirement

    4 persons

    6 persons

    10 persons

    18 persons

    Container Requirement for Shipment

    1x 40’ HQ

    2x 40’ HQ

    3 x 40’ HQ

    5 x 40’ HQ

    Forming Type

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Drying Method

    Drying in mould

    Drying in mould

    Drying in mould

    Drying in mould

    Notes:

    1. The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products.
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





    Descriptions:

    • They are semi automatic pulp molding production lines.
    • They are mainly used for high quality pulp molded products,such as dishware, artwork, disposable medical care products, high quality industrial package...

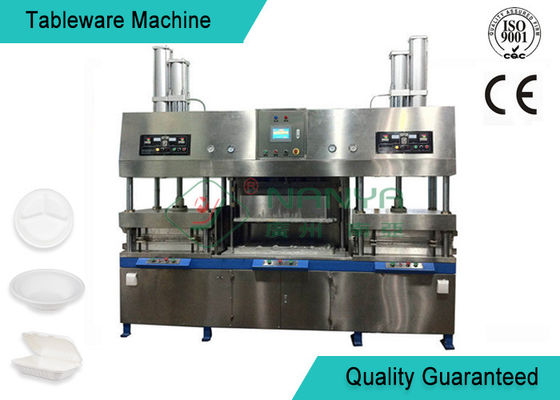

    • This type of production line is constituted by a hydrapulper system, a semi automatic thermoforming machine(forming/drying/pressing integrative machine), and corollary equipments.
    • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.





    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Thermoforming Machine
    • Processing Type: Pulp Molding Machine
    • Place of Origin: Guangdong China
    • Brand: NANYA
    • Model Type: TS01~TS10
    • Voltage: 220V - 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas

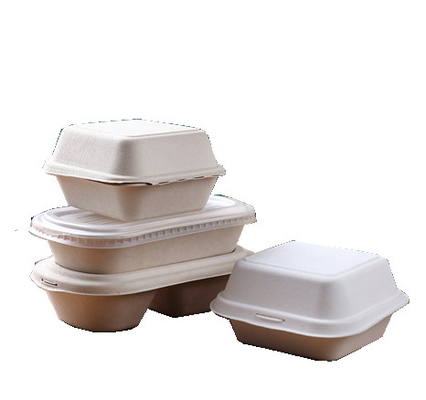

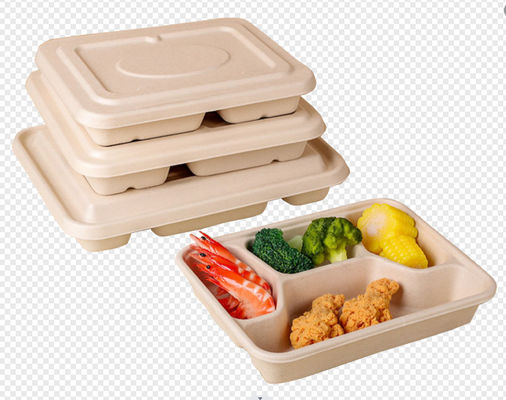

    Applications:



    Food container

    Dishware, tableware, lunch box, bowl…

    Artware

    Mask, Christmas balls, Easter Eggs , boutiques…

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    High quality packages

    Mobile phone package, camera package,

    Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine





    Competitive Advantages:

    • Siemens servo motor applied.
    • Energy saving and labor utilization
    • High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date





    Schematic Diagram:





    Semi Automatic Paper Pulp Molding Machine / Paper Tray Making Machine





    Working Theory:

    • The track or worker carries the raw material into the conveyor ;
    • The conveyor pours down the raw material into the hydrapulper mixing with certain mater;
    • Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
    • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
    • Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum;
    • So the wet products are shaped and dried on the working platform from where the worker needs to take away the finished products;
    • After that the products need to be edged and disinfected.
