Home ProductsBucket Making MachineThermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket

Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket

    • Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket
    • Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket
    • Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket
  • Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: PF1640-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Automation: Full-automatic
    Forming Type: Vacuum Suction / Thermoform Standard: CE/TUV/SGS/ISO9001
    Application: Craft Packaging / Industrial Packaging Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
    Drying Type: Drying In Mould After-sales Service Provided: Engineers Available To Service Overseas

    Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket





    Specifications:



    Machine Name

    Fully Automatic Forming Machine

    Machine Dimension

    6130*1850*4520 mm3

    Quality of Forming Plate

    1 set

    Quality of Press Plate

    2 sets

    Forming Method

    Vacuum Forming

    Drying Method

    Thermoforming Drying

    Heating Method

    By Conduction Oil

    Nominal Power

    25kw

    Nominal Voltage

    380V





    Descriptions:

    • The processes of forming, drying and shape finishing are done in one machine automatically and continuously.
    • Hydraulic drive pressing
    • Siemens Servo motor driver for transversal moving
    • With auto mould washing and edge washing.
    • PLC + touch screen control
    • Stainless pulp tank
    • The main electrical elements are Siemens.
    • The main pneumatic element is FESTO or SMC.



    Competitive Advantages:

    • Fully automatic
    • Energy saving and labor utilization
    • High quality industrial packaging forming machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association



    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Thermoforming Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: Fully Automatic Forming Machine
    • Voltage: 220-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas



    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineer to instruct buyer for installation, test-run and training.

    All the charges of air ticket, VISA , accommodation and food of the engineer should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date

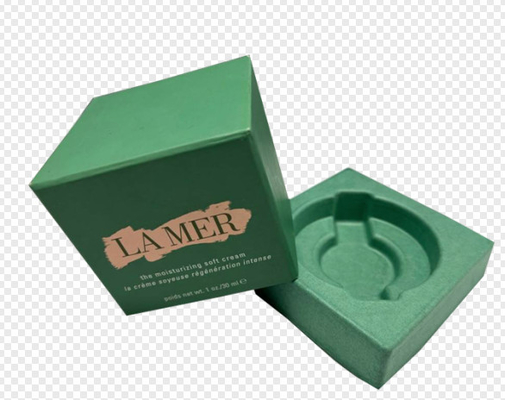

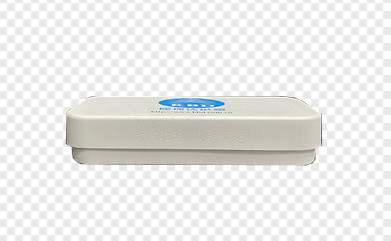

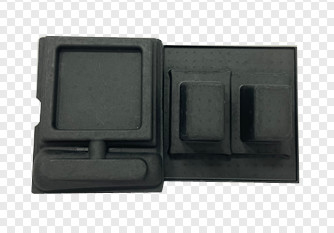

    Products Show:



    Thermoforming Molded Pulp Equipment for Fine Paper Package / Zero Angel Bucket
