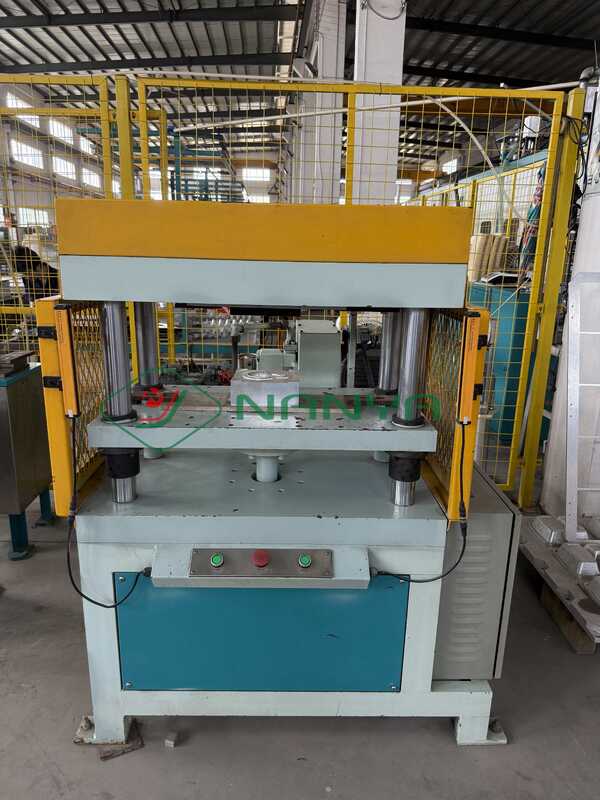

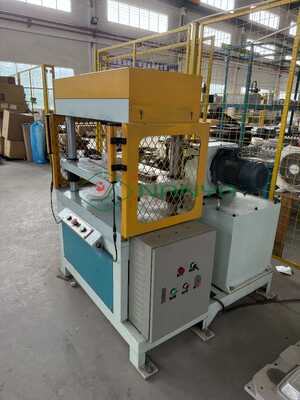

Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure

    • Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure
    • Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure
    • Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure
    • Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure
  • Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure

    Product Details:

    Place of Origin: Guangdong China(Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: SQ060

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Name: Edge Traimming / Cutting Machine Application: For Edge Cutting Paper Trays
    Pressure: 20Tons(Adjustable) Mould Plate: 600*400mm
    Structure: Reciprocating Movement Automation: Manual Operation
    Dimension: 2200*800*1260mm Weight: 1 Ton

    Small Paper Tray Edge Traimming / Cutting Machine by Manually 20 ton Pressure






    Description of Edge Trimming Machine


    1. Edge trimming machine uses high pressure to cut the extra edges of the paper tray products, to get more compact and neat edges.

    2. The egde trimming items are the dry pulp molded products, such as paper plates, paper bowls, food containers, egg carton, shoe inserts, industrial package and etc.

    3. The maximum pressure of this machine is 20 tons.





    Main Technical Parameters​


     Machine Name  Edge Traimming / Cutting Machine
     Model Type  SQ060
     Trademark  NANYA
     Automation  Manual operation
     Mould Platen Size  600*400mm
     Electricity Heating  3KW
     Working Movement  Reciprocating(bottom mould move up)
     Machine Dimension  2200*800*1260mm
     Machine Weight  1000kg





























    Edge Trimming Machine Overview


    Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure





    YOUTUBE Video Link


    https://youtu.be/p3zc4wr_SJg

    For more videos, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.











    Products after edge trimming


    Small Paper Tray Forming Machine Edge Traimming Or Cutting By Manually 20 Ton Pressure
    1. Except this paper blow, by changing moulds, you can also edge trimming other products in this machine, like paper plates, food containers, egg carton, shoe inserts, industrial package and etc.
    2. We have our mould process centre and professional mould design team; we will design and make moulds according to customers’ requirements.

























































    Why Choose NANYA


    1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

    2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.

    3. Professional Team: trained professionals available for global installation & guidance.

    4. Creative Solutions: customize best configurations as per your requirements.





    Other  Models for Choice


     Pressure   Including 3tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 100tons and 200tons.
     Driving Way

     Pneumatic, hydraulic and pneumatically/hydraulic can be selected.

     Machine Design

     Our products support customized design.













    Business Terms


     Payment Terms  30% down payment before production; 70% balance payment before delivery.
     Delivery Terms  FOB Guangzhou, China. (CNF and CIF are also available.)
     Package  Wooden Box
     Delivery Time  30 days
     Warranty   12 months
     Installation  Overseas engineering service is available.
