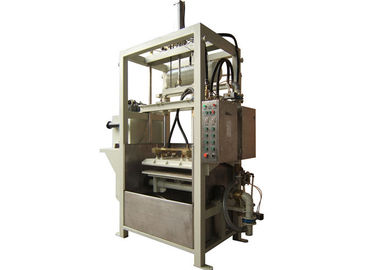

Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine

Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine

    • Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine
    • Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine
    • Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine
    • Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine
    • Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine
  • Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: CW020 / CW030 / CW040 / CW060 / CW201 / CW221

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 50-500kg / H
    Automation: Semi-automatic Standard: CE/TUV/SGS/ISO9001
    Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp Voltage: 220 V - 450 V
    After-sales Service: Engineers Available To Service Overseas Warranty: 12 Months

    Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine


    Specifications:



    Capacity

    50kg/h

    100kg/h

    200kg/h

    300kg/h

    500kg/h

    1000kg/h

    Hydrapuper

    0.8m3,7.5kw

    1.5m3,15kw

    2m3,22kw

    2m3,22kw *2

    2.5m3,37kw *2

    5m3,55kw *2

    Forming Machine

    1 set

    2 sets

    4 sets

    6sets

    10 sets

    20 sets

    Workroom Requirement

    ≥30 *10m

    ≥30 *15m

    ≥50 *15m

    ≥50 *20m

    ≥60 *20m

    ≥80 *20m

    Workers Requirement

    4-5

    6-7

    10-12

    18-20

    24-26

    45-45

    1.The dry weight of per product is about 150-200g, and the thickness of per product is about    1-1.5mm.  When producing products different thickness and weight, the capacity may be different.

    2.The workshop size is for clients' reference and ie can be adjusted according to the actual size of  clients' plant.

    3.For other capacity, the machine and allocation can be desiged and made according to clients' actual requirement.





    Descriptions:

    • This is a semi automatic pulp molding production line. The production line consists of forming machine, drying line, hot-press machine.
    • The formed products can be manually transferred to the drying line (or drying house) for drying; or dried by sunshine directly. After being dried, the products will be manually transferred into the hot-press machine to fix the shape.
    • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • The equipments can be allocated flexibly. One set drying production line can allocate multiple forming machines and hot-press machine.
    • These machines can be applied to produce various universal industrial packages.
    • There are reciprocating, turnover, single and double cylinders forming machines for client’s choice.
    • Forming machine with double cylinders and double positions can produce two kinds of products with different shape and thickness at the same time.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
    • The drying ways include flat conveyor drying , line drying room, sun drying, tunnel type drying line and hanging basket drying line.



    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Semi-automatic Machine for Industrial Package
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: CW020 / CW030 / CW040 / CW060 / CW201 / CW221
    • Voltage: 220V - 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas


    Applications:


    Industrial & shockproof Packaging

    Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns…

    Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine



    Agricultural Trays



    Egg Tray, Egg Box, Fruit Tray, Seeding Cup…

    Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine



    Medical Care Products



    Urinal Pot, Sick Pot…

    Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine



    Craftwork



    Mask, Christmas balls, Easter Eggs , boutiques…

    Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine




    Competitive Advantages:

    • Semi automatic production line
    • Energy saving and labor utilization
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
    • The standing director of Chinese packaging association


    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date




    Schematic Diagram:

    Paper Pulp Molding Machine , Semi-automatic Industrial Packages Forming Machine
