Recycled Paper Pulp Molding Machine Semi - Automatic Egg Tray Line With Dryer

Product Details:

Place of Origin:	China
Brand Name:	Nanya
Certification:	CE/TUV/SGS/ISO9001
Model Number:	ES400A-ES3000A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	45~75days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Paper Pulp Moulding Machine	Capacity:	400-3000 Pcs/h
Forming Type:	Vacuum Suction / Hot-wind Drying	Standard:	CE/TUV/SGS/ISO9001
Processing Material:	Water Paper / Bagasse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp	Voltage:	220 V - 450 V
After-sales Service:	Engineers Available To Service Overseas
Highlight:	paper pulp molding machinery , paper pulp moulding machine

Recycled Paper Egg Tray Making Machine / Semi-automatic Egg Tray Line with Dryer

Competitive Advantages:

Semi-antomatic production line
Siemens servo motor is applied
Energy saving and labor utilization
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
30 years experience in this field, Chinese reliable supplier, supported by the government and university
The standing director of Chinese packaging association

Specifications:

Model Type	ES400-A	ES600-A	ES800-A	ES1200-A	ES2000-A	ES3000-A
Capacity	400pcs/h	600pcs/h	800pcs/h	1200pcs/h	2000pcs/h	3000pcs/h
Hydrapulper	0.5m³, 5.5kw	0.5m³, 5.5kw	1.5m³, 15kw	1.5m³, 15kw	2.5m³,22kw	2.5m³,27kw
Forming Machine	Plate Size 800*400mm 2pcs/unit	Plate Size 1200*400mm 3pcs/unit	Plate Size 1600*400mm 4pcs/unit	Plate Size 1200*800mm 6pcs/unit	Plate Size 1600800mm 42pcs/unit	Plate Size 1200800mm 62pcs/unit
Drying Line	8m×2.5m×3m	14m×2.2m×3m	14m×2.5m×3m	20m×2.5m×3m	30m×2.5m×3m	40m×3m×3m
Workshop Requirement	Length≥15m Width≥10m	Length≥20m Width≥10m	Length≥20m Width≥12m	Length≥30m Width≥12m	Length≥40m Width≥12m	Length≥50m Width≥12m
Power Requirement	40kw	45kw	70kw	95kw	125kw	160kw
1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g. 2. For different capacity, customized allocation can be made according to the clients’ requirement i 3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.

Descriptions:

This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
The formed products can be dried by drying product line, drying house or under the sunshine directly.
There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h and 1200pcs/h and so on.

Production Information and Our Warranty:

Status: Brand new
Product Type: Semi-automatic production line for egg tray
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: ES400-A~ES3000-A
Voltage: 220V ~ 440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Machine Glance:

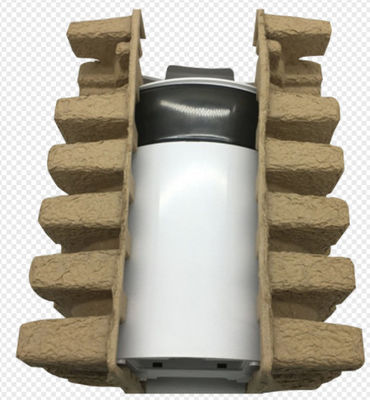

Recycled Paper Pulp Molding Machine Semi - Automatic Egg Tray Line With Dryer 0

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China.
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual,drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90days after the offering date
