Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line

Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line

Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line
Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line
Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: EW2500-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 75 Days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 2800 Pcs/h
Processing Material: Waste Paper / Waste Carton / Newspaper Forming Type: Vacuum Suction
After-sales Service Provided: Engineers Available To Service Overseas Warranty: 12 Months
Automation: Fully-automatic Drying Method: Hot Air Dry
High Light:

Egg Carton Machinery

,

Egg Carton Making Machine

Guaranteed Full Automatic Pulp Egg Tray / Cup Holder / Fruit Tray Production Line





Specifications:



Model Type

EW2500-A

Capacity

2800 pcs/hour

Workshop Requirement

600 m2

Electricity Consumption

~140 kw

Electricity Installed

210 kw

Material Consumption

170~180 kg/h

Water Consumption

600~700 kg/h

Worker Requirement

5~6 persons

Container Requirement for Shipment

5 x 40 HQ + 1 x  20 container

Forming Machine (Reciprocating Type)

Plate Size 2400*800 mm 12 pcs/time

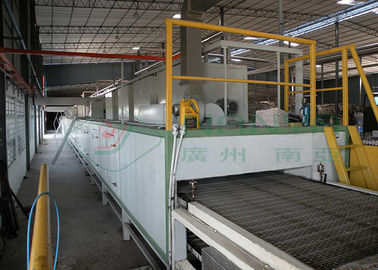

Drying  Line

30x3.4x2.4 m  1-Layer

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Fuel Consumption (One Item Selectable)



Natural Gas

60~70 m3/h

LPG

20~24 m3/h

Diesel

50~60 kg/h

Heavy Oil

52~62 kg/h

Steam

1.2~1.3 ton/h

Wood

210~240 kg/h

Coal

160~180 kg/h





Description:

  • It’s a Fully Automatic Egg Tray Production Line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.

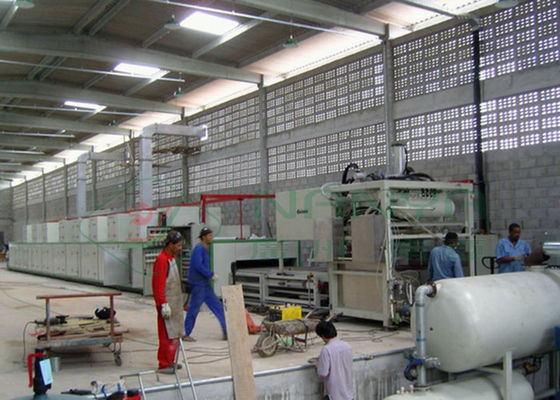

  • This type of production line is constituted by a hydrapulper system, a Reciprocating type forming machine, a single-layer drying line, and corollary equipments.
  • Products are output automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



Applications:

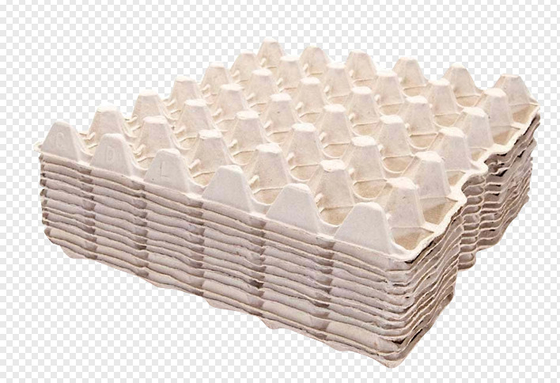

Egg tray

20,30,40packed egg tray…  quail egg tray

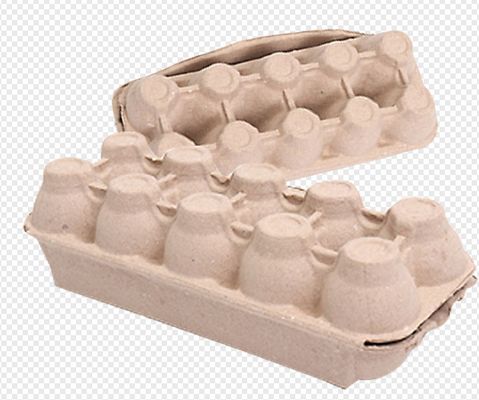

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line 0





Competitive Advantage:

  • Fully automatic production line
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 30 years experience in this field, Chinese reliable supplier, supported by the  government and university.





Schematic Diagram:



Automatic Pulp Egg Carton Machine for Egg Tray / Cup Holder / Fruit Tray Production Line 1





Working theory:

  • The track or worker carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor ;
  • The conveyor pours down the raw material into the hydrapulper mixing with certain water;
  • The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
  • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum.  Then the wet products are shaped on the working platform;
  • Finally, the shaped products are sent to the dryer line automatically. After one round or two, the products are complete dry.



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service
  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
