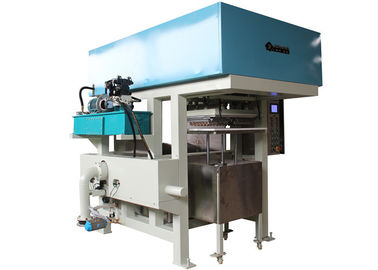

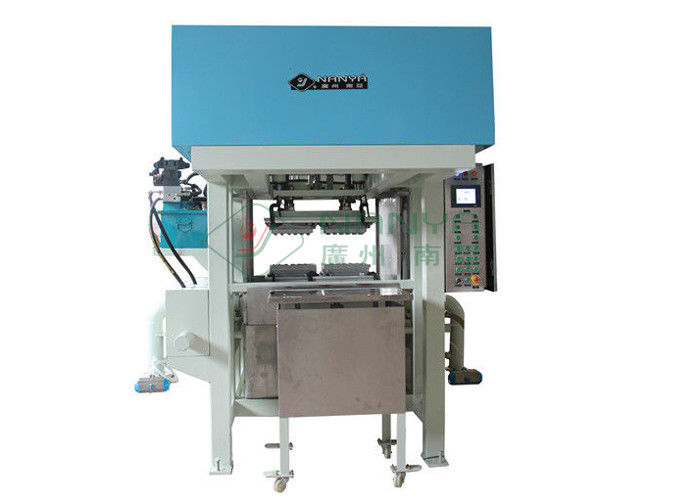

Double Plate Turnover Type Paper Pulp Molding Machine for Industrial Package

Name: Double Plate Turnover Type Paper Pulp Molding Machine for Industrial Package
Brand: Nanya
SKU: CY231
Rating: 5 (195 reviews)

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Product Name:	Double Plate Turnover Paper Pulp Molding Machine	Automation:	Fully-automatic
Forming Type:	Vacuum Suction	Standard:	CE/TUV/SGS/ISO9001
Processing Material:	Newspaper / Corrugated Paper / Virgin Pulp	Voltage:	380 V - 450 V
After-sales Service:	Engineers Available To Service Overseas	Warranty:	12 Months
High Light:	paper pulp molding machinery , disposable paper plates making machine

Double Plate Turnover Type Paper Pulp Molding Machine for Egg Tray / Carton / Fruit Tray

Specifications:

Model Type	CY231
Product Name	Automatic Turnover Type Forming Machine
Production Speed	For 30-egg tray: 8-10pcs/min
Mould Plate Size	1600400mm2
Product Dimension	3400×3300×2250mm
Power Consumption	≤6kw
Voltage	380V~450V
Forming Method	Vacuum Suction
The Main Electronic Parts Brand	Siemens
The Main Pneumatic Parts Brand	SMC/ARK

Descriptions:

This is a fully automatic pulp molding production machine. Products are taken out by mechanical arms and put them on the drying line or the platform automatically. So it helps to reduce the intensity of labors to a great extent.
It’s mainly used for high quality pulp molded products, such as egg tray, egg box and fruit tray and so on.
The pulp tank is made from SUS304 stainless steel, which has the nature of corrosion resistance.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
Apply PLC control, touch screen which makes the machine operated very safely and stably
Merits: High degree automation, less manpower and high qualified rate.

Production Information and Our Warranty:

Applications:

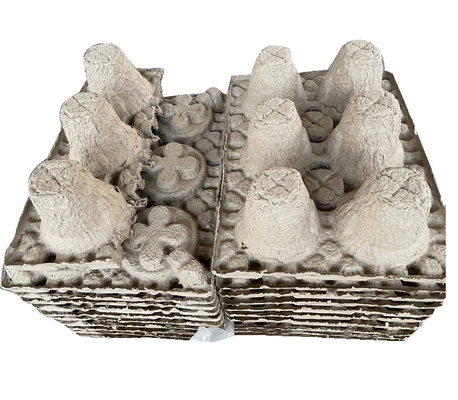

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…

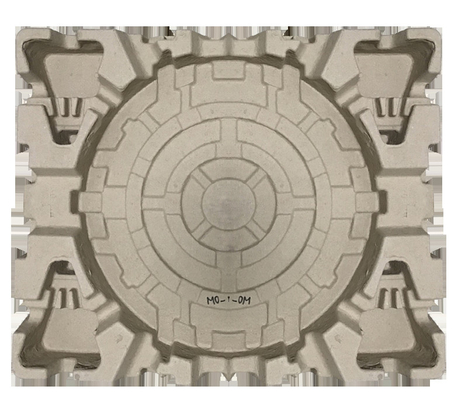

packages	Shoe tree, industrial package…

Competitive Advantages:

Fully antomatic forming production line
Siemens servo motor is applied
Energy saving and labor utilization
High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	30-60 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
