Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line

Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line

    • Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line
    • Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line
    • Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line
  • Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: Nanya
    Certification: CE,TUV,SGS, ISO9001
    Model Number: Hanging Basket Drying Production Line

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45-75 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Model: Hanging Basket Drying Production Line Capacity: 3~10 Tons/24hours
    Fuel Type: Oil / Gas / Coal / Wood / Biomass Fuel / Steam / Conduction Oil / Electricity / Double Source… Applications: Egg Tray, Egg Carton, Fruit Tray, Cup Carrier, Disposable Medical Care Products
    After-Sale Service: Engineers Available To Service Machinery Overseas Standards: CE,TUV,SGS, ISO9001
    High Light:

    Pulp Molding Production Line

    ,

    Pulp Molding Machinery

    Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line





    Specifications:



    Heating Material

    Length

    Width of the Drying Room

    Capacity

    Oil / Gas

    20~45 m

    6~10 m

    3~10 ton/24hours

    Coal / Wood

    20~45 m

    6~10 m

    3~10 ton/24hours

    Biomass Fuel

    20~45 m

    6~10 m

    3~10 ton/24hours

    Steam

    20~45 m

    6~10 m

    3~10 ton/24hours

    Conduction Oil

    20~45 m

    6~10 m

    3~10 ton/24hours

    Electricity

    20~45 m

    6~10 m

    3~10 ton/24hours





    Descriptions:

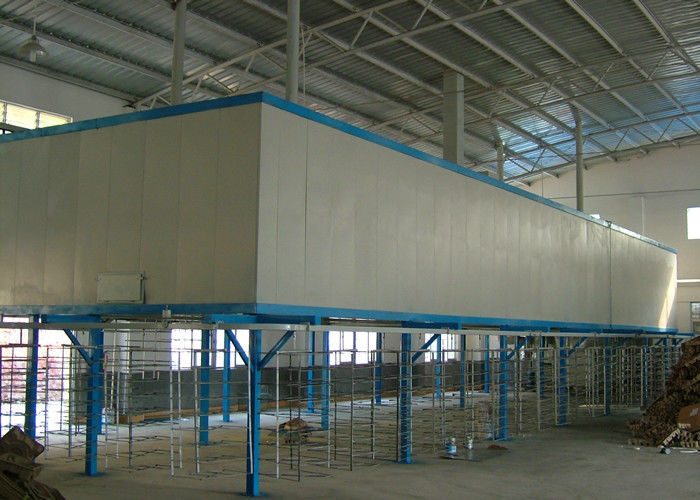

    • This drying line is composed of drying furnace, conveying chains and hanging basket.
    • First conveying chains drive the hanging basket and push it into the furnace. Then the dried products will be unloaded to the hot press zone. In this way, the assembly line production will be achieved.
    • This drying system uses less drying energy and saves more manpower.



    Competitive Advantages:

    • Energy saving and labor utilization
    • High quality egg tray machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association.



    Production Information & Our Warranty:

    • Hanging Basket Drying Egg Tray Production Line
    • Mainly used for drying the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
    • Status: Brand new
    • Product Type: Egg Tray Dryer
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type:Hanging Basket Drying Production Line
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas

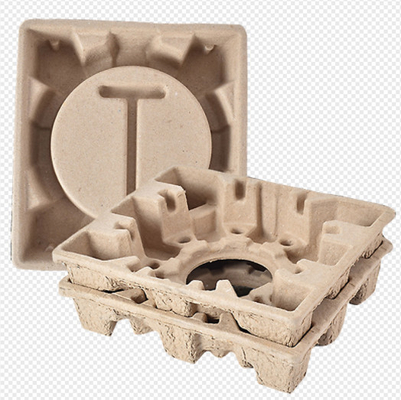

    Applications:

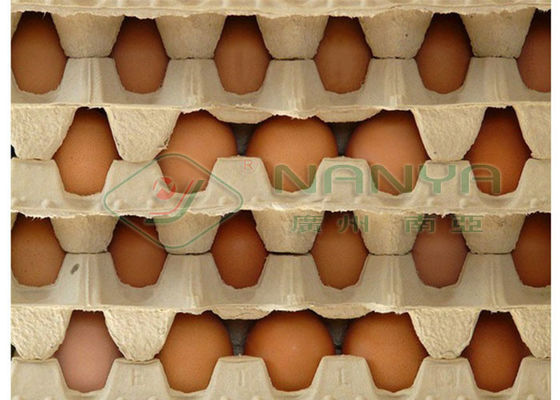

    Egg tray

    20,30,40packed egg tray…  quail egg tray

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    Industrial packages

    Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns…

    Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line 0

    Hanging Transfer Pulp Molding Dryer / Egg Tray Drying Production Line 1





    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
