Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line

Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line

    • Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line
    • Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line
  • Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: Nanya
    Certification: CE,TUV,SGS, ISO9001
    Model Number: YC030

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45-75 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Product Name: Fully Automatic Tableware Forming Machine Fuel Type: Electricity And Conduction Oil…
    Forming Type: Thermoforming Drying Applications: Dishware , Tableawre, Industrial Packaging
    After-Sale Service: Engineers Available To Service Machinery Overseas Automation: Fully-automatic
    Warranty: 12 Months Processing Material: Bagassse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp
    High Light:

    Pulp Molding Production Line

    ,

    Pulp Moulding Machinery

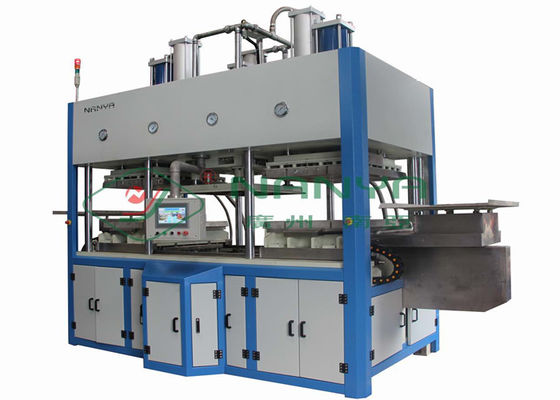

    Fully Automatic Biodegradable Paper Pulp Molding Tableware Thermoforming Machine


    Specifications:


    Product Name

    Fully Automatic Forming Machine

    Model Type

    YC030

    Work Table Dimension

    1100*800mm

    Maximum Boost Pressure of Hydraulic Cylinder

    40tons

    Hot-press Mould Closing Height

    80mm

    Product Height

    ≤100mm

    Nominal Voltage

    380V

    Rated Power

    5kw

    Machine Dimension for Transportation

    5230*2200*2480mm3

    The Whole Machine Dimension

    5230*2200*3715 mm3

    Working Period

    20-80s (Adjustable)

    Circuit Control Mode

    PLC & Touch Screen

    Solenoid Valve

    DC24V

    Maximum Electrical Heating Power

    105kw

    Forming Method

    Vacuum Forming

    Drying Method

    Thermoforming Drying

    Normal Working Air Pressure

    0.6-0.75PMa

    Vacuum Pressure

    -0.06-0.075PMa



    Descriptions:

    • The processes of forming, drying and shape finishing are done in one machine automatically and continuously.
    • Hydraulic drive pressing
    • Siemens Servo motor driver for transversal moving
    • With auto mould washing and edge washing.
    • PLC + touch screen control
    • Stainless pulp tank
    • The main electrical elements are Siemens.
    • The main pneumatic element is FESTO or SMC.


    Competitive Advantages:

    • Fully automatic
    • Energy saving and labor utilization
    • High quality egg tray machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association


    Production Information and Our Warranty :

    • Fully Automatic Tableware Production Line
    • Mainly used for the gigh-grade pulp molding products, such as dish trays, tableware, cup carriers, mask and some inside industrial packaging for electronic devices.
    • Status: Brand new
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: Fully Automatic Tableware Forming Machine
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas


    Applications:

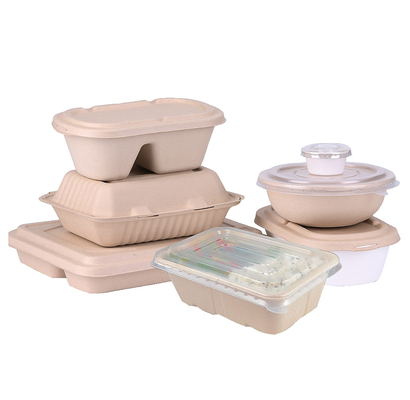

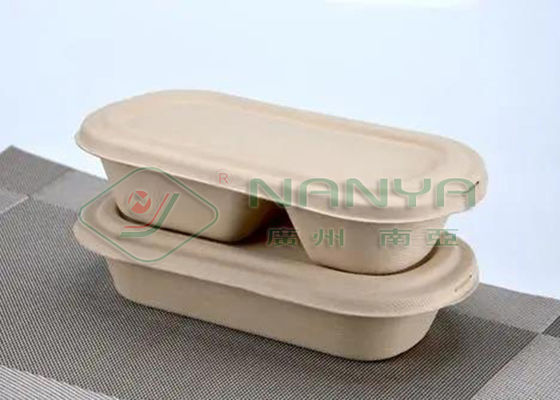

    Food container

    Dishware, tableware, lunch box, bowl…

    Artware

    Mask, Christmas balls, Easter Eggs , boutiques…

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    High quality packages

    Mobile phone package, camera package,

    Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line 0



    Business Terms:


    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineer should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation.

    8

    Quotation Validity

    90 days after the offering date



    Schematic Diagram:
    Tableware Thermoforming Pulp Moulded Products Pulp Molding Production Line 1
