High Grade Dishware Tableware Pulp Molding Equipment Fully Automatic

Name: High Grade Dishware Tableware Pulp Molding Equipment Fully Automatic
Brand: Nanya
SKU: TA01~TA10
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (134 reviews)

Product Details:

Place of Origin:	China(mainland)
Brand Name:	Nanya
Certification:	CE,TUV,SGS, ISO9001
Model Number:	TA01~TA10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	60-120 Days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	1000 sets/year

Contact Now

Detailed Product Description

Processing Material:	Bagassse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp	Heating Method:	Electricity / Conduction Oil / Steam
Capacity:	1500~14000 Pcs / H	Drying Mode:	Drying In Mould
After-Sale Service:	Engineers Available To Service Machinery Overseas	Applications:	Dishware / Tableware
Automation:	Fully-automatic	Voltage:	220V - 440V
High Light:	Pulp Molding Production Line , Pulp Molding Machinery , Dishware Pulp Thermoforming Machine

Fully Automatic Pulp Molding Tableware Production Line 1500Pcs to 15000Pcs Per Hour

Specifications:

Model Type	TA-01	TA-02	TA-05	TA-10
Capacity	1500pcs/h	3000pcs/h	7500pcs/h	15000pcs/h
Workshop Requirement	200m²	300m²	600m²	1000 m²
Electricity Consumption	95kw	200kw	150kw	280kw
Electricity Installed	150kw	250kw	220kw	400kw
Material Consumption	20~25kg/h	50~60kg/h	120~140kg/h	240~280kg/h
Water Consumption	80~100kg/h	150~200kg/h	500~800kg/h	1000~1600kg/h
Worker Requirement	3 persons	4 persons	6 persons	8 persons
Container Requirement for Shipment	1 x 40’HQ	2 x 40’HQ	4 x 40’HQ	8 x 40’HQ
Forming Type	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming
Drying Method	Drying in mould	Drying in mould	Drying in mould	Drying in mould
Notes: The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Descriptions:

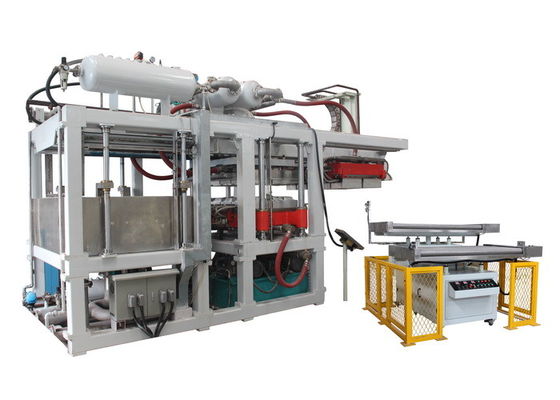

Fully Automatic Tableware Making Production Line
Mainly used for the products with simple structure but in high quality, such as tableware, dishware and some high-grade pulp molding products.
Status: Brand new
Product Type: Tableware Making Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: TA-01~TA-10
Voltage: 220V-440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Competitive Advantages:

Fully automatic
Energy saving and labor utilization
High quality tableware making machine
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
20 years experience in this field, Chinese reliable supplier, supported by the government and university.
The standing director of Chinese packaging association

Applications:

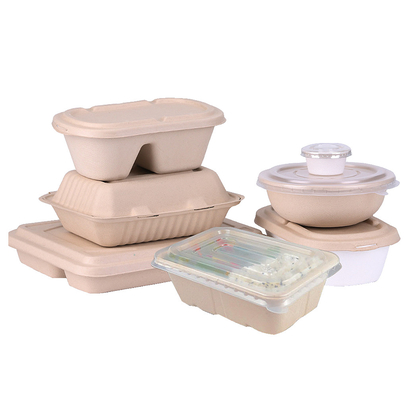

Food container	Dishware, tableware, lunch box, bowl…
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
High quality packages	Mobile phone package, camera package,

Business Terms:

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	60-120 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
