Pulp Moulded Products Egg Tray Production Line , Pulp Moulding Machine

Pulp Moulded Products Egg Tray Production Line , Pulp Moulding Machine

  • Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine
  • Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine
  • Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine
Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine
Product Details:
Place of Origin: China(mainland)
Brand Name: Nanya
Certification: CE,TUV,SGS, ISO9001
Model Number: EW600-B~EW2500-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: Normally 45-75 days
Payment Terms: L/C, T/T, Cash, Western Union
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Processing Material: Waste Paper, Newspaper Fuel: Diesel, Heavy Oil, LPG, Natural Gas, Coal, Wood, Steam…
Capacity: 600~3000 Pcs/H Forming Type: Reciprocating
Production: Egg Tray, Egg Carton, Fruit Tray, Cup Carrier, Disposable Medical Care Products After-Sale Service: Engineers Available To Service Machinery Overseas
Applications: Egg Tray, Egg Carton, Medical Tray, Craftworks Automation: Fully-automatic
Warranty: 12 Months Voltage: 220 V - 450 V
High Light:

Pulp Molding Machinery

,

Pulp Moulding Machinery

Fully Automatic Pulp Molding Egg Tray Machinery 600Pcs to 3000Pcs Per Hour





Specifications:



Model Type

EW600-B

EW800-B

EW1200-B

EW1600-B

EW2000-B

EW2500-B

Capacity

700pcs/hour

1000pcs/hour

1400pcs/hour

1800pcs/hour

2400pcs/hour

2800pcs/hour

Workshop

Requirement

200m2

200m2

300m2

300m2

300m2

400m2

Electricity

Consumption

~35kw

~40kw

~70kw

~85kw

~110kw

~140kw

Electricity

Installed

50kw

60kw

100kw

130kw

170kw

210kw

Material

Consumption

40~45kg/h

55~70kg/h

80~100kg/h

80~100kg/h

130~150kg/h

170~180kg/h

Water

Consumption

150~180kg/h

200~300kg/h

300~400kg/h

400~500kg/h

500~600kg/h

600~700kg/h

   Worker    Requirement

3~4persons

3~4persons

4~5persons

4~5persons

4~5persons

5~6persons

Container Requirement for Shipment

2x 40HQ

2 x 40HQ

3 x 40HQ

1 x 20’

4 x 40HQ

4 x 40HQ

5 x 40HQ

Forming Machine

(Reciprocating Type)

plate size 1200*400mm 3pcs/time

plate size 1600*400mm 4pcs/time

plate size 1200*800mm 6pcs/time

plate size 1600*800mm 8pcs/time

plate size 2000*800mm 10pcs/time

plate size 2400*800mm 12pcs/time

Drying line

6x2.2x4m
6-Layers

6x2.6x4m
6-Layers

12x2.2x4m
6-Layers

12x2.6x4m
6-Layers

12x3.0x4m
6-Layer

12x3.4x4m
6-Layers

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant .





Fuel Consumption (One Item Selectable)



Model Type

EW600-B

EW800-B

EW1200-B

EW1600-B

EW2000-B

EW2500-B

Natural Das

12~14 m3/h

16~20 m3/h

24~27 m3/h

31~36 m3/h

40~49 m3/h

54~63 m3/h

LPG

4.5~5.5m3/h

6~7m3/h

9~10m3/h

11~13.5m3/h

15~18m3/h

18~22m3/h

Diesel

11~13kg/h

14.5~18kg/h

22~25kg/h

27~32kg/h

36~40kg/h

45~54kg/h

Heavy Oil

12~13.5m3/h

16~19kg/h

23~27kg/h

28~32kg/h

38~41kg/h

47~56kg/h

Steam

0.2~0.3ton/h

0.36~0.4ton/h

0.5~0.6ton/h

0.7~0.8ton/h

0.9~1.0ton/h

1.1~1.2ton/h

Wood

45~55kg/h

63~72kg/h

99~108kg/h

117~135kg/h

153~180kg/h

190~220kg/h

Coal

31~36kg/h

45~54kg/h

72~81kg/h

90~108kg/h

120~135kg/h

144~160kg/h





Descriptions:

  • Fully Automatic Egg Tray Production Line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
  • Status: Brand new
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: EW600-B~EW2500-B
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas



Competitive Advantages:

  • Fully automatic
  • Energy saving and labor utilization
  • High quality egg tray machine
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
  • The standing director of Chinese packaging association



Applications:

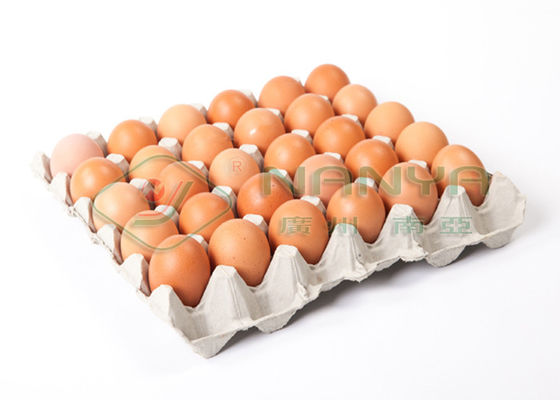

Egg tray

20,30,40packed egg tray…  quail egg tray

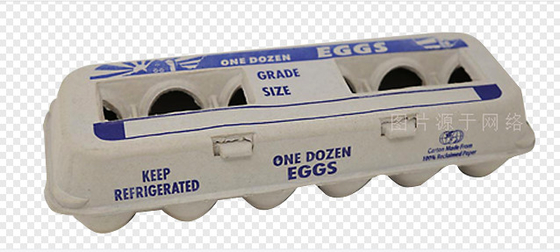

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

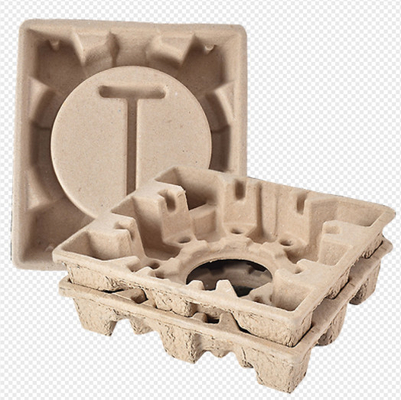

packages

Shoe tree, industrial package…

Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine 0

Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine 1





Business Terms:



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45~75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date





Schematic Diagram:



Pulp Moulded Products Egg Tray Production Line ,  Pulp Moulding Machine 2
