Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine

Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine

  • Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine
  • Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine
  • Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine
  • Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine
Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine
Product Details:
Place of Origin: Guangzhou, China(mainland)
Brand Name: NANYA
Certification: CE
Model Number: BY010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact us and get the latest price
Packaging Details: International Standard Shipping Package
Delivery Time: Normally 45 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Product Name: Pulp Tray Machine Forming Type: Vacuum Suction
Application: Electronic Packaging Items Feature: With 2 Working Stations
Raw Material: Waste Paper Pulp Product Height: <=150mm
Warranty: 1 Year After Installation Control By: PLC + Touchscreen
Output: 80-120kg/h Voltage: 220 V - 450 V
High Light:

150mm Pulp Tray Machine

,

120kg/h Pulp Tray Machine

,

PLC Pulp Tray equipment

Waste Paper Non Plastic Electronic Packaging Pulp Molding Tray Machine



Main Technical Data


Forming Machine Type BY010 pulp tray machine(can put multiple sets on the production line)
Brand NANYA
Raw Material Recycle paper/waste carton/newspaper
Forming Method Reciprocating Vacuum
Structure Double working stations, can make two different products at the same time
Mould Plate Size 800*600*2mm
Product Height <=150mm
Application Electronic protective package / paper trays / cup carrier / egg tray / fruit tray



Flow Chart Processes


 Pulping System The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
 Forming System With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically.
 Drying System

Natural drying or drying tunnel or single layer dryer as optional.

 Hot press system After dried, the products will be hot pressed to get a better shape and smoother surface.



Pulp Tray Machine Introduction


1. The machine is for making recyclable pulp molding electronic package items.

2. The products will drop on the collection table automatically.

3. This machine has two working stations, it can make two different types products at the same time. By changing moulds, the machine can make many types different products.

4. The pulp tank is made from SUS304 stainless steel, which is corrosion resistance.

5. PLC and touch screen controlled.

6. Multiple sets of forming machines can be matched in the production line to meet different capacity.

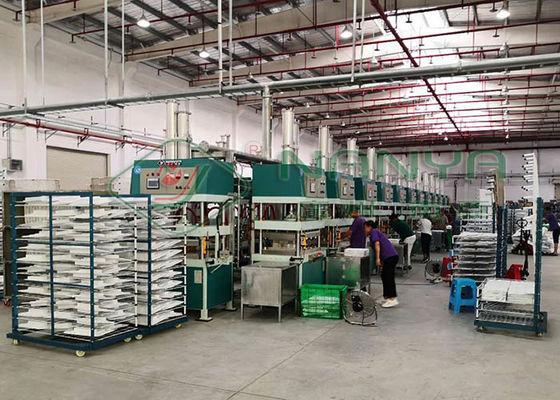

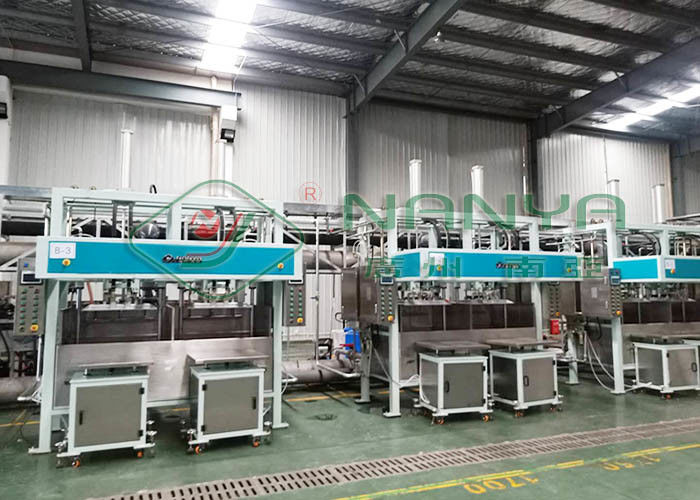

Paper Pulp Moulding Machine Picture


Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine 0



More Plate Dimension Choices


 CY010  Reciprocating -double cylinder with 800*600*2mm
 CY020  Reciprocating -double cylinder with 700*500*2mm
 CY030  Reciprocating -Single cylinder with 1000*660mm
 CY040  Reciprocating -Single cylinder with 1200*800mm
 CY050  Reciprocating -Single cylinder with 1600*800mm
 CY060  Reciprocating -Single cylinder with 2000*800mm
 CY070  Reciprocating -Single cylinder with 2400*800mm
 CY080  Reciprocating -Single cylinder with 1500*1300mm





YOUTUBE Video Link


https://www.youtube.com/watch?v=z9VKmZWBr5o

https://youtu.be/x_p4tUEdLhE

For more video, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



Product Show


1. Electronic protective package, like for TV, cooker, battery, air conditioner, car parts and other electrical items.

2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup

3. Disposable Medical Care Products, like kidney, bedpan, sick pad, urinal pan…

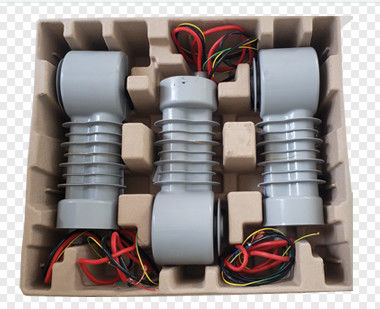

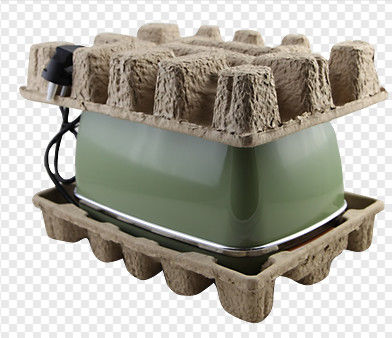

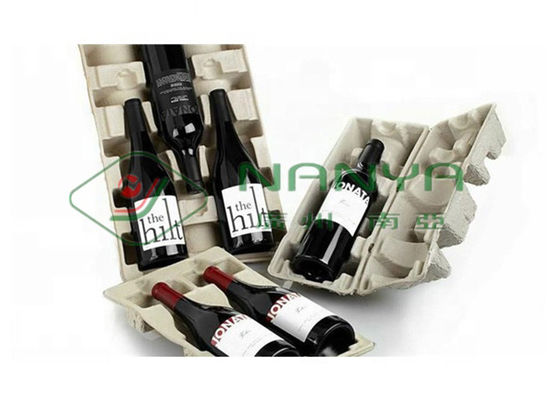

The below is some products made by this machine, by changing moulds, the machine can make different products.

Waste Paper Non Plastic Electronic Packaging Pulp Tray Machine 1



Why Choose NANYA Brand


1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.

3. Professional Team: trained professionals available for global installation & guidance.

4. Creative Solutions: customize best configurations as per your requirements.
