250kw Thermoforming Molded Pulp Machine For Finery Inner Package

250kw Thermoforming Molded Pulp Machine For Finery Inner Package

    • 250kw Thermoforming Molded Pulp Machine For Finery Inner Package
    • 250kw Thermoforming Molded Pulp Machine For Finery Inner Package
    • 250kw Thermoforming Molded Pulp Machine For Finery Inner Package
  • 250kw Thermoforming Molded Pulp Machine For Finery Inner Package

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: NANYA
    Certification: CE,TUV,SGS, ISO9001
    Model Number: HF-02

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 60-120 Days
    Payment Terms: T/T, L/C, Cash
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Name: Molded Pulp Machine Raw Material: Virgin Pulp, Bagasse Pulp, Wood Pulp...
    Capacity: 60kg/h Drying Type: Thermoforming Dry
    After-Sale Service: Engineers Available Overseas Applications: Finery Inner Package
    Heating Way: Electricity Or Thermo Oil Or Steam Warranty: 12 Months
    Voltage: Match Local Voltage Control By: PLC + Touchscreen
    High Light:

    250kw Thermoforming Molded Pulp Machine

    ,

    60kg/h Molded Pulp Machine

    250kw Thermoforming Molded Pulp Machine For Finery Inner Package

    Molded Pulp Machine Introduction:

    • The procedure of forming, drying and hot-press shaping be completed in one machine with high degree of automation.
    • Using international famous brand control accessories, the machine has reliable performance and low malfunction.

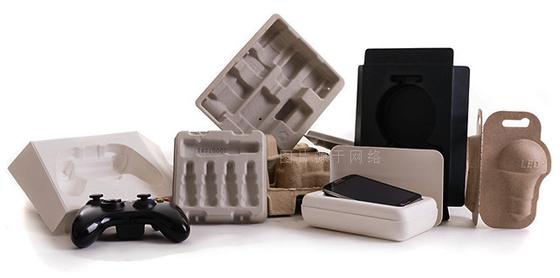

    • This is the thermoforming machine, the products will be dried and hot pressed in mould, this the density and strength would be higher, suitable for making cell phone box, cosmetic box, jewelry box and other finery surface inner package items.
    • It has wide range of application, and it can produce various specifications and different thickness of production by changing moulds.


    Molded Pulp Machine Specifications:

    Model

    HF-02 Molded Pulp Machine

    Forming Machine Structure 1 forming station+2hor press stations

    Capacity

    60kg/h

    Mould Plate Size

    1100*800mm or 800*650mm

    Heating Method

    Electricity Or Thermo Oil or Steam

    Workshop Requirement

    300 m2

    Power Installation

    250kw

    Material Consumption

    50~60kg/h

    Water Consumption

    150~200kg/h

    Workers Requirement

    4 persons

    Container Requirement for Shipment

    2 x 40’HQ

    The above specification is for reference only, for different capacity, we'll provide customized solution accordingly to specific requirements.



    Molded Pulp Machine Descriptions:

    • The machine makes sure each surface of product is smooth, which increases the value of the products. Besides, this kind of machine supports some special design printing, like company’s logo, which will certainly improves company’s image.
    • Products with high density and good strength and they won’t be out of shape.
    • With thin thickness, reduce the raw material. Easy package and piled, reduced transportation cost and improve economic benefits.
    • Less area of the workshop required.
    • Add some additives in the process to get special usability requirement. EG: waterproof, oil-proof, anti-static and etc.
    • The procedures of forming, drying and hot-press shaping are completed in one machine automatically.
    • By adopting the international famous brand controls, the machine performs reliably.


    Product Information & Our Warranty:

    • Fully Automatic Production Line for High-grade Pulp Molding Products
    • Mainly used for the products with various structures but in big quantity, such as high-grade packaging, craft products and decration, masks and inside industiral packaging for electronic devices and so on.
    • Status: 2020 Brand New
    • Product Type: Production line for high-grade molded pulp products
    • Processing Type: Molded Pulp Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type:HF-02
    • Voltage: 220V-440V Match local voltage


    Pulp Molding Machines Applications:

    Inner Industrial Package for

    Electrical Equipment,  for cell phone, laptop

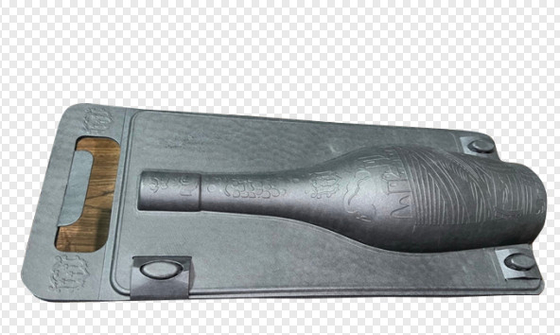

    For jewelre box, wine box, tea box

    Car Parts

    Lamp & Lanterns

    Shoe Tree

    Compressor of Air-condition

    Electronic Products

    Instrument

    Communication Apparatus

    250kw Thermoforming Molded Pulp Machine For Finery Inner Package 0


    Business Terms:

    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    60-120 days

    4

    Packages

    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.

    8

    Quotation Validity

    90 days after the offering date



    Why Choose NANYA?

    1. High efficient, low energy consume, have long using life.
    2. Easy to operate, low labor force cost, large output .
    3. Stable final product quality (same weight ,dimension, good look)
    4. Professional technical support, superior after-sales service.
    5. Medium investment, high profit.
