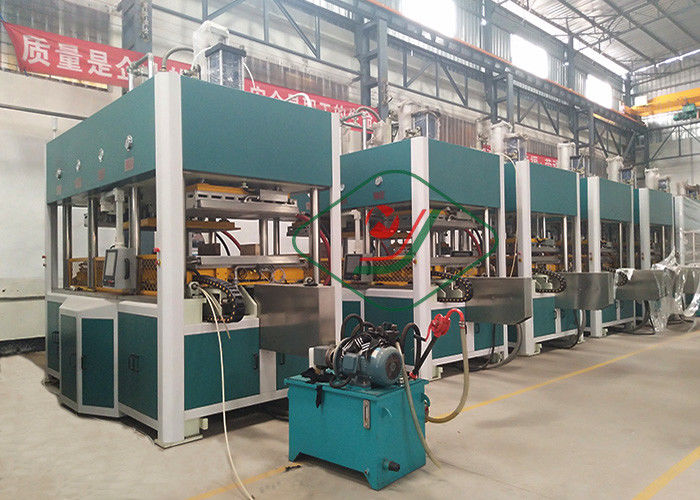

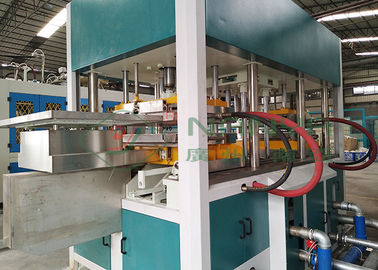

Molded Pulp Thermoforming Machine for High Quality Cellphone Box

Product Details:

Place of Origin:	China (mainland)
Brand Name:	NANYA
Certification:	CE
Model Number:	HF-05

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	60-120 Days
Payment Terms:	T/T, L/C, Cash, Western Union
Supply Ability:	1000 sets/year

Contact Now

Detailed Product Description

Name:	Molded Pulp Machine	Fuel:	Thermo Oil / Electricity
Capacity:	150kg/h	Forming Type:	Thermoforming
Warranty:	12 Months	Color:	Green
Raw Material:	Sugarcane Pulp	Application:	High Quality Packages
Highlight:	Pulp Molding Machines , Moulded Pulp Machine

Molded Pulp Thermoforming Machine for High Quality Cellphone Box

Molded Pulp Machine Specifications:

Model	HF- 05
Capacity	150kg/h
Main Machine Model & Quantity	YC011—5sets
Working Station	1 Forming Station and 2 Hot Press Stations
Mould Platen Size	1100*800mm
Material Consumption	120~140kg/h
Water Consumption	500~800kg/h
Workers Requirement	6 persons
Container Requirement for Shipment	4 x 40’HQ
Forming Type	Vacuum suction, thermoforming
Drying Method	Drying in mould

Molded Pulp Machine Descriptions:

This machine can apply to manufacture high quality pulp molding products, such as mobile phone box, make-up box, camera box, jewelry box and electronic products.
By changing moulds, the machines can make different shape of products.
The machine makes sure each surface of product is very smooth. Besides, this kind of machine supports some special design printing, like company’s logo or image.
Add some additives in the process to get water proofed or oil proofed performance.
Adopting the international famous brand controls, the machine performs smoothly and reliably.

Product Information & Our Warranty:

Processing Type: Pulping System-forming system-vacuum system-air compress system-edge trimming system
Place of origin: Guangdong, China
Brand: NANYA
Model Type:HF-05
Voltage: 220V-440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months after installation
After-Sale Service: Engineers available to service machinery overseas

Competitive Advantages:

Fully automatic
Energy saving and labor utilization
High quality production line machine for pulp molding products
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate

Molded Pulp Thermoforming Machine for High Quality Cellphone Box 0

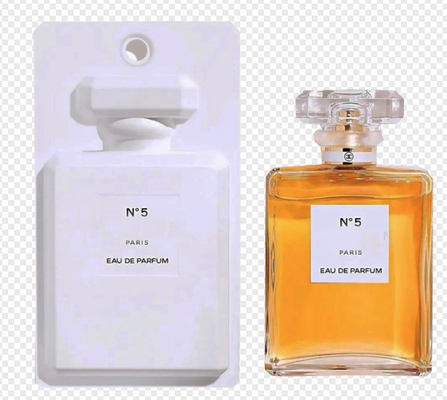

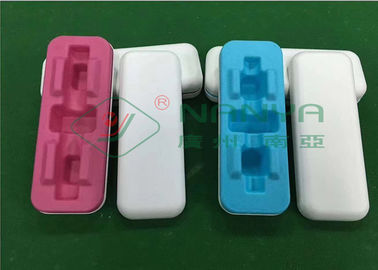

Applications:

Fine Electronic Packages	Mobile phone box
	Make-up box
	Camera box
	Jewelry box
	Electronic product
	Paper tableware
	Gift box
	Crafts
	3D ceiling panels

Working theory:

The track or worker carries the raw material into the conveyor ;
The conveyor pours down the raw material into the hydrapulper mixing with certain mater.
The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency. Next the pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably.
Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wire mesh of the mold with the effect of the vacuum. So the wet products are shaped and dried on the working platform.

YOUTUBE Video Link:

https://www.youtube.com/watch?v=SskObphnQZo
For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.
