Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure

Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure

    • Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure
    • Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure
    • Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure
  • Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE
    Model Number: ZC142

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30 days
    Payment Terms: T/T or western Union or L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Hot Press Machine Pressure: 50 Tons
    Applications: Fruit Tray, Coffee-cup Tray, Medical Tray... Automation: Automatic Packing
    Machine Dimension: 2750×1800×2500mm Electricity: 30KW
    Weight: 6700KG Warranty: 1 Year
    High Light:

    Paper Tray Forming Machine

    ,

    Tray Forming Equipment

    Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure




    Hot Press Mahcine Description​:


    This machine is named paper hot press machine, or after press machine.

    Hot press machine uses high temperature and high pressure to fix the shape of the paper tray products, to get more compact and smoother surface.

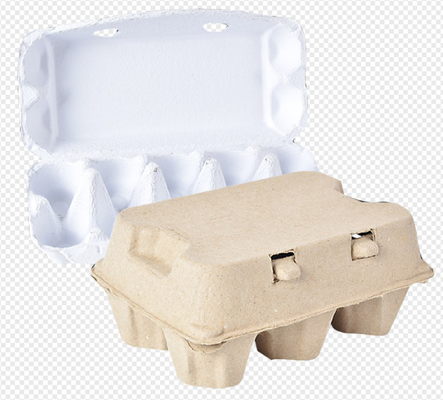

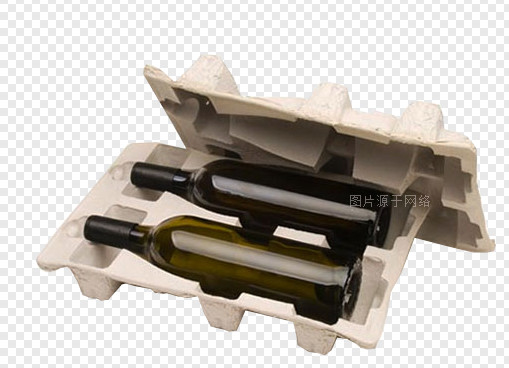

    They can hot press the different paper trays by changing molds, for example: paper egg tray, paper egg box, paper bottle tray, paper fruit tray, paper coffee tray, and so on, only the pulp products, and you can offer the sample, our machine can produce them.

    The maximum pressure of this machine is 50 tons, the temperature is from normal temperature to 200℃.



    Hot Press machine Infomation:


    1. Machine type: ZC142

    2. Mould platen size: 1100*700MM

    3. Electricity heating: 30KW

    4. Machine dimension: 2750×1800×2500MM

    5. Machine weight: 6700KG

    6. Automation: Automatic packing

    7. Application: all kinds of dry paper trays



    Hot Press Machine Working Principle:


    Principle Hot press machine
    Purpose To make the products' ppearance of products becomes more smooth and flat.
    Temperature Control From normal temperature~200℃, it is adjustable.
    Safety With infrared security devices of prevent top mould fall, safe to operate.
    Control Device Apply PLC control and touch screen, main electrical elements are SIMENS, more effective and trustable.
    Application For hot pressing the pulp molded products, such as egg tray, egg box, egg carton, industrial package.



    YOUTUBE Video Links:


    https://youtu.be/Gsc2hTq77rY
    https://youtu.be/GSf1pN9yQsI
    For more videos, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



    Many Choices for You:


    Pressure Including 3tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 100tons and 200tons.
    Driving Way Pneumatic, hydraulic and pneumatically/hydraulic can be selected.
    Heating Way electric heating or conduction oil heating
    Machine Design

    Our products support customized design.

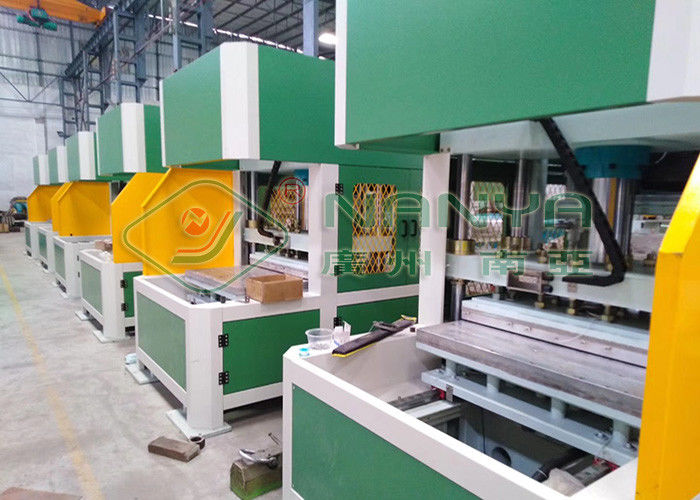

    Hot Press Machine Picture



    Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure 0
    Paper Tray Forming Equipment , Hot Press / After Press Machine 50 Ton Pressure 1
    Competitive Advantages:


    1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

    2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.

    3. Professional Team: trained professionals available for global installation & guidance.

    4. Creative Solutions: customize best configurations as per your requirements.



    Business Terms:


    1. Payment terms: 30% down payment; 70% balance payment;

    2. Delivery terms: FOB, CNF, CIF and etc;

    3. Package: Wooden box;

    4. Delivery time: 30days;

    5. Warranty: 12months.
