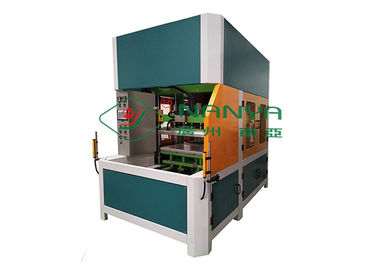

High Pressure After Press / Hot Press Tray Forming Machine with Infrared

High Pressure After Press / Hot Press Tray Forming Machine with Infrared

  • High Pressure After Press / Hot Press Tray Forming Machine with Infrared
  • High Pressure After Press / Hot Press Tray Forming Machine with Infrared
  • High Pressure After Press / Hot Press Tray Forming Machine with Infrared
  • High Pressure After Press / Hot Press Tray Forming Machine with Infrared
High Pressure After Press / Hot Press Tray Forming Machine with Infrared
Product Details:
Place of Origin: Guangdong China(Mainland)
Brand Name: NANYA
Certification: CE
Model Number: ZC142
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: After Press / Hot Press Machine Application: For Hot Press Paper Trays
Pressure: 50Tons(Adjustable) Color: Green( Can Be Customized)
Mould Plate: 1100*700mm Structure: Four- Guide Pillar
Control Way: PLC Control & Touch Screen Temperature: Normal Temperature To 200℃
High Light:

Tray Forming Machinery

,

Tray Forming Equipment

High Pressure After Press / Hot Press Machine Paper MoldingTrays with Infrared






Description of Hot Press Machine


1. Hot press machine uses high temperature and high pressure to fix the shape of the paper tray products, to get more compact and smoother surfaces.

2. The hot pressed items are the dry pulp molded products, such as egg carton, cup holder, shoe inserts, industrial package and etc.

3. The maximum pressure of this machine is 50 tons, the temperature is from normal temperature to 200.





Main Technical Parameters​


 Machine Name  After Press / Hot Press Machine
 Model Type  ZC142
 Trademark  NANYA
 Automation  Automatic
 Mould Platen Size  1100*700mm
 Electricity Heating  30KW
 Working Temperature  Normal Temperature to 200℃
 Machine Dimension  2750×1800×2500mm
 Machine Weight  6700kg





Main Advantages of This Hot Press Machine


1.With infrared security devices of prevent top mould fall, safe to operate.

2. With maximum 50 tons pressure, enough pressure to hot press products and ensure better smooth surface.

3. With 1100*700mm mould plate size, satisfy big size products for hot pressing.

4. With automatic stacking and counting system, products after hot press will drop, stack and count on the back of conveyor.





YOUTUBE Video Link


https://www.youtube.com/watch?v=Gsc2hTq77rY
For more videos, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.

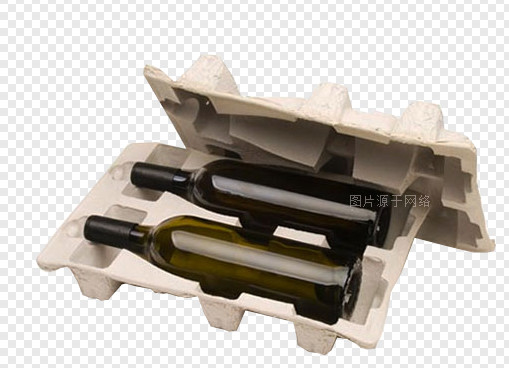

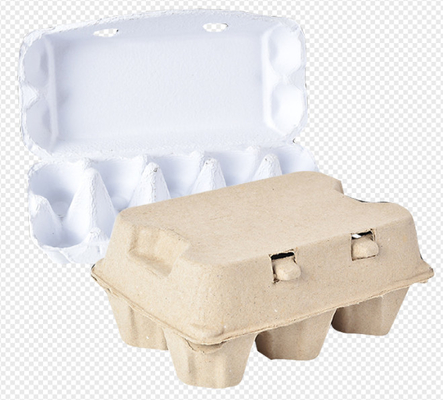

Products after Hot Pressing


High Pressure After Press / Hot Press Tray Forming Machine with Infrared 0
1. Except this egg box, by changing moulds, you can also hot pressing other products in the same machine, like egg trays, egg boxes, cup holders, shoe trays and industrial package items.
2. We have our mould process centre and professional mould design team; we will design and make moulds according to customers’ requirements.





Why Choose NANYA


1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.

3. Professional Team: trained professionals available for global installation & guidance.

4. Creative Solutions: customize best configurations as per your requirements.





Other  Models for Choice


 Pressure   Including 3tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 100tons and 200tons.
 Driving Way

 Pneumatic, hydraulic and pneumatically/hydraulic can be selected.

 Heating Way  Electric heating or conduction oil heating
 Machine Design

 Our products support customized design.





Business Terms


 Payment Terms  30% down payment before production; 70% balance payment before delivery.
 Delivery Terms  FOB Guangzhou, China. (CNF and CIF are also available.)
 Package  Wooden Box
 Delivery Time  30 days
 Warranty   12 months
 Installation  Overseas engineering service is available.
