Quality Product Is Our Passion; Service&Innnovation Is Our Mission.

|
| Place of Origin: | Guangdong China(Mainland) |
| Brand Name: | NANYA |
| Certification: | CE |
| Model Number: | ZC142 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, Cash or western Union |
| Supply Ability: | 50 sets per month |
| Product Name: | Hot Pressing Machine | Automation: | Automated |
|---|---|---|---|
| Mould Plate Size: | 1100*700mm | Power: | 30KW |
| Pressure: | 50Tons(Adjustable) | Weight: | 6700kg |
| Application: | Dry Pulp Molded Products | Warranty: | 12 Months |
| High Light: | Pulp Molding Production Line,Pulp Molding Machinery,Pulp Molded Hot Pressing Machine |
||

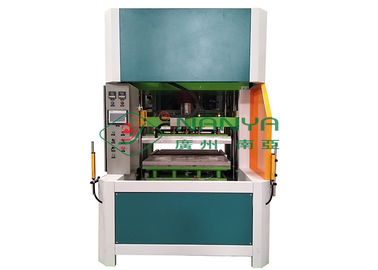

Automated Hydraulic Hot Pressing Machine for Dry Pulp Molded Products
Detailed Product Description
| Machine Name | Hot Pressing Machine |
| Model Type | ZC142 |
| Automatic degree | Automated |
| Mould Platen Size | 1100*700mm |
| Max Working Pressure | 50 tons |
| Electricity Heating | 30KW |
| Working Temperature | Normal Temperature to 200℃ |
| Machine Dimension | 2750×1800×2500mm |
| Machine Weight | 6700kg |
Introduction of Hot Pressing Machine
1. How it works: uses high temperature and high pressure to fix the shape of the paper tray products.
2. What's the Purpose: To make the products' surfaces becomes more compact and smoother.
3. Temperature Control: From normal temperature~200℃, it is adjustable.
4. How to Guarantee safety: With infrared security devices of prevent top mould fall, safe to operate.
5. How to control: Apply PLC control and touch screen, main electrical elements are SIMENS.
6. Usage: For hot pressing the dry pulp molded products, such as egg tray, egg box, cup holder, industrial package and etc.
More Models
| Pressure | Including 3tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 100tons and 200tons. |
| Driving Way |
Pneumatic, hydraulic and pneumatically/hydraulic can be selected. |
| Heating Way | Electric heating or conduction oil heating |
| Machine Design |
Our products support customized design. |

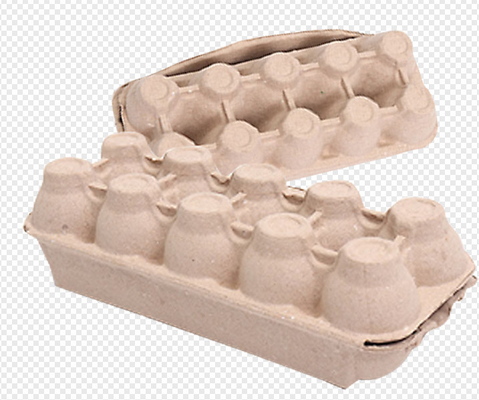

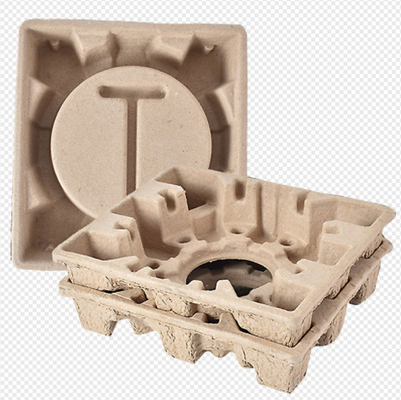

Products after Hot Pressing
 |
|
| 1. | Except this egg box, by changing moulds, you can also hot pressing other products in the same machine, like egg trays, egg boxes, cup holders, shoe trays and industrial package items. |
| 2. |
We have our mould process centre and professional mould design team; we will design and make moulds according to customers’ requirements. |
YOUTUBE Video Link
| https://www.youtube.com/watch?v=Gsc2hTq77rY | |
| For more videos, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us. |
Business Terms
1. Payment Terms: 30% down payment before production; 70% balance payment before delivery.
2. Delivery Terms: FOB Guangzhou, China. (CNF and CIF are also available.)
3. Delivery Time: 30 days.
4. Package: Wooden Case.
5. Warranty: 12 months.
6. Installation: Overseas engineering service is available.
Competitive Advantages
1. Rich Experience: Established in 1994, 30 years’ experiences in pulp molding machine manufacturing, already exported to over 50 countries and regions;
2. Advanced Technology: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
3. Aftersales Service: 1 lot of spare parts for hot press use by free. Operating manual, drawing, process diagram for all of the machine willl be offered. Operation and maintain method will be offered for the buyer’s worker after installation.
