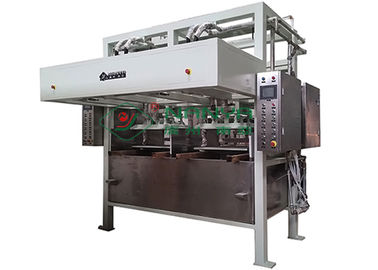

PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package

PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package

    • PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package
    • PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package
    • PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package
  • PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package

    Product Details:

    Place of Origin: Guangzhou, China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: BY010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: contact us and get the latest price
    Packaging Details: International Standard Shipping Package
    Delivery Time: Normally 45 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Equipment Capacity: 100~150 Kgs/h
    Forming Type: Reciprocating Vacuum Application: Recyclable Industrial Package
    Plate Size: 800*600*2mm Weight: 2 Ton
    Product Height: <=150mm Warranty: 12 Months
    High Light:

    Pulp Molding Production Line

    ,

    Pulp Molding Machinery

    Automatic Pulp Molding Equipment for Recyclable Industrial Package with CE






    Detailed Description about the Machine​


    1. The machine is for Recyclable pulp molding Industrial Package items.

    2. The products will drop on the product collection table automatically.

    3. This machine has two working stations, it can make two different types products at the same time. By changing moulds, the machine can make many types different products.

    4. The pulp tank is made from SUS304 stainless steel, which is corrosion resistance.

    5. PLC and touch screen controlled.

    6. Drive: bottom mould reciprocated drive by pneumatic, up mould forward-backward drive by pneumatic.

    7. The main Pneumatic parts brand: SMC/ARK. The main electronic parts brand: Siemens.





    Main Technical Data


     Product Name   Pulp Molding Equipment
     Machine Type  BY010
     Trademark  NANYA
     Raw Material   waste paper / waste carton / newspaper / books...
     Forming Method  Reciprocating Vacuum
     Structure  Double working stations
     Mould Plate Size 800*600*2mm
     Cycle Time 12~15s (for around 80grams). (For different product, the cycle may differ).
     Product Height  <=150mm
     Application  Recyclable Industrial Package
     Machine weight  2 Tons





    More Choices


     CY010  Reciprocating -double cylinder with 800*600*2mm
     CY020  Reciprocating -double cylinder with 700*500*2mm
     CY030  Reciprocating -Single cylinder with 1000*660mm
     CY040  Reciprocating -Single cylinder with 1200*800mm
     CY050  Reciprocating -Single cylinder with 1600*800mm
     CY060  Reciprocating -Single cylinder with 2000*800mm
     CY070  Reciprocating -Single cylinder with 2400*800mm
     CY080  Reciprocating -Single cylinder with 1500*1300mm





    How This Production Line Works


     Pulping System The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
     Forming System

    With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically.

     Drying System Metal drying line / sunshine drying / drying room
     Hot press system After dried, the products will be hot pressed to get a better shape and smoother surface.





    YOUTUBE Video Link


    https://www.youtube.com/watch?v=aZr_Z5UKLLY&t=35s



    For more video, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





    Product Show


    1. Recyclable Industrial Package, like for TV, cooker, battery, air conditioner, car parts and other electrical items.

    2. Egg tray/egg box/fruit tray/ 2 cup holder/ 4 cup holder / seeding cup

    3. Disposable Medical Care Products, like kidney, bedpan, sick pad, urinal pan…

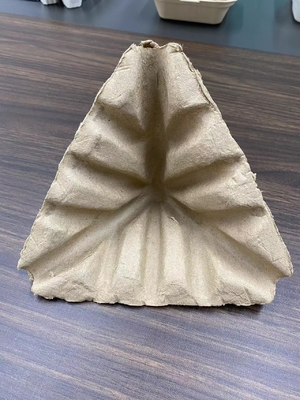

    The below is one type product made by this machine, by changing moulds, the machine can make different products.

    PLC Controlled Automatic Pulp Molding Machine For Recyclable Industrial Package 0





     Q&A


    1. What is the MOQ ?

    One set for our own available designs.



    2. How to choose a model?

    According to your requirement (like size and capacity), our professional engineer will help to make the model selection accordingly. And we also can provide the professional plant layout design for customers.



    3. What are the payment terms?

    T/T, L/C, D/P, D/A, Western Union, Money Gram, etc.



    4. Delivery term?

    Around 45 working days for a total production line from the payment date.



    5. Assembly and commissioning?

    We will assign our engineer for assembly and commissioning.
