Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons

Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons

  • Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons
  • Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons
  • Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons
  • Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons
Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: Hot-press Equipments
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45~75 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Hot-press Equipments Automation: Semiautomatic
Standard: CE/TUV/SGS/ISO9001 Voltage: 220 V - 450 V
After-sales Service: Engineers Available To Service Overseas Warranty: 12 Months
Applications: Egg Tray, Egg Carton, Medical Tray, Craftworks... Dimension: Support Customize
High Light:

paper pulp molding machinery

,

paper pulp moulding machine

Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons





Specifications:



Specifications

Nominal Pressure

Plate Size

Power

Working Temperature

Working Cycle

1ton(pneumatic)

10kn

560×430mm

6kw

80~180℃

6~60s

3tons(pneumatic/hydraulic)

30kn

600×430mm

6kw

80~180℃

6~60s

5tons(pneumatic/hydraulic)

50kn

650×450mm

7kw

80~180℃

6~60s

10tons(pneumatic/hydraulic)

100kn

700×500mm

7.6kw

80~180℃

6~60s

15tons(pneumatic/hydraulic)

150kn

700×500mm

7.6kw

80~180℃

6~60s

20tons(pneumatic/hydraulic)

200kn

700×500mm

7.6kw

80~180℃

6~60s

20tons(hydraulic)

200kn

1000×700mm

20kw

80~180℃

6~60s

100tons(hydraulic)

1000kn

1000×700mm

60kw

80~180℃

6~60s

Other special specification can be customized according to clients’ requirement.





Descriptions:

  • Hot-press machine uses high temperature and high press to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat.
  • Our series of hot-press machines include various specifications, including 3tons, 5tons, 10tons, 15tons, 20tons, 30tons, 100tons and 200tons. And our products support customized design.
  • Pneumatic, hydraulic and pneumatically/hydraulic can be selected. And it has different heating mode of electric heating, conduction oil heating.
  • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: Hot-press Equipments
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Voltage: 220V - 440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas



Applications:

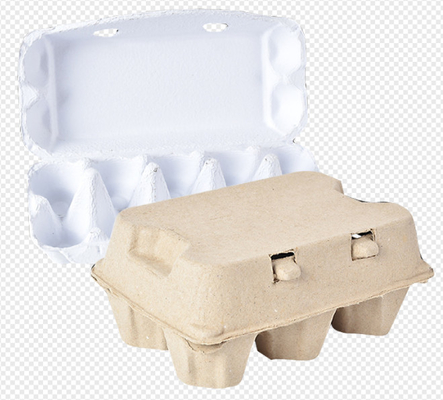

Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Semiautomatic Paper Pulp Molding Hot Press Machine / 1-100Tons 0





Competitive Advantages:

  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
  • The standing director of Chinese packaging association



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
