Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty

Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty

  • Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty
  • Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty
  • Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty
Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty
Product Details:
Place of Origin: Guangzhou China
Brand Name: NANYA
Certification: CE/TUV/SGS/ISO9001
Model Number: ZC140
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Hot Pressing Machine Automation: Automatic
Mould Plate Size: 850*500mm Working Cycle: 8~12S
Working Pressure: 20Tons Weight: 3500kg
Applications: Egg Box, Cup-holder, Medical Tray, Craftworks... Dimension: 2560×1630×2450mm
High Light:

Pulp Molding Production Line

,

Pulp Molding Machinery

Automatic Hot Press Machine / Pulp Molding Hot Pressing Machine for Egg Carton





Specifications:



Machine Model ZC140
Machine Name Pulp Molding Hot Pressing Machine
Automation  Automatic
Mould Plate Size 850*500mm
Working Pressure 20tons
Gas-liquid Pressure Cylinder 120*250mm
Electricity Heating 12kw
Working Temperature 160~200℃
Working Cycle 8~12s
Compressed Air Required 0.5~0.6Mpa, 1m3/min
Physical Dimension 2560×1630×2540mm
Weight 3000kg
Other special specification can be customized according to clients’ requirement.





Descriptions:

  • Hot-press machine uses high temperature (160~200℃) and high press (20tons) to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat;
  • The working temperature is 160~200℃, but it can be adjustable(after setting the temperature, the constant temperature will be automatically regulated);
  • Lifting cylinder in upper die: φ120x250mm, with rotary encoder, the rebound height is adjustable;
  • The upper and lower templates have independent vacuum/ blowing function, and each template is divided into three independent chambers;
  • The products are automatically blow down to the transfer belt, stacking and counting. When reaching the numbers previously set, the finished products are sent out by belt;





Many Choices for You:

  • Our series of hot-press machines include various specifications, including 3tons, 5tons, 10tons, 15tons, 20tons, 30tons, 100tons and 200tons.
  • And our products support customized design.
  • Pneumatic, hydraulic and pneumatically/hydraulic can be selected.
  • And it has different heating mode of electric heating, conduction oil heating.





Machine Glance:



Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty 0





YOUTUBE Link:



https://www.youtube.com/watch?v=Gsc2hTq77rY





Applications:



Egg tray

20,30,40packed egg tray…  quail egg tray

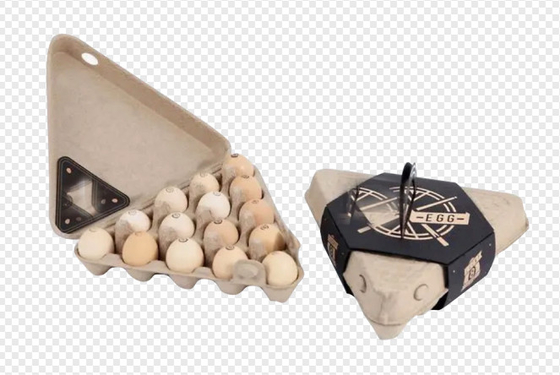

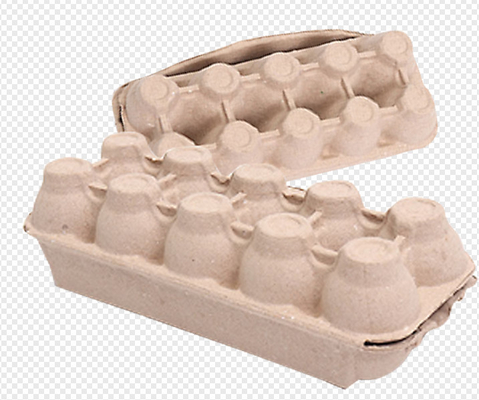

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Automatic Hot Press Pulp Molding Equipment For Egg Carton 12 Month Warranty 1





Competitive Advantages:

  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
  • The standing director of Chinese packaging association





Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

30 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
