Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery

Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery

    • Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery
    • Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery
    • Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery
  • Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery

    Product Details:

    Place of Origin: Guangong, China
    Brand Name: NANYA
    Certification: CE
    Model Number: ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45-75 Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Egg Tray Making Machinery Capacity: 6000Pcs / H
    Drying Type: Hot Air Dry Raw Material: Waste Paper / Waste Carton / Newspaper
    Forming Type: Vacuum Suction Installation: Engineers Oversea Available
    Applicationa: Egg Tray, Egg Clamshell, Fruit Tray... Warranty: 12 Months

    Automatic Waste Paper Pulp Molded Egg Tray / Egg Clamshell Molding Machinery


    Specifications:


    Model Type

    ER6000-B

    Capacity

    6000 pcs/hour

    Workshop Requirement

    700 m2

    Electricity Consumption

    ~210 kw

    Electricity Installed

    350 kw

    Material Consumption

    360~400 kg/h

    Water Consumption

    1200~1400 kg/h

    Worker Requirement

    5~6 persons

    Container Requirement for Shipment

    9 x 40 HQ

    Forming Machine (Rotary Type)

    Rotary type with 8 plates. Each for 6 pcs/time

    Drying Line

    22x3.4x4m  6-Layers

    Remarks:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



    Descriptions:


    • It’s a fully automatic egg tray production line with high automation.
    • This type of production line consist of a hydrapulper system, a rotary type forming machine, a six-layer dryer, a vacuum system, an air compressor, and auxiliary equipments.
    • The forming machine is the rotary type, with 8 faces forming moulds, and 6pcs/h per time.
    • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
    • The raw material is the waste paper, waste carton, newsaper, books, magazine, and etc.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts, PLC touch screen.

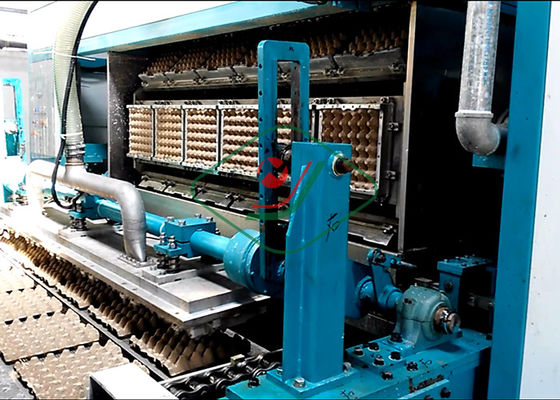

    Rotary Egg Tray Production Line:


    • The full automatic rotary forming machine equipped with drying line is for large production capacity, producing egg tray, egg carton, egg box clamshell, fruit tray, coffee cup tray, medical tray, etc.

    • There are several kinds of specification of the rotary forming machine type of 2 face platens, 6 face platens with single layer drying line and multi-layer drying line for choice.

    • The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.

    • The full automatic rotary machine line 2000pcs/hr, 3000pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, 8000pcs/hr etc for choice, based on the egg tray for reference.

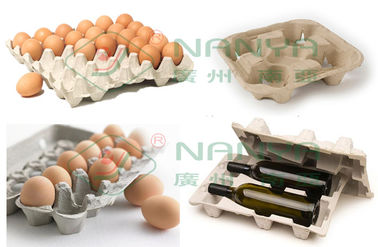

    Applications:


    Egg tray

    20,30,40packed egg tray…  quail egg tray

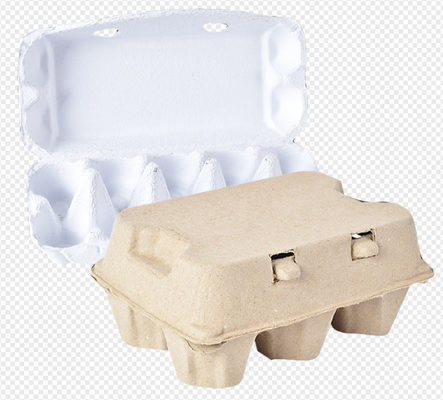

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…

    Automatic Waste Paper Pulp Molded Egg Tray Machine Egg Clamshell Molding Machinery



    YOUTUBE Links:

    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s

    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M

    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk

    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM

    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4

    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.




    Competitive Advantages:


    • Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;
    • Cooperate with high and new technology with government institution and South China University of Technology, with our own patents;
    • NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, we also have our own mold processing centre.
    • NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
    • Excellent engineers, sales and after sales service team offer the best service to ensure long-term satisfied service for our customers.



    Business Terms


    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
