High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H

High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H

    • High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H
    • High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H
    • High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H
    • High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H
  • High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H

    Product Details:

    Place of Origin: China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45-75 Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Egg Tray Machine Capacity: 6000Pcs / H
    Drying Type: Hot Air Dry Raw Material: Waste Paper / Waste Carton / Newspaper Etc
    Forming Type: Vacuum Suction After-sales Service Provided: Engineers Overseas Available
    Applicationa: Egg Tray, Egg Carton, Fruit Tray, Medical Tray Warranty: 1 Year

    High Efficiency Recycled Paper Egg Tray / Egg Carton Making Machine with 6000 Pcs/H





    Descriptions:



    • It’s a fully automatic egg tray production line with high automation.

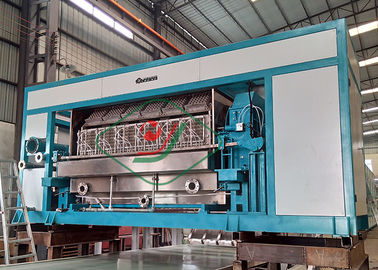

    • This type of production line consist of a hydrapulper system, a rotary type forming machine, a six-layer dryer, a vacuum system, an air compressor, and auxiliary equipments.
    • The forming machine is the rotary type, with 8 faces forming moulds, and 6pcs/h per time.
    • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
    • The raw material is the waste paper, waste carton, newsaper, books, magazine, and etc.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts, PLC touch screen.





    Specifications:



    Model Type

    ER6000-B

    Capacity

    6000 pcs/hour

    Workshop Requirement

    700 m2

    Electricity Consumption

    ~210 kw

    Electricity Installed

    350 kw

    Material Consumption

    360~400 kg/h

    Water Consumption

    1200~1400 kg/h

    Worker Requirement

    5~6 persons

    Container Requirement for Shipment

    9 x 40 HQ

    Forming Machine (Rotary Type)

    Rotary type with 8 plates. Each for 6 pcs/time

    Drying Line

    22x3.4x4m  6-Layers

    Remarks:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





    Production Information and Our Warranty:



    • Status: Brand new
    • Product Type: Egg Tray Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong, China
    • Brand: NANYA
    • Model Type: ER6000-B
    • Voltage: 220V - 450V (depend on customer's power requirement)
    • Capacity: 6000 pcs/h
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 1 year
    • After-Sale Service: Engineers available to service machinery overseas

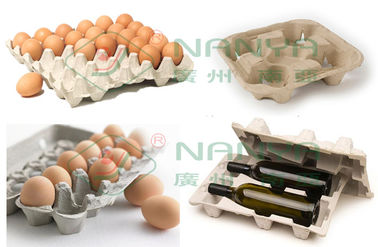

    Applications:

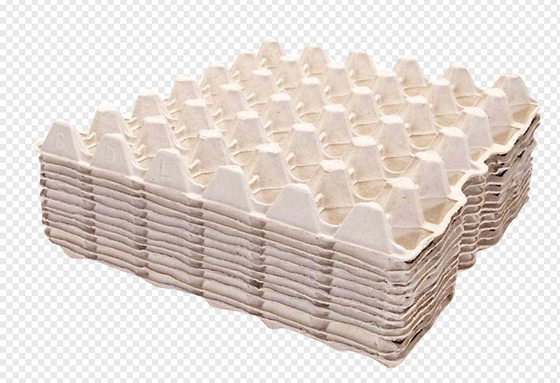

    Egg tray

    20,30,40 cells egg tray…  quail egg tray

    Egg carton

    6, 10,12,15,18,24 cells egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup holder

    2, 4 cup holder

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…

    High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H

    High Efficiency Recycled Paper Egg Tray Machine / Egg Carton Making Machine with 6000 Pcs/H





    Working Theory:



    • The track or worker carries the raw material into the hydrapulper firstly;
    • Then hydrapulper mixing the raw material with certain mater;
    • Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
    • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
    • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum.
    • Finally the wet products will move into the drying line automatically. Then the dried products will go into stacker and get packed.





    YOUTUBE Links:



    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4







    NANYA Advantages:



    • Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;
    • Combined with high and new technology with government institution and South China University of Technology and Guangdong University of Technology, with over 30 R&D personnel;
    • NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
    • NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
    • Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.

    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.

    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.

    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
