20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks

20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks

    • 20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks
    • 20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks
    • 20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks
  • 20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ZC140

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Hot -press Equipment / Hot Pressing Machine Automation: Automatic
    Mould Plate Size: 850*500mm Working Cycle: 8~12S
    Working Pressure: 20 Tons Weight: 3500kg
    Applications: Egg Box, Cup-holder, Medical Tray, Craftworks... Dimension: 2560×1630×2450mm

    20 Tons Automatic Egg Box / Paper Tray Hot -press Equipment / Hot Pressing Machine



    Descriptions:

    • Hot-press machine uses high temperature (160~200℃) and high press (20tons) to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat;
    • The working temperature is 160~200℃, but it can be adjustable(after setting the temperature, the constant temperature will be automatically regulated);
    • Lifting cylinder in upper die: φ120x250mm, with rotary encoder, the rebound height is adjustable;
    • The upper and lower templates have independent vacuum/ blowing function, and each template is divided into three independent chambers;
    • The products are automatically blow down to the transfer belt, stacking and counting. When reaching the numbers previously set, the finished products are sent out by belt;



    Specifications:



    Machine Model ZC140
    Machine Name Hot -press Equipment / Hot Pressing Machine
    Automation  Automatic
    Mould Plate Size 850*500mm
    Working Pressure 20tons
    Gas-liquid Pressure Cylinder 120*250mm
    Electricity Heating 12kw
    Working Temperature 160~200℃
    Working Cycle 8~12s
    Compressed Air Required 0.5~0.6Mpa, 1m3/min
    Physical Dimension 2560×1630×2540mm
    Weight 3000kg
    Other special specification can be customized according to clients’ requirement.









    Production Information and Our Warranty:

    • Status: Brand New
    • Product Type: Hot -press Equipment / Hot Pressing Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Voltage: 220V - 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas











    Machine Glance:



    20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks





    YOUTUBE Link:



    https://www.youtube.com/watch?v=Gsc2hTq77rY





    Applications:



    Egg tray

    20,30,40packed egg tray…  quail egg tray

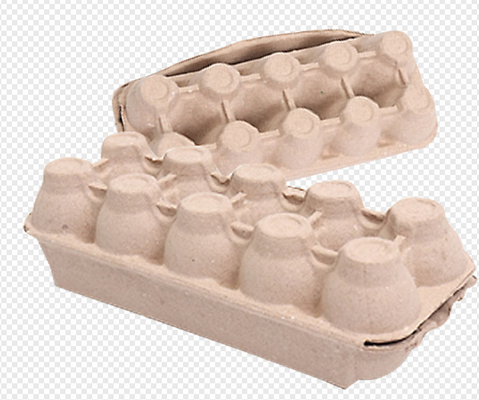

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

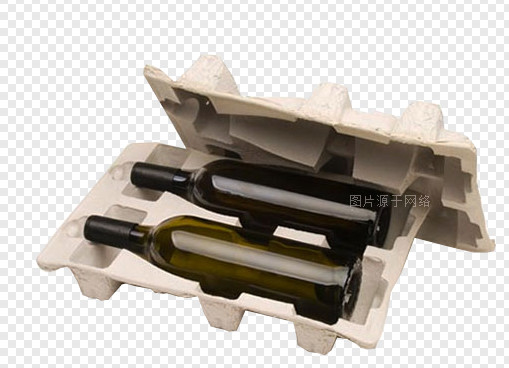

    packages

    Shoe tree, industrial package…

    20 Tons Automatic Egg Box / Paper Tray Forming Machine Hot Press For Craftworks





    Competitive Advantages:

    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
    • The standing director of Chinese packaging association





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    30 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
