Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays

    • Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays
    • Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays
    • Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays
  • Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays

    Product Details:

    Place of Origin: Guangdong China(Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ZC090

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Hot-press Machine Capacity: 20 Tons
    Applications: Industrial Packaging Trays/egg Box/ Shoe Insert... Dimension: 1600×1300×2600mm
    Weight: 2500kg Electricity: 12KW
    Working Cycle: 8~15 Seconds Working Temperature: 160~200℃(Adjustable)

    Semi Automatic Hot-press Tray Machine for Molding Industrial Packaging Trays



    Specifications:


    Product Name

    Hot-press Machine

    Product Model

    ZC090

    Working Pressure

    20tons

    Power Consumption

    12kw

    Hot Pressing Temperature

    Normal temperature~200℃ (adjustable)

    Automation Degree Semi Automatic

    Working Cycle

    8~15seconds (Adjustable)

    Compressed air required

    0.5~0.6MPa, 1M3/min

    Mould Plate size

    1100×400mm

    Machine Dimension

    1600×1300×2600mm

    Weight

    2500KG




    Descriptions:


    1. Hot-press machine uses high temperature (160~200℃) and high press (20tons) to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat;

    2. The working temperature is 160~200℃, but it can be adjustable(after setting the temperature, the constant temperature will be automatically regulated);

    3. Bottom mould move out for loading products; Finished products be sent to the backside of the machine automatically;

    4. With function of top mould and bottom mould blowing & vacuum;

    5. PLC + touch screen control. Main electrical elements are Siemens;





    YOUTUBE Links:


    Hot -pressing Machine with 50 tons http://https://youtu.be/Gsc2hTq77rY
    Hot -pressing Machine with 25 tons https://youtu.be/YoJCllH-qgM
    Hot -pressing Machine with 20 tons https://www.youtube.com/watch?v=jvst_bU77HM
    Hot -pressing Machine with 5 tons https://www.youtube.com/watch?v=llfE-H9eEtY
    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.




    Applications:

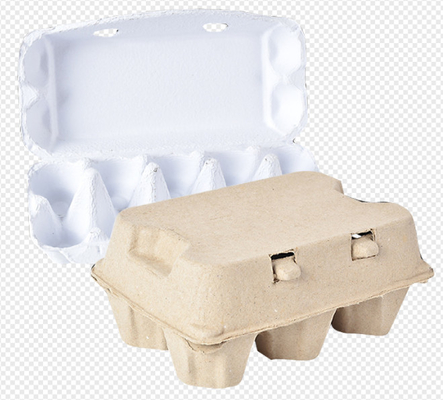

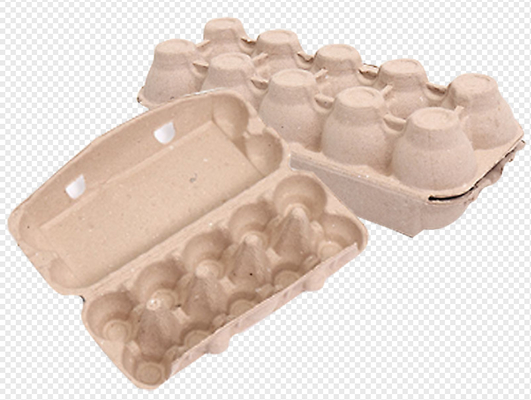

    By changing moulds, this hot press machine can hot press egg trays, egg boxes, cup holders, shoe trays and industrial package items. The machine is the same, just different moulds.

    Take this mould platen size 1100*400mm as example, it can install three 30 cells egg tray mould OR three 12 cells egg box mould OR 10 cells egg box mould OR six 6 cells egg box moulds.

    The below are the kidney trays after hot pressed:

    Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays




    Business Terms:


    1. Payment Terms: 30% down payment before production; 70% balance payment before delivery.

    2. Delivery Terms: FOB Guangzhou, China. (CNF and CIF are also available.)

    3. Delivery Time: 30 days.

    4. Package: Wooden Case.

    5. Warranty: 12 months.

    6. Installation: Overseas engineering service is available. But for hot-press machine, most of customers will choose manuals and video conference support.

    7. Aftersales Service: Will send some spare parts for hot press use by free.Will provide operating manual, drawing, process diagram. Conference video guidance available.

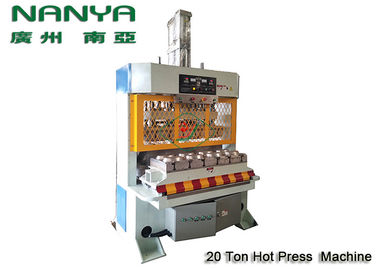

    Hot-press Machine Picture:


    Semi Automatic Hot - Press Machine For Molding Industrial Packaging Trays
