Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays

Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays

    • Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays
    • Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays
    • Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays
    • Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays
  • Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays

    Product Details:

    Place of Origin: Guangdong China(Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ZC043

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Hot-Pressing Machine Automation: Semi-automatic
    Platen Size: 700*500mm Working Pressure: 25 Tons
    Working Cycle: 8~15S Applications: Paper Tray, Industrial Packig Trays, Egg Box...
    Driving: Hydraulic Electricity: 10KW
    Dimension: 1550*1500*2520mm Weight: 2500kg

    Hot-Pressing Machine Shaping Pulp Molding Machine For Industrial Packing Trays




    Detailed Product Information​:


    Machine Type Hot-Pressing Machine
    Model ZC043
    Automatic degree Semi Automatic
    Mould Platen Size 700*500mm
    Working Pressure Working Pressure
    Working Temperature Normal Temperature to 200℃
    Working Cycle 8~15 seconds
    Dimension 1550*1500*2520mm
    Weight 2500kg





    Working Theory:


    Theory Hot-pressing machine uses high temperature and high pressure to fix the shape of the paper tray products.
    Purpose To make the products' ppearance of products becomes more smooth and flat.
    Temperature Control From normal temperature~200℃, it is adjustable.
    Safety With infrared security devices of prevent top mould fall, safe to operate.
    Control Device Apply PLC control and touch screen, main electrical elements are SIMENS, more effective and trustable.
    Application For hot pressing the pulp molded products, such as egg tray, egg box, egg carton, industrial packing items.





    Competitive Advantages:


    1. Quality Guarantee: Professional pulp molding machine making experience, we set up in 1994 and we have over 20 years' experience.

    2. Technical Guidance: overs engineering service is available. And we also support video conference support.

    3. Good Price: We are the factory and we make the machines. The price offered by us is quite honest and fair.

    4. Good Service: We will reply your enquiry and questions within 24 hours.

    5. Mould suppurt: We have our mould procssing centre, we can make mould according to your products and match the hot press machine.

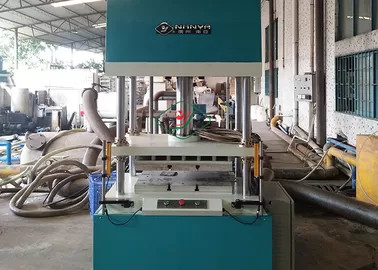

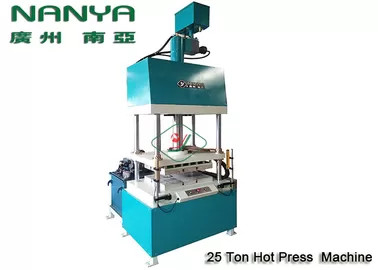

    Machine Glance:


    Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays





    Products after Hot Pressing:


    Hot - Pressing Shaping Paper Pulp Molding Machine For Industrial Packing Trays

    Except these products, by changing moulds, you can also hot press other products in the same machine, like egg trays, egg boxes, cup holders, shoe trays and industrial package items.





    YOUTUBE Links:


    Hot -pressing Machine with 25 tons https://youtu.be/YoJCllH-qgM
    Hot -pressing Machine with 50 tons https://youtu.be/Gsc2hTq77rY
    Hot -pressing Machine with 20 tons https://www.youtube.com/watch?v=jvst_bU77HM
    Hot -pressing Machine with 5 tons https://www.youtube.com/watch?v=llfE-H9eEtY
    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





    Business Terms:


    Payment Terms 30% down payment before production; 70% balance payment before delivery.
    Delivery Terms FOB Guangzhou or shenzhen, China. (CNF and CIF also available.)
    Delivery Time 30 days
    Package Wooden Case or nude package
    Installation Overseas engineering service is available. But for hot-press machine, most of customers will choose manuals and video conference support.
    Aftersales Service

    We will send some spare parts for hot press use by free;

    And we will provide operating manual, drawing, process diagram for all of the machine;

    We will instruct the operation, maintain method for the buyer’s worker after installation;

    Video conference guidance available.
