Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment

Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment

    • Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment
    • Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment
    • Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment
  • Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment

    Product Details:

    Place of Origin: Guangdong, China(Mainland)
    Brand Name: Nanya
    Certification: CE
    Model Number: TS01 ~ TS10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Paper Pulp Moulding Machine Molding Type: Dry In Mould
    After-sales Service: Engineers Overseas Available Warranty: 12 Months
    Type: Electronic Heating Source: Electricity Or Thermo-oil
    Power: Depends On The Final Capacity Material: Stainless
    High Light:

    paper pulp moulding machine

    ,

    disposable paper plates making machine

    Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment



    Paper Pulp Moulding Machine Description:



    • Take clean virgin paper as raw material, such bagasse pulp, bamboo pulp, straw pulp, reed pulp and etc.
    • The forming machine complete the forming, drying and hot-press shaping procedures, but needs labor transfer.
    • Application: Compostable tableware, food trays, cup holder, simple industrial package, etc.
    • The products made by our machines are food grade and environmental friendly.



    Paper Pulp Moulding Machine Specifications:



    Automation Model Mould Size Pressure Capacity / Set Robot Match
    Semi Automatic BY010 900*600mm 20ton 15~20kg/h Manual operation / Match Robot
    BY040 1100*800mm 40ton 30~35kg/h Manual operation / Match Robot
    BY050 1000*950mm 40ton 30~35kg/h Match Robot
    The capacity will depend on the quantity of forming machines.





    Paper Pulp Moulding Machine Main Features:



     Heating Way  Electricity or thermo conduction oil
     Forming Type  Vacuum suction, thermoforming
     Drying Method  Drying in mould
     Water Proof   Add water proof chemical (AKD) ; food grade
     Oil Proof  Add oil  proof chemical  ; food grade
     Semi Automatic  Flexible for various products but small capacity

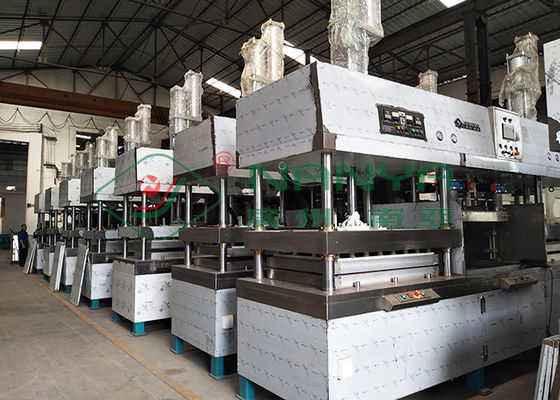

    Paper Pulp Moulding Machine Picture:



    Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment





    How the Production Line Works:



    Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.



    Forming and Drying System: When adjusting the pulp consistency, the pulp will go to the forming machine. Products will be formed on the moulds. Then needs labor to transfer products on heating hot press moulds.



    Vacuum System: Supply vacuum for forming machine.



    Air Compressor System: Supply compressed air for forming machine.



    Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.



    Disinfect System: UV or microwave disfect, then go to package.





    YOUTUBE Links:



     Semi Automatic Tableware Production Line  http://Paper Pulp Moulding Machine
     For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and subscribe us.





    Applications:



    1. Compostable tableware, food trays, cup holder, simple industrial package, etc.
    2. For jewelre box, phone box, wine box, tea box, makeup box;
    3. For high-grade electronics products, tools, hardware etc and etc

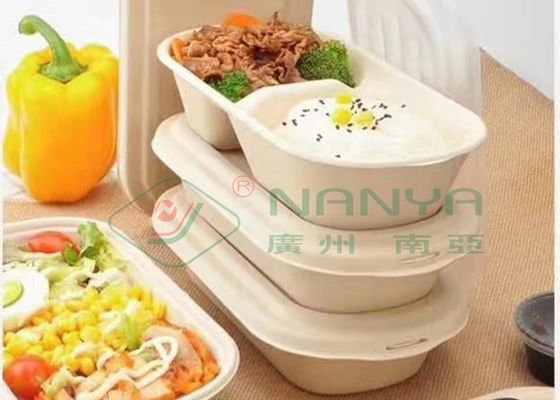

    The below are products made by our machines, by changing moulds, the machine can make different products.



    Electronic Paper Pulp Moulding Machine , Pulp Molding Tableware Equipment





    Why NANYA is Your Best Choice?



    Rich Experience: Established in 1994, With over 20 years of experience, we will make quotation and analysis based on customer’s investment and capacity.

    Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    Quality Guarantee: Life-long service, sustainable supply and upgrade of parts and components, One-year warranty( three-year warranty for mechanical parts and main machine)

    Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 50 countries and regions;

    Strong Teams: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.



    Business Terms:



     Delivery Terms  FOB Guangzhou or Shenzhen, China. (CNF and CIF are also available.)
     Delivery Time  45~75 days
     Package  Export Standard Packing
     Warranty  12 months
     Installation

     We will appoint 1 or 2 engineers to instruct buyer in installation, test-run and training.

     Quotation Validity  90 days after the offering date
    Aftersales Service  We will send some spare parts by free. And we will provide  operating manual, drawing, process diagram for all of the machine. We will instruct  the operation, maintain method for the buyer’s worker after installation.
