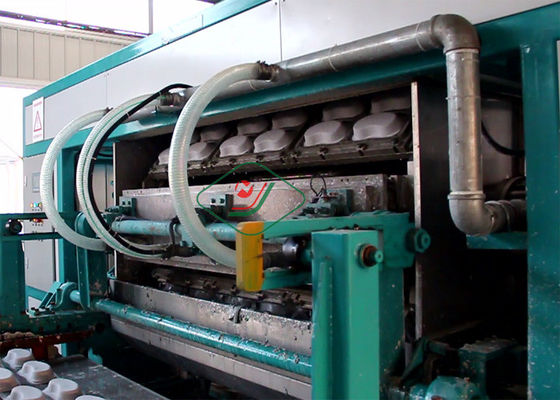

High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery

High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery

    • High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery
    • High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery
    • High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery
    • High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery
  • High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery

    Product Details:

    Place of Origin: Guangong, China
    Brand Name: NANYA
    Certification: CE
    Model Number: ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 100~120 Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 Sets Per Year
    Contact Now
    Detailed Product Description
    Product Name: Egg Tray Making Machinery Capacity: 6000Pcs / H
    Drying Type: Hot Air Dry Raw Material: Waste Paper / Waste Carton / Newspaper
    Forming Type: Rotary Vacuum Suction Installation: Engineers Oversea Available
    Applicationa: Egg Tray, Medical Tray, Fruit Tray... Warranty: 12 Months

    High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery


    Specifications:



     Model Type  ER6000-B
     Capacity  6000 pcs/hour (for 30-packed egg tray,around 65g~70g)
     Workshop Required  700 m for reference only and can be adjusted accordingly
     Electricity Consumption  ~210 kw (350 kw for installed)
     Material Consumption  360~400 kg/h
     Water Consumption  1200~1400 kg/h
     Operator Required  5~6 persons / shift
     Container Required for Shipment  9 x 40 High Cube Container
     Forming Machine (Rotary Type)  Rotary type with 8 plates. Each for 6 pcs/time
     Drying Line  22x3.4x4m 6-Layers metal dryer




    Descriptions:



    This is a Fully Automatic Egg Tray Production Line, with high automation and save lobor.

    This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a multiple-layer drying line, and corollary equipments.

    Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, egg boxes, cup carriers and disposable medical care products and etc.

    The raw material is the waste paper, waste carton, used paper, books, magazines and etc.

    SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.




    Picture of Multi Layer Dryer:



    High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery





    How the Production Line Works:



    Pulping System: Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.



    Forming System: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.



    Drying System: After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.



    Stacking & Packing System: After dried, the products will go to package. Court the number of the dried products, sperate them and stack them up.





    Applications:



    1. Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;
    2. Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;
    3. Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items
    4. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

    The below is one type of medical trays made by our machine, by changing moulds, the machine can make different products.

    High Capacity Rotary Paper Egg Tray / Medical Tray Making Machinery



    YOUTUBE Links:


     4000pcs/h with 6 layers dryer   https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s
     6000pcs/h with 6 layers dryer  https://www.youtube.com/watch?v=YIeLPQnwO4M
     3000pcs/h with single layer dryer  https://www.youtube.com/watch?v=CX9NgjBZ0Nk
     4000pcs/h with single layer dryer  https://www.youtube.com/watch?v=JCu3xNpnCsM
     6000pcs/h with single layer dryer  https://www.youtube.com/watch?v=9XpyL-ggwi4
     For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and  subscribe us.




    Business Terms:



    Payment Terms 30% down payment before production; 70% balance payment before delivery.
    Delivery Terms FOB Guangzhou, China. (CNF and CIF are also available.)
    Delivery Time 100~120 days
    Package Export Standard Packing
    Warranty 12 months
    Installation Overseas engineering service is available
    Quotation Validity 90 days after the offering date
    Aftersales Service We will send some spare parts for hot press use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation.





    Competitive Advantages:



    Rich Experience: Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;

    Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    Mould Making Experience: NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;

    Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 50 countries and regions;

    Strong Teams: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.
