Fully Automated Bagasse Pulp Tableware Machinery In Wood Pulp

Product Details:

Place of Origin:	China
Brand Name:	NANYA
Certification:	CE...
Model Number:	BY043

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD200000
Delivery Time:	45-75 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100+

Contact Now

Detailed Product Description

Raw Material:

Bagasse Pulp, Wood Pulp, Straw Pulp, Bamboo Pulp...

Forming Type:

Vacuum Suction&thermal Forming

Capacity:

1800~10000 Pcs/Hour

After Sales Service:

Engineers On-site Guide Installation

Highlight:

bagasse pulp tableware machinery

Fully automated bagasse pulp tableware machinery

China bagasse pulp tableware machinery

Efficiency Automatic Paper Pulp Tableware Thermoforming Machine with Siemens

Description

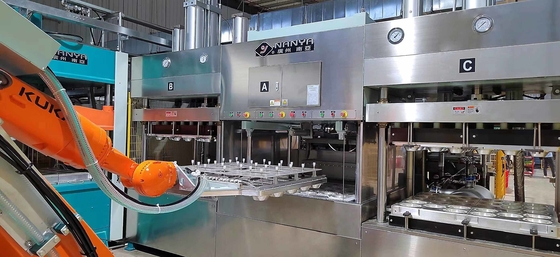

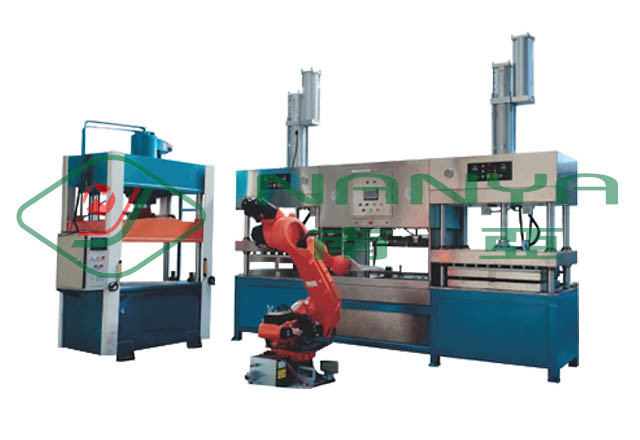

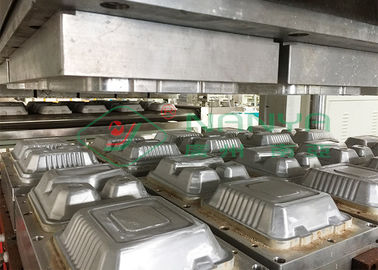

BY series automatic tableware production line is composed of pulping system, molding system, vacuum system, high pressure water system and air pressure system. Using sugarcane pulp, bamboo pulp, wood pulp, reed pulp, straw pulp and other pulp boards as raw materials, it can produce disposable pulp molded tableware. The raw material is prepared into a certain concentration of pulp by the process of shredding, grinding, adding chemical additives, etc., and then the pulp is uniformly attached to the customized mold to form a wet product through the vacuum effect,and drying is also done by the forming machine,after drying,the robot will transfers the product to the trimming machine.

Details:

Fully automatic tableware making machine
Product Type: Mainly used for high quality products , such as tableware, dishware and some high-grade pulp molding products.
Status: Brand new
Place of origin: Guangdong China
Brand: NANYA
Model Type: TA-01B~TA-10B (So many models to meet different capacity)
Voltage: 220V-440V
Approval: CE, TUV,SGS
Warranty: 12 Months (Free spare parts)
Good quality: International brands of electronic and pneumatic components
Service life: More than 25 years
After-Sale Service: Engineers available to service machinery overseas

pecifications:

Model Type	TA-01B	TA-02B	TA-05B	TA-10B
Capacity	1800pcs/h	3500pcs/h	6000pcs/h	10000pcs/h
Workshop Requirement	200m²	230m²	600m²	1200 m²
Electricity Consumption	120kw	390kw	550kw	1100kw
Electricity Installed	200kw	250kw	880kw	1700kw
Material Consumption	25~30kg/h	50~60kg/h	120~150kg/h	250~300kg/h
Water Consumption	80~100kg/h	150~200kg/h	500~600kg/h	1000~1200kg/h
Worker Requirement	3 persons	4 persons	6 persons	10 persons
Container Requirement for Shipment	1 x 40’HQ	2 x 40’HQ	4 x 40’HQ	8 x 40’HQ
Forming Type	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming
Drying Method	Drying in mould	Drying in mould	Drying in mould	Drying in mould
Notes: The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Competitive Advantages:

Fully automatic
Energy saving and labor utilization
High quality tableware making machine
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
30 years experience in this field, Chinese reliable supplier, supported by the government and university.

Applications:

Food container	Dishware, tableware, lunch box, bowl, cup, clamshell…
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
High quality packages	Mobile phone package, camera package,water bottle...

Fully Automated Bagasse Pulp Tableware Machinery In Wood Pulp 1
Business Terms:

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
