Quality Product Is Our Passion; Service&Innnovation Is Our Mission.

|
| Place of Origin: | China |
| Brand Name: | NANYA |
| Certification: | CE/TUV/SGS/ISO9001 |
| Model Number: | CY111 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 45-120days |
| Payment Terms: | L/C, T/T, Western Union |
| Plate Size: | 1000×660mm | Gas Resource Pressure: | 0.6-0.75MPa |
|---|---|---|---|
| Raw Material Of Product: | Waste Paper | Supply Voltage: | 3P/AC220V/380V/415V/±10% /50Hz/60Hz |
| Maximum Height Of Product: | 100MM | Product Thickness: | 1-2mm |
| Operating Method: | Touch Screen Operation | ||
| Highlight: | Pulp molding Urnial Bottle Machine,Semi-automatic urinal bottle machine,Biodegradable urinal bottle machine |
||

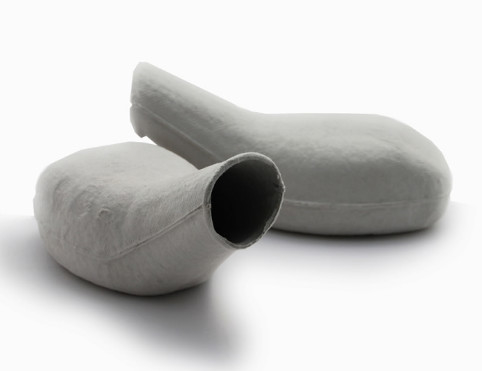

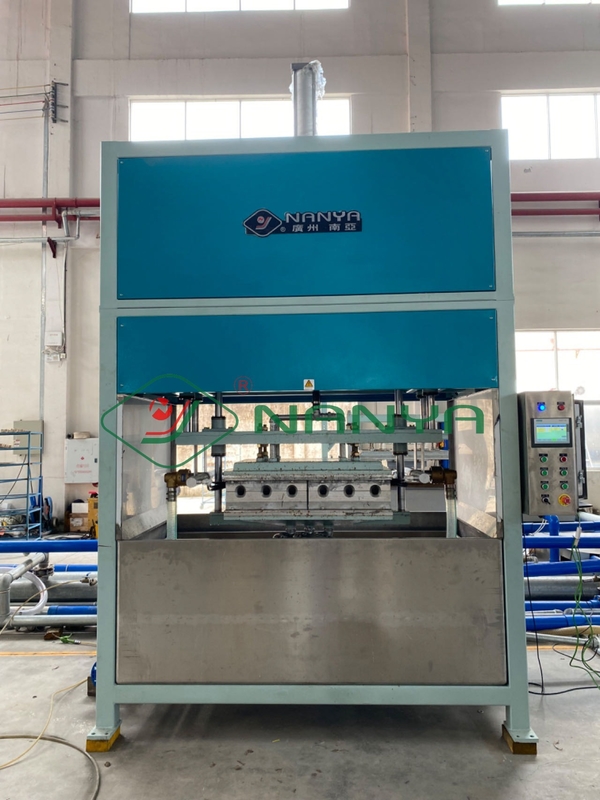

The Semi-automatic urinal bottle forming machine uses electricity as energy source and has no pollution to the environment. Production water is completely closed cycle, no sewage discharge, no smoke, dust discharge, will not cause pollution to the environment.
Parameters:
|
Technical parameters |
CY111 |
|
Plate size |
1000×660mm |
|
Supply voltage |
3P/AC220V/380V/415V/±10%/50Hz/60Hz |
|
Opening height of plates |
130-430mm |
|
Maximum height of product |
100mm |
|
Cylinder size of whole mold |
160*560mm |
|
Cylinder size of top mold |
160*300mm |
|
Product thickness |
1-2mm |
|
Gas resource pressure |
0.6-0.75MPa |
|
Operating method |
Touch screen operation |
Schematic Diagram:
