Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages

Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages

  • Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages
  • Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages
  • Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages
Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages
Product Details:
Place of Origin: China(mainland)
Brand Name: Nanya
Certification: CE,TUV,SGS, ISO9001
Model Number: HF01~HF10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 60-120 Days
Payment Terms: T/T, L/C, Cash, Western Union
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp Fuel: Diesel, Heavy Oil, LPG, Natural Gas, Coal, Wood, Steam…
Forming Type: Thermoforming Drying After-Sale Service: Engineers Available To Service Machinery Overseas
Automation: Fully-automatic Warranty: 12 Months
Applications: Super Fine Packaging Products
High Light:

Pulp Molding Production Line

,

Pulp Molding Machinery

,

Thermoforming Drying Pulp Molding Machinery

Pulp Molded Thermo-forming Machine for Super Fine Industrial Packages



Specifications:



Model

HF-01

HF-02

HF-05

HF-10

Capacity

30kg/h

60kg/h

150kg/h

300kg/h

Main Machine Model & Quantity

YC011—1set

YC011—2sets

YC011—5sets

YC011—10sets

Heating Method

Electricity

Electricity

Heat Conduction

Heat Conduction

Workshop Requirement

200 m2

300 m2

600 m2

1000 m2

Power Installation

150kw

250kw

220kw

400kw

Material Consumption

20~25kg/h

50~60kg/h

120~140kg/h

240~280kg/h

Water Consumption

80~100kg/h

150~200kg/h

500~800kg/h

1000~1600kg/h

Workers Requirement

3 persons

4 persons

6 persons

8 persons

Container Requirement for Shipment

1 x 40’HQ

2 x 40’HQ

4 x 40’HQ

8 x 40’HQ

Forming Type

Vacuum suction, thermoforming

Vacuum suction, thermoforming

Vacuum suction, thermoforming

Vacuum suction, thermoforming

Drying Method

Drying in mould

Drying in mould

Drying in mould

Drying in mould




Descriptions:



  • After wet pressing process, products will be dry in the mould completely.
  • This machine can apply to manufacture high quality pulp molding products, such as high-grade packaging, craft products, decoration and etc.
  • The machine makes sure each surface of product is smooth, which increases the value of the products. Besides, this kind of machine supports some special design printing, like company’s logo, which will certainly improves company’s image.
  • Products with high density and good strength and they won’t be out of shape.
  • Easy package and piled, reduced transportation cost and improve economic benefits.
  • Less area of the workshop required.
  • Add some additives in the process to get special usability requirement. EG: waterproof, oil-proof, anti-static and etc.
  • The procedures of forming, drying and hot-press shaping are completed in one machine automatically.
  • By adopting the international famous brand controls, the machine performs reliably.
  • The machine has wide range of application and it can produce various specifications and different thickness of production by changing the moulds.




Product Information & Our Warranty:



  • Pulp Molded Thermo-forming Machine for Super Fine Industrial Packages
  • Mainly used for the products with various structures but in big quantity, such as high-grade packaging, craft products and decration, masks and inside industiral packaging for electronic devices and so on.
  • Status: Brand new
  • Product Type: Production line for high-grade pulp molding products
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type:HF-01~HF-10
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas







Machine Glance:

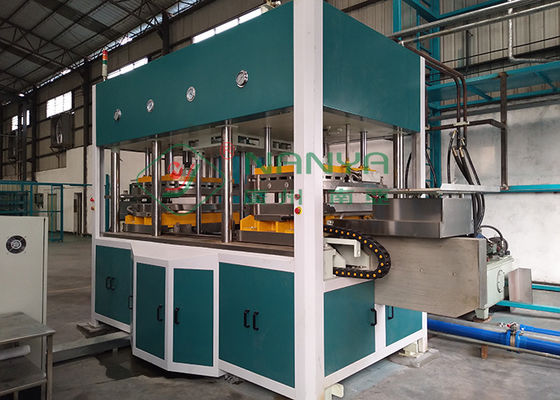

Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages 0





YOUTUBE Link:



https://www.youtube.com/watch?v=SskObphnQZo




Applications:



Inner Industrial Package for

Electrical Equipment

Electric Tools

Car Parts

Lamp & Lanterns

Shoe Tree

Compressor of Air-condition

Electronic Products

Instrument

Communication Apparatus

Pulp Molding Machinery Thermoforming For Super Fine Industrial Packages 1




Business Terms:



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

60-120 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
