Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer

    • Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer
    • Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer
    • Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer
  • Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: Nanya
    Certification: CE,TUV,SGS, ISO9001
    Model Number: ER3000-A~ER6000-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45-75 days
    Payment Terms: L/C, T/T, Cash, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Processing Material: Waste Paper Fuel: Diesel, Heavy Oil, LPG, Natural Gas, Coal, Wood, Steam…
    Dryer: Single Layer Automatic Dryer Capacity: 3000~6000 Pcs/h

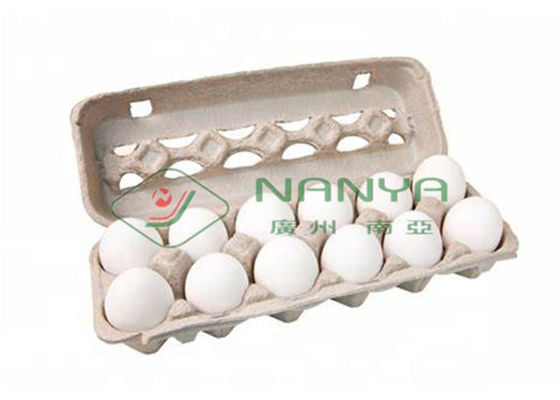

    Forming Type: Rotary Production: Egg Tray, Egg Carton, Fruit Tray, Cup Carrier, Disposable Medical Care Products

    Fully Automatic Molding Pulp Egg Tray Making Machine, Fruit Tray Production Line


    Specifications:



    Model Type

    ER3000-A

    ER4000-A

    ER5000-A

    ER6000-A

    Capacity

    3000pcs/hour

    4000pcs/hour

    5000pcs/hour

    6000pcs/hour

    Workshop Requirement

    500m2

    600m2

    700m2

    800m2

    Electricity Consumption

    ~120kw
    (180kw installed)

    ~160kw
    (250kw installed)

    ~200kw
    (300kw installed)

    ~220kw
    (360kw installed)

    Material Consumption

    180~210kg/h

    250~280kg/h

    320~350kg/h

    360~400kg/h

    Water Consumption

    600~800kg/h

    800~1000kg/h

    1000~1200kg/h

    1200~1400kg/h

    Worker Requirement

    4~5person

    4~5person

    4~5person

    5~6person

    Container Requirement for Shipment

    6 x 40HQ

    7 x 40HQ

    8 x 40HQ

    9 x 40HQ

    Forming Machine

    Rotary type with 8 plates. Each for 3pcs/time

    Rotary type with 8 plates. Each for 4pcs/time

    Rotary type with 8 plates. Each for 5pcs/time

    Rotary type with 8 plates. Each for 6pcs/time

    Drying Production Line

    42mx2.2mx3.6m

    42mx2.6mx3.6m

    42mx3.0mx3.6m

    42mx3.4mx3.6m

    Remarks:

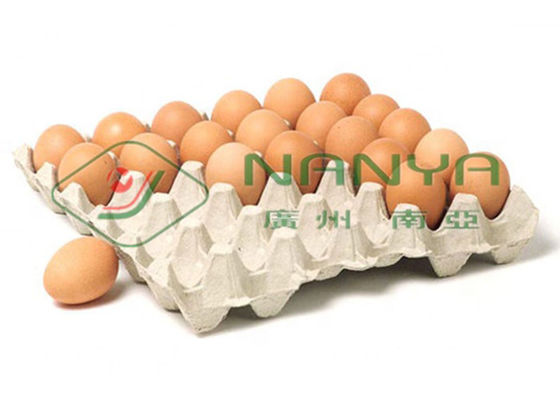

    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.




    Fuel Consumption (One Item Selectable)



    Type

    ER3000-A

    ER4000-A

    ER5000-A

    ER6000-A

    Natural Gas

    60~70m3/h

    80~90m3/h

    100~110m3/h

    110~120m3/h

    LPG

    21~24m3/h

    28~32m3/h

    35~39m3/h

    40~45m3/h

    Diesel

    50~60kg/h

    68~76kg/h

    85~92kg/h

    95~100kg/h

    Heavy Oil

    52~62m3/h

    70~80kg/h

    88~95kg/h

    98~105kg/h

    Steam

    1.1~1.3ton/h

    1.4~1.6ton/h

    1.7~1.9ton/h

    1.9~2.2ton/h

    Wood

    210~240kg/h

    280~320kg/h

    350~390kg/h

    400~450kg/h

    Coal

    140~160kg/h

    180~210kg/h

    220~250kg/h

    260~300kg/h



    Descriptions:

    • Fully Automatic Egg Tray Production Line
    • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
    • Status: Brand new
    • Product Type: Egg Tray Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: ER3000-A~ER6000-A
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas


    Competitive Advantages:

    • Fully automatic
    • Energy saving and labor utilization
    • High quality egg tray machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese Famous Trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association



    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45~75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date




    Production Theory:

    • The track or worker carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor firstly;
    • Then the conveyor pours down the raw material into the hydrapulper mixing with certain mater;
    • Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
    • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;

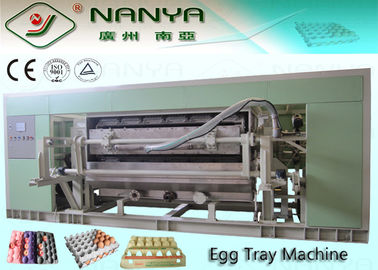

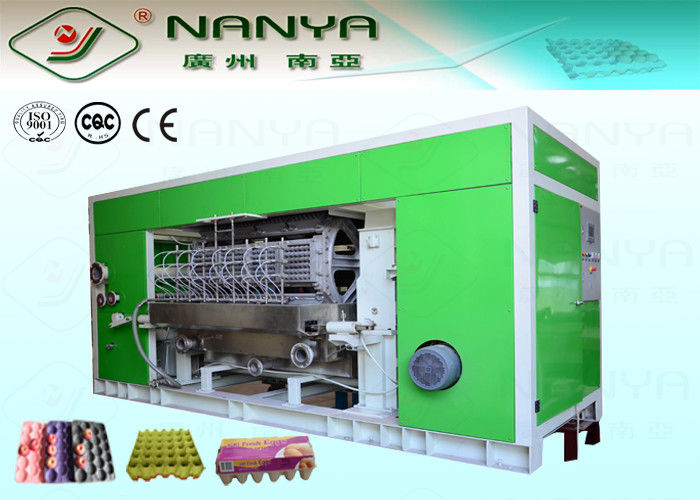

    • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped on the working platform.

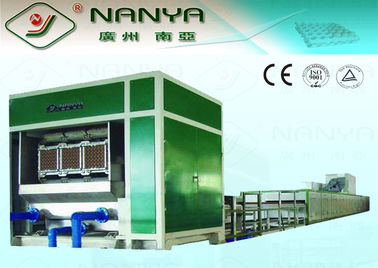

    • Finally the wet products will move into the drying line automatically. After a round or two, the products will get totally dry  and then go into stacker and get packed.


    Technological Process:

    Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer


    Applications:

    Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer


    Company Profile:

    Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer
    Molding Pulp Egg Tray Making Machine Fruit Tray Production Line Single Layer
