Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin

    • Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin
    • Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin
    • Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin
  • Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: Semi-auto Hospital Disposables Making Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Automation: Semi-automatic
    Standard: CE/TUV/SGS/ISO9001 Application: Hospital Bedpan / Vomiting Basin / Sick Pot
    Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp Voltage: 220V-450V
    After-sales Service Provided: Engineers Available To Service Overseas Warranty: 12 Months

    Semi-auto Paper Pulp Molding Hospital Bedpan / Vomiting Basin Forming Equipment





    Specifications:



    Machine Name

    Semi-auto Hospital Disposables Making Machine

     Nominal Voltage

    220V±10%

    Rated Frequency

    50Hz

    Absorbing Pulp Time

    0~30seconds (Adjustable)

    Dehydrating Time

    0~30seconds (Adjustable)

    Production Cycle

    12~60seconds(Adjustable)

    Vacuum

    -0.07 ~ -0.05MPa

    Input Air Pressure

    0.5~0.7MPa

    Power Consumption

    ≤1KW

    Cylinder Diameter

    125mm

    Cylinder Route

    450 mm

    The Height of the product

    ≤160mm

    Machine Dimension

    2500×1800×3040mm

    For other capacity and machine dimension, the machine can be designed and made according to customer's requirement.





    Descriptions:

    • The production line consists of forming machine, drying line, hot-press machine. The formed products can be mannully transferred into the drying line (or drying house) for for dryness, or dried by sunshine. After being dried, the products will be manually transferred into the hot-press machine to fix the shape.
    • This machine takes the waste paper or all kinds of paper pulp, like wood pulp, bagasse pulp and straw pulp, as raw material, produces many kids of disposable medical products, such as bedpan and vomitting basin.
    • Hydraulic drive pressing
    • Siemens Servo motor driver for transversal moving
    • PLC + touch screen control
    • Stainless pulp tank
    • The main electrical elements are Siemens.
    • The main pneumatic element is FESTO or SMC.



    Competitive Advantages:

    • Energy saving and labor utilization
    • High quality hospital disposables making machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association



    Production Information and Our Warranty:

    • Status: Brand New
    • Mainly used for hospital disposable products, such as bedpan, vomiting basin, sick pot.
    • Status: Brand new
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: Semi Automatic Hospital Disposables Forming Machine
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas



    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges of air ticket, VISA , accommodation and food of the engineer should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date

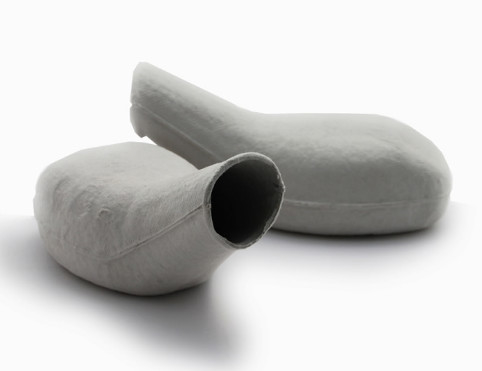

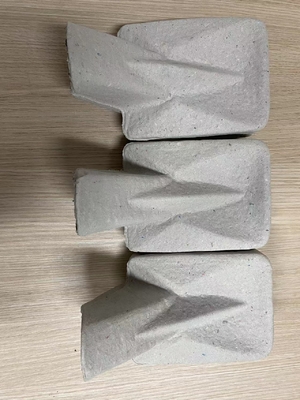

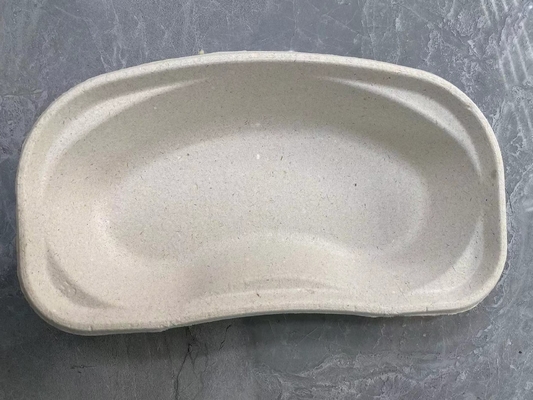

    Products Show:



    Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin





    Schematic Diagram:



    Semi-auto Paper Pulp Molding Equipment Forming Hospital Bedpan / Vomiting Basin
