Biodegradable Fully Automatic Pulp Molding Equipment , PLC + Touch Screen Control

    • Biodegradable Fully Automatic Pulp Molding Equipment , PLC + Touch Screen Control
    • Biodegradable Fully Automatic Pulp Molding Equipment , PLC + Touch Screen Control
  • Biodegradable Fully Automatic Pulp Molding Equipment , PLC + Touch Screen Control

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: Nanya
    Certification: CE,TUV,SGS, ISO9001
    Model Number: YC020

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45-75 days
    Payment Terms: T/T, L/C, Cash, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp Fuel Type: Conduction Oil
    Forming Type: Thermoforming Drying Applications: Egg Tray, Egg Carton, Fruit Tray, Cup Carrier, Disposable Medical Care Products
    After-Sale Service: Engineers Available To Service Machinery Overseas Automation: Fully-automatic
    Warranty: 12 Months Voltage: 380V

    Biodegradable Fully Automatic Pulp Molding Thermoforming Machine for Top- grade Products





    Specifications:



    Product Name

    Fully Automatic Forming Machine

    Model Type

    YC020

    Work Table Dimension

    1000*1000mm

    Maximum Boost Pressure of Hydraulic Cylinder

    35tons

    Hot-press Mould Closing Height

    180mm

    Product Height

    240-340mm

    Nominal Voltage

    380V

    Rated Power

    25kw

    Machine Dimension

    6130*1850*4520mm3

    Working Period

    100-160s (Adjustable)

    Circuit Control Mode

    PLC & Touch Screen

    Solenoid Valve

    DC24V

     Heating Method

    By Conduction Oil

    Forming Method

    Vacuum Forming

    Drying Method

    Thermoforming Drying

    Normal Working Air Pressure

    0.6-0.75PMa

    Vacuum Pressure

    -0.06-0.075PMa

    Compressed Air Pressure in Low Hot-press Mould

    0.8-0.85PMa





    Descriptions:

    • The processes of forming, drying and shape finishing are done in one machine automatically and continuously.
    • Hydraulic drive pressing
    • Siemens Servo motor driver for transversal moving
    • With auto mould washing and edge washing.
    • PLC + touch screen control
    • Stainless pulp tank
    • The main electrical elements are Siemens.
    • The main pneumatic element is FESTO or SMC.



    Competitive Advantages:

    • Fully automatic
    • Energy saving and labor utilization
    • High quality egg tray machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association



    Product Information and Our Warranty:

    • Fully Automatic Production Line
    • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
    • Status: Brand new
    • Product Type: Fully Automatic Forming Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: YC020
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas



    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA, accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date





    Products Show:

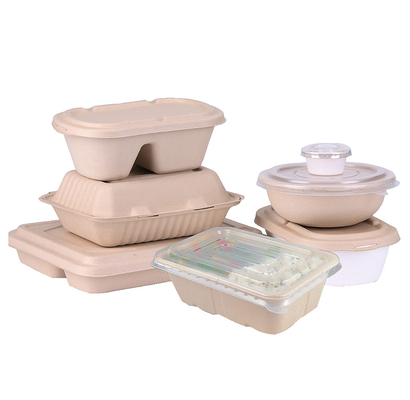

    Biodegradable Fully Automatic Pulp Molding Equipment , PLC + Touch Screen Control
