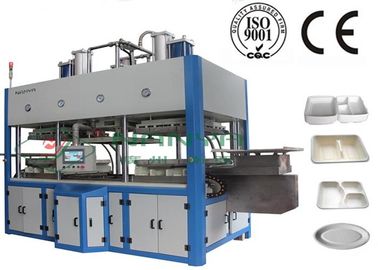

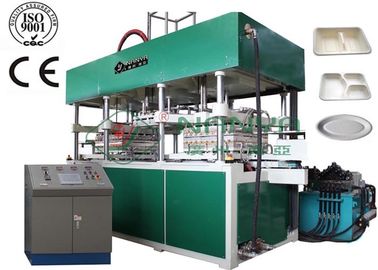

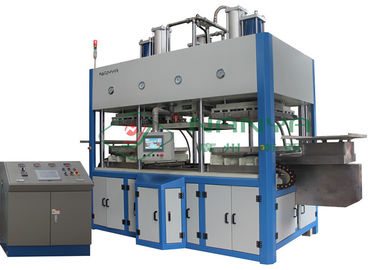

Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010

    • Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010
    • Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010
    • Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010
  • Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: Nanya
    Certification: CE,TUV,SGS, ISO9001
    Model Number: YC010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45-75 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Processing Material: Bagassse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp Fuel Type: Electricity And Conduction Oil
    Forming Type: Vacuum Forming Applications: Dishware / Tableware / Mask / Industrial Packaging
    After-Sale Service: Engineers Available To Service Machinery Overseas Automation: Fully-automatic
    Warranty: 12 Months Drying Method: Thermal Forming

    Fully Automatic Pulp Molding Thermoforming Machine for Tableware / Dishware (YC010)


    Specifications:


    Model Type

    YC010

    Product Name

    Fully Automatic Forming / Drying Integrative Machine

    Mould Plate Size

    1100*800 mm

    Quality of Forming Station

    1

    Quality of Drying / Press Station

    2

    Forming Method

    Vacuum Suction

    Driving Method of Pulp Tank Rise / Down

    Synchrohydro-cylinder+ balance valve. Two sets of hydro=cylinder, diameter=80mm, stroke=240mm

    Specification of Cylinder for Top

    Gas-liquid damping cylinder, diameter=200mm,stroke=1020mm

    Minimum Shut Height of Forming Station

    80mm

    Specification of Cylinder for Drying / pressing

    Gas-liquid boosting cylinder, diameter=250mm,stroke=325mm,Max Press=40tons

    Minimum Shut Height of Drying / Press Station

    80mm

    Drying Method of Bottom Drying / press mould

    Servo Motor, Power=2.0kw, Stroke=1075mm

    Height of Product Available

    ≤100mm

    Power Rating(Except of Heating Part)

    5kw

    Heating Method

    Electricity Heat / Conduction Oil Heat

    Electric Heat Power Regulable

    90kw

    Outline Dimension (Transport)

    5100*2200*2480mm

    Outline Dimension (Whole Machine)

    5100*2200*3715mm

    Working Cycle Time

    Adjustable(According to the product)

    Capacity Reference

    20-30kg/h

    Electric Control Method

    PLC+ Touch Screen

    Mould Washing Method

    Mould Washing Following the Hot-press Mould

    Vacuum Input Required

    Vacuum Pressure: -0.08~0.06MPa; Sucking Rate: 6m3/min

    Compressor Air Input Required

    Pressure:0.5~0.6MPa; Flow:16m3/min



    Descriptions:

    • The processes of forming, drying and shape finishing are done in one machine, but the products have to be transfer by hand.
    • PLC + touch screen control
    • Stainless pulp tank
    • The main electrical elements are Siemens
    • The main pneumatic element is FESTO or SMC.


    Competitive Advantages:

    • Fully automatic
    • Energy saving and labor utilization
    • High quality egg tray machine
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association.


    Production Information & Our Warranty:

    • Fully Automatic Egg Tray Production Line
    • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
    • Status: Brand new
    • Product Type: Egg Tray Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: CY010
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas


    Applications:


    Food container

    Dishware, tableware, lunch box, bowl…

    Artware

    Mask, Christmas balls, Easter Eggs , boutiques…

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

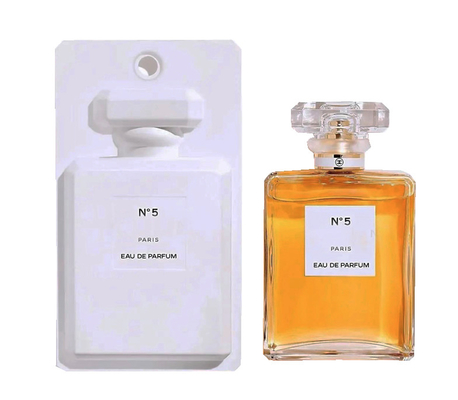

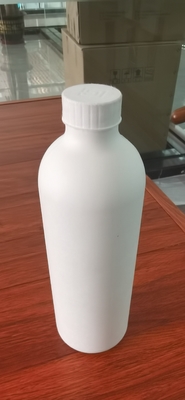

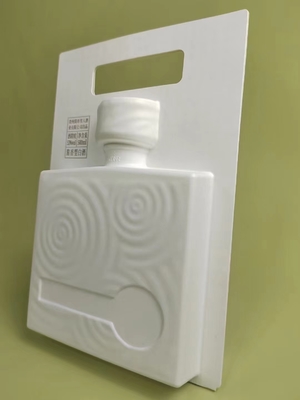

    High quality packages

    Mobile phone package, camera package,

    Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010



    Business Terms:


    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineer should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date



    Schematic Diagram:

    Fully Automatic Thermoforming Pulp Molding Equipment for Tableware / Dishware YC010
