Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery

Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery

    • Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery
    • Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery
    • Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery
  • Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ER5000-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or Western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 5000Pcs / H
    Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp Forming Type: Vacuum Suction
    After-sales Service Provided: Engineers Available To Service Overseas Voltage: 220 V - 450 V
    Standard: CE/TUV/SGS/ISO9001 Automation: Fully-automatic

    Automatic Rotary Type Egg Carton / Fruit Tray Making Machine 5000Pcs /H 8 Sides





    Specifications:



    Model Type

    ER5000-A

    Capacity

    5000 pcs/hour

    Workshop Requirement

    700 m2

    Electricity Consumption

    ~200 kw

    Electricity Installed

    300 kw

    Material Consumption

    320~350 kg/h

    Water Consumption

    1000~1200 kg/h

    Worker Requirement

    4~5 persons

    Container Requirement for Shipment

    8 x 40 HQ

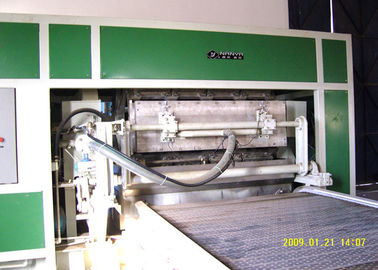

    Forming Machine (Rotary Type)

    Rotary type with 8 plates. Each for 5 pcs / time

    Drying Line

    42x3.0x3.6 m  1-Layer

    Remarks:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





    Fuel Consumption   (One Item Selectable)



    Natural gas

    100~110 m3/h

    LPG

    35~39 m3/h

    Diesel

    85~92 kg/h

    Heavy Oil

    88~92 kg/h

    Steam

    1.7~1.9 ton/h

    Wood

    350~390 kg/h

    Coal

    220~ 250 kg/h





    Descriptions:

    • It’s a fully automatic egg tray production line
    • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
    • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
    • Products come out automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



    Production Information and Our Warranty:

    • Status: Brand New
    • Product Type: Egg Tray Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong, China
    • Brand: NANYA
    • Model Type: ER5000-A
    • Voltage: 220V - 450V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas



    Applications:

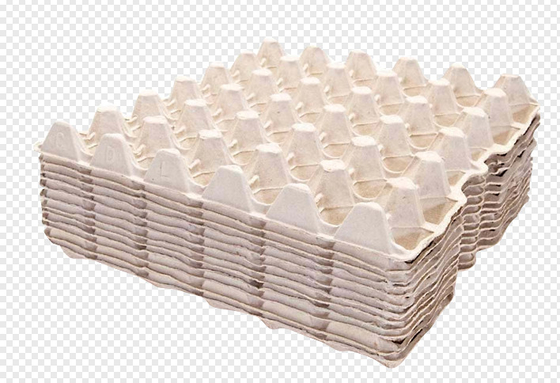

    Egg tray

    20,30,40packed egg tray…  quail egg tray

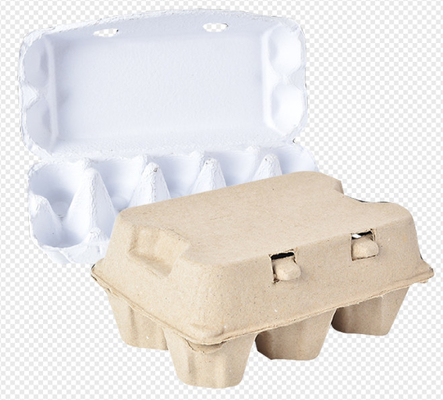

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

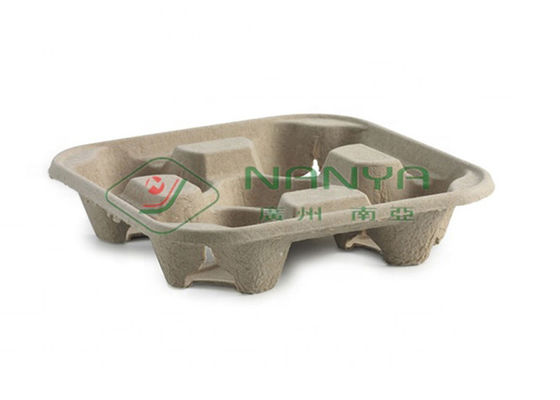

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…

    Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery





    Competitive Advantages:

    • Fully automatic production line
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and universities.
    • The standing director of Chinese packaging association



    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
