Fast Food Box / Disposable Tableware Making Machine Drying in Mould 7000Pcs / H

Product Details:

Place of Origin:	China
Brand Name:	Nanya
Certification:	CE/TUV/SGS/ISO9001
Model Number:	TA-05

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	45~75 days
Payment Terms:	T/T or western Union or L/C
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Machine	Capacity:	7000 Pcs/h
Automation:	Fully-automatic	Forming Type:	Vacuum Suction / Thermoform
Standard:	CE/TUV/SGS/ISO9001	Processing Material:	Bagasse Pulp Or Bamboo Pulp Or Straw Pulp Or Wood Pulp
Voltage:	220 V - 450 V	Drying Type:	Drying In Mould
Highlight:	Paper Dish Making Machine , Paper Plate Manufacturing Machine , Paper Pulp Food Box Making Machine

Automatic Disposable Tableware / Paper Pulp Mould Fast Food Box Making Machine 7000Pcs / H

Specifications:

Model Type	TA-05
Capacity	7000 pcs/h
Workshop Requirement	600 m²
Electricity Consumption	450 kw
Electricity Installed	220 kw
Material Consumption	120 ~ 140 kg/h
Water Consumption	500 ~ 800 kg/h
Worker Requirement	6 persons
Container Requirement for Shipment	4 x 40’ HQ
Forming Type	Vacuum suction, thermoforming
Drying Method	Drying in mould
Notes: The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Descriptions:

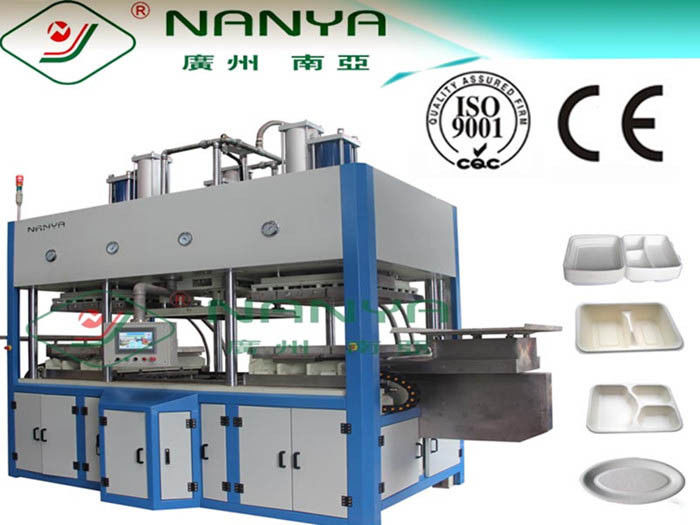

This is a fully automatic pulp molding production line
It’s mainly used for high quality pulp molded products, such as dishware, artware, disposable medical care products, high quality industrial package...
This type of production line is constituted by a hydrapulper system, a fully automatic thermoforming machine(forming/drying/pressing integrative machine), and corollary equipments.
Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

Production Information and Our Warranty:

Status: Brand new
Product Type: thermoforming Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: TA-05
Voltage: 220V - 440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
High quality packages	Mobile phone package, camera package,

Competitive Advantages:

Fully antomatic production line
Siemens servo motor is applied
Energy saving and labor utilization
High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
