Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine

Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine

    • Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine
    • Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine
    • Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine
  • Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine

    Product Details:

    Place of Origin: Guangdong, China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: TA01~TA10B

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 60-120 Days
    Payment Terms: T/T, L/C, Cash or Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Equipment Platen Size: 1300*1100mm
    Capacity: 30~300 Kg / H Drying Way: Heating & Drying In Mould
    Applications: Tableware; Artware;High Quality Paper Pulp Package Automation: Fully Automatic
    Raw Material: Bagasse Pulp Or Bamboo Pulp Or Straw Pulp Heating Fuel: Electricity; Conduction Oil; Steam
    Control By: PLC + Touch Screen + Simens Warranty: 12 Months
    High Light:

    Pulp Molding Production Line

    ,

    Pulp Molding Machinery

    Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine



    Introduction:

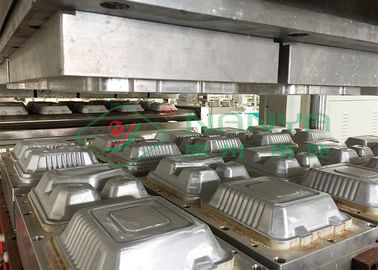

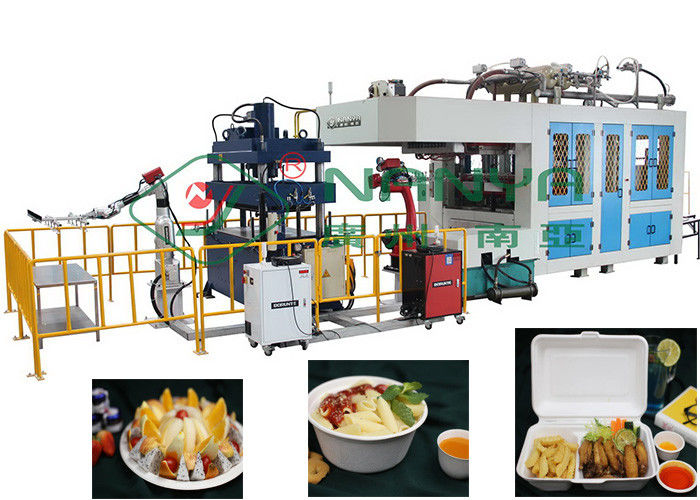

    1. This  is the fully automatic bagasse fiber tableware production line. Product forming, heating and hot-press and stacking in one forming machine.

    2. This production line includes pulping system, forming and hot press system, vacuum system, air compressor system, trimming system, disinfection system.

    3. Raw material: virgin pulp, like sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp, reed pulp and etc.

    4. By changing moulds, the same forming machine can make different shape of products, such as paper plates, paper bowls, lunch boxes, cups and etc.

    5. Can add robots, can edge trimming and stacking automatically.


    Main Technical Data:

    Model Type

    TA-01B

    TA-02B

    TA-05B

    TA-10B

    Forming Machine 1 set  2 sets 5 sets 10 sets

    Capacity

    1800pcs/h

    3500pcs/h

    9000pcs/h

    18000pcs/h

    Workshop Required

    200m2

    230m2

    600m2

    1200 m2

    Electricity Consumption

    120kw

    390kw

    550kw

    1100kw

    Electricity Installed

    200kw

    250kw

    880kw

    1700kw

    Material Consumption

    25~30kg/h

    50~60kg/h

    120~150kg/h

    250~300kg/h

    Water  Consumption

    80~100kg/h

    150~200kg/h

    500~600kg/h

    1000~1200kg/h

    Worker Requirement

    3 persons

    4 persons

    6 persons

    10 persons

    Container Required for Shipment

    1 x 40’HQ

    2 x 40’HQ

    4 x 40’HQ

    8 x 40’HQ

    Forming Type

    Vacuum suction

    Vacuum suction

    Vacuum suction

    Vacuum suction

    Drying Method

    Thermoforming

    Thermoforming

    Thermoforming

    Thermoforming

    Notes:

    1. The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products.
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



    Advantages of Bagasse Tableware Production Line:

    1. Fully Automatic Tableware Making Production Line

    2. Mainly used for high quality products , such as tableware, dishware and some high-grade pulp molding products.

    3. The products are 100% disposable and environmental friendly.

    4. Wtare resistant and oil resistant and food grade.



    Production Line Flow Chart:

    Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine


    Applications:

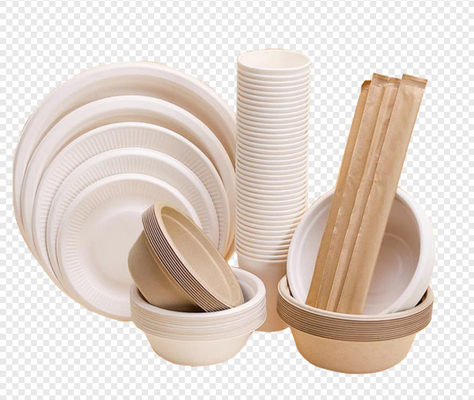

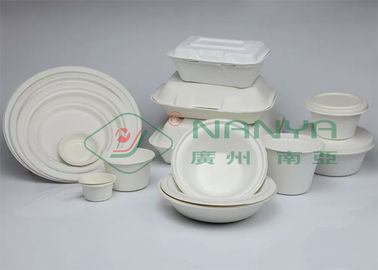

    All kinds of tableware items plates, bowls, lunch boxes, food trays, cups and etc.
    High quality packages for  cell phone, make up products, laptop, jewelry and etc.
    Artwork 3D ceiling panel, masks, Easter egg , medical care items and etc.
    Paper Pulp Molding Equipment Molded Bagasse Fiber Lunch Box Machine



    Youtube Video Links:

    The below are the YOUTUBE Links showing how these fully automatic tableware production line work:

    (1) https://www.youtube.com/watch?v=7YLnwE5lqJw

    (2) https://www.youtube.com/watch?v=PrmRiMvirr8

    (3) with robot video: https://youtu.be/X6yGLDTzT3Q

    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



    Installation & After Sales Service:

    1  We will send 1 or 2 engineers to customer's plant for installation guidance and debug;
    2  After commissioning, our engineers will offer the training, including two parts: explanation and practice.
    3  Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
    4  After engineers back to China, video conference or remote control guidance are available to solve questions.



    Why choose NANYA Company:

    1. Rich Experience: With over 20 years of experience, we will make quotation and analysis based on customer’s investment and capacity.

    2. Advanced Technology: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    3. Good Service: Life-long service, sustainable supply and upgrade of parts and components, One-year warranty( three-year warranty for mechanical parts and main machine)

    4. Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 50 countries and regions

    5. Good Team: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.



    Q & A

    Q: What capacity can I choose:

    A: We will match the forming machine quantity to meet your capacity demand.



    Q: Can I customize mould?

    A: Yes, we have our mould centre. We can make moulds according to customer's sample or drawing.



    Q: What other fuel can I choose for heating products?

    A: You can use electricity or thermo-oil or steam. But you need to prepare a boiler if you choose thermo-oil heating or steam.



    Q: Can you offer the detailed layout on how to build up my workshop?

    A: Yes, we will design and offer detailed layout and construction drawings to you.
