Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified

Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified

    • Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified
    • Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified
    • Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified
    • Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified
  • Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Strong and Suitable for Marine Shipment
    Delivery Time: 100 Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Egg Tray Machine Capacity: 6000Pcs / H
    Dryer Type: 6 Layers Dryer Raw Material: Waste Paper Pulp
    Forming Type: Rotary Vacuum Suction After-sales Service: Engineers Available To Service Overseas
    Forming Efficiency: 16-17 Cycles/min Automation: Fully Automatic
    Power: 210 Kw Warranty: 12 Months

    Eco-friendly Fiber Pulp Egg Tray / Fruit Tray Machinery with CE Certified






    Production Line Overview:




    1. Automation Condition: Fully automatic egg tray production line.
    2. Raw material: Any kind of waste paper like waste carton, old newspaper, books, A4 paper etc, and easy to get.
    3. Mainly applied for egg tray, egg carton, fruit tray, cup carrier, paper tray et.

    4. Easy to operate, low labor force cost, large output.

    5. Take waste paper as raw material, no water pollution, eco friendly and 100% biodegradable.







    Specifications:


    Model Type

    ER6000-B

    Capacity

    6000 pcs/hour

    Workshop Required

    700 m2

    Electricity Consumption

    ~210 kw

    Electricity Installed

    350 kw

    Material Consumption

    360~400 kg/h

    Water Consumption

    1200~1400 kg/h

    Worker Required

    5~6 persons

    Container Required for Shipment

    9 x 40 HQ

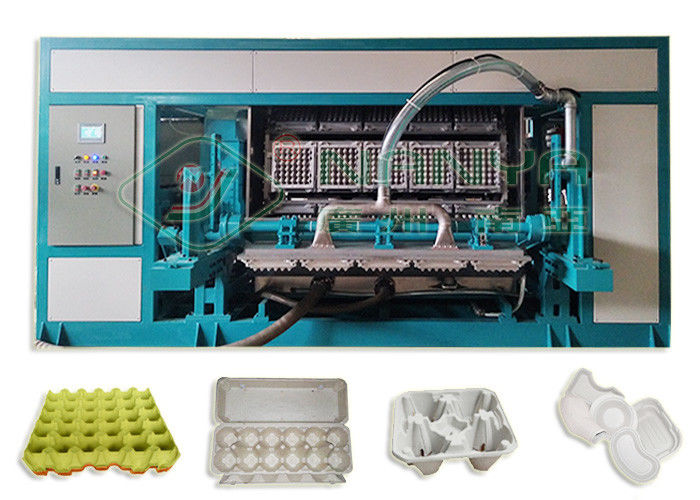

    Forming Machine (Rotary Type)

    Rotary type with 8 plates. Each for 6 pcs/time

    Drying Line

    22x3.4x4m  6-Layers

    Remarks:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





    Working Theory:

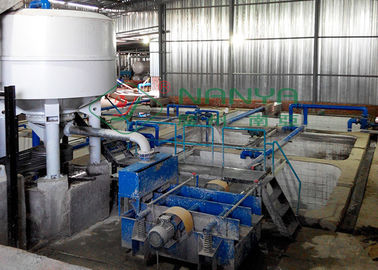

    Pulping System
    Waste paper will be made into pulp with certain concentration through screening and grinding.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.

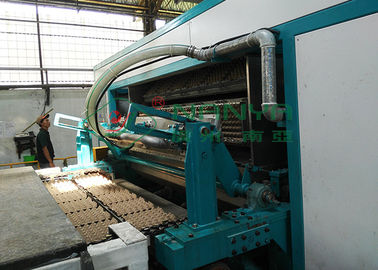

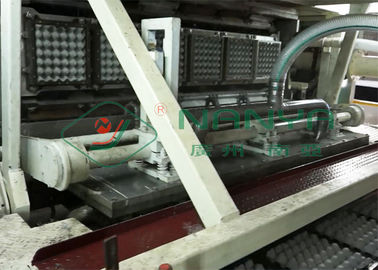

    Forming System  The pulp is formed into products on forming mold, then products are transferred to dryer automatically. Including rotary forming machine, vacuum auto drain system, auto cleaning system for the forming mold, preheating system and auto control cabinet.
    Vacuum System Supply vacuum for forming machine.
    Air Compressor System Supply compressed air for forming machine.

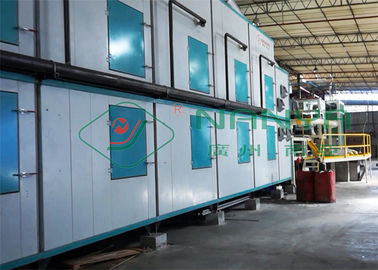

    Drying system

         Six layers dryer, one burner Italian brand. The energy for option: LPG, natural gas,          diesel oil. Steam, coal, wood and etc.

    Stacking System

         The finished products will be counted and stacked automatically after drying.





    Applications:

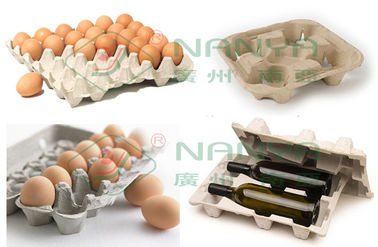

     By changing molds, the machine can make egg trays, egg cartons, fruit trays, seeding cups, shoe trays, industrial packages etc.



    Eco Friendly Fiber Pulp Egg Tray / Fruit Tray Machinery With CE Certified





    YOUTUBE Links:


    Here are our egg tray machines Youtube Video for your reference:



    (1) 4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    (2) 6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



    (3) 3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    (4) 4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    (5) 6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4





    NANYA Advantages:


    1. Established in 1994, with more than 25 years of expertise and experience, NANYA is one of the earliest manufacturers for Pulp Molding Products in China;

    2. Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    3. NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;

    4. NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;

    5. Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.

    6. The most outstanding features of NANYA machines:Stable and reliable running; Saving energy; High efficiency; Produce the high quality egg tray of EU standards.





    FAQ:


    Q1: What are your terms of payment?
    A1: We accept T/T, L/C, Western Union and Cash.



    Q2: What are the delivery time?
    A2: Usually 100 days.



    Q3: Can you design and make molds?
    A3: Yes, we have CNC mold centre and professional team for designing and making molds.



    Q4: How long is the guaranty period?

    A4: Life-long service, sustainable supply and upgrade machine and parts. 1 year warranty (three-year warranty for mechanical parts and main machine).



    Q5: How long is installation?

    A5: We’ll appoint 2 engineers to instruct buyer in installation, test-run and training





    Q6: Can you produce according to our special requirements?
    A6: Yes, we are the professional manufacturer and can design according to different requirements.
