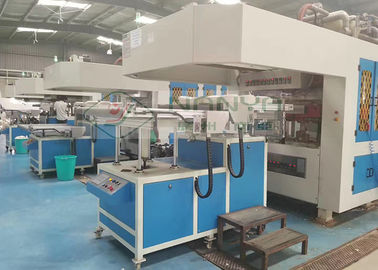

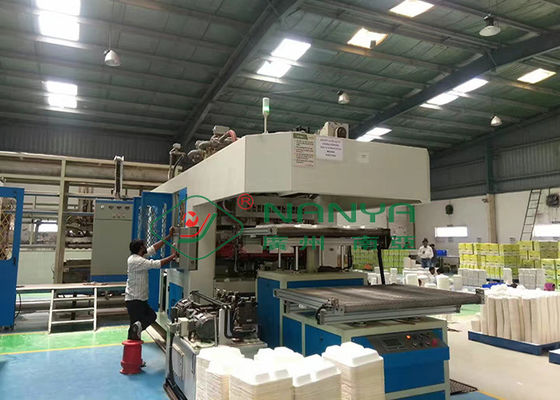

Compostable Bagasse Pulp Food Tray Tableware Making Machine Drying in Mould

Compostable Bagasse Pulp Food Tray Tableware Making Machine Drying in Mould

    • Compostable Bagasse Pulp  Food Tray Tableware Making Machine Drying in Mould
    • Compostable Bagasse Pulp  Food Tray Tableware Making Machine Drying in Mould
    • Compostable Bagasse Pulp  Food Tray Tableware Making Machine Drying in Mould
    • Compostable Bagasse Pulp  Food Tray Tableware Making Machine Drying in Mould
  • Compostable Bagasse Pulp  Food Tray Tableware Making Machine Drying in Mould

    Product Details:

    Place of Origin: Guangdong China(Mainland)
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: TA-10B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Packaging
    Delivery Time: 80~90 days
    Payment Terms: T/T or western Union or L/C or Cash
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Tableware Making Machine Capacity: 14000 Pcs/h
    Automation: Fully-automatic Forming Type: Dry And Cut In Mould
    Raw Material: Bagasse Pulp / Bamboo Pulp / Straw Pulp ... Guarantee: 12 Months
    Voltage: 380-440 Production: Compostable Tableware/food Tray/paper Plate

    Compostable Bagasse Pulp Tableware / Food Tray Making Machine Drying in Mould



    Introduction of the Production line


    1. The raw material is the clean virgin pulp, like bagasse pulp, bamboo pulp, wood pulp, straw pulp and etc.
    2.The virgin pulp is smashed and mixed in the hydrapulper and adjusted to a certain consistency in tanks.
    3. The fiber in the pulp will cover the wire mesh of the mold by the vacuum and drop down by the air compressor.
    4. The wet products will be formed, dried and hot pressed, edge trimmed in the forming machine. Then the dried products will go disinfection processes.
    5. By changing moulds, the forming machine can make different products, like food tray, plates, bowls, cups, lunch box and etc.


    Main Technical Data


     Product Name  Tableware Making Machine
     Model Type  TA-10B
     Brand   NANYA
     Forming Machine  10 sets
     Mould Platen Size  1300*1100mm
     Capacity  18000 pcs/h (8ince round plates)
     Workshop Required  1200 m(for reference only)
     Worker Required  8 persons / shift
     Heating Way  Electricity / thermo conduction oil



    Consumption Data




     Electricity Consumption  1100 kw ( if heat by electricity)
     Electricity Consumption  400 kw ( if heat by thermo conduction oil)
     Material Consumption  250 ~ 300 kg/h
     Water Consumption  1000 ~ 1200 kg/h
     Chemical for Water Resistance  10 ~ 12 kg/h
     Chemical for Oil Resistance  2 ~ 3 kg/h



    Advantages


    1. Fully Automatic control Tableware Making Production Line.
    2. 100% Compostable and environmental friendly.
    3. After-Sale Service: Engineers available to service machinery overseas.
    4. Quality standard: CE




    Why Choose NANYA


    1. Established in 1994, NANYA has rich experience in the pulp molding industry field;
    2. Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
    3. NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
    4. NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
    5. Excellent engineers, sales and after sales service team offer the best service to ensure long-term satisfaction for customers.


    Applications


    1. Tableware / Dishware: Paper plate, paper cup, paper bowl, clamshell
    2. High quality packages: Mobile phone package, camera package
    3. High quality egg tray, egg carton, industrial pack
    4. Medical care products: kidney, bedpan, sick pad, female urinal
    5. Inserts and all kind of trays.
    The below is one type of food tray made by this machine, by changing moulds, the machine can different products.
    Compostable Bagasse Pulp  Food Tray Tableware Making Machine Drying in Mould


    Youtube Video Links


     1.  https://www.youtube.com/watch?v=7YLnwE5lqJw
     2.  https://www.youtube.com/watch?v=PrmRiMvirr8

    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



    Business Terms


     No.  Item  Description
     1  Payment Terms

     30% down payment by T/T,
     70% before shipment by T/T or L/C at sight

     2  Delivery Terms  FOB Guangzhou, China.
     3  Delivery Time  80-90 days
     4  Installation  Engineers available to service machinery overseas
     5  Warranty  12 months after installation
     6  Packages   Export Packaging
