Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V

    • Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V
    • Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V
    • Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V
  • Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V

    Product Details:

    Place of Origin: Guangzhou, China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: BY010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: contact us and get the latest price
    Packaging Details: International Standard Shipping Package
    Delivery Time: Normally 45 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50sets/month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Tray Making Machine Plate Size: 800*600*2mm
    Forming Type: Reciprocating Moulding Application: Electronic Package Pulp Tray
    Raw Material: Waste Paper Automation: Automatic
    Color: Blue( Can Be Customized) Voltage: 220V/380V

    Double Reciprocate Electronic Package Pulp Tray Making Machine 800*600mm






    Description about the Machine​


    1. The machine is for Electronic Package Pulp Trays.

    2. The products will drop on the product collection table automatically.

    3. This machine has double working stations, it can make two different types products at the same time. By changing moulds, the machine can make many types different products.

    4. PLC and touch screen controlled.

    5. Drive: bottom mould reciprocated drive by pneumatic, up mould forward-backward drive by pneumatic.

    6. The main Pneumatic parts brand: SMC/ARK. The main electronic parts brand: Siemens.





    Main Technical Data


     Product Name   Pulp Tray Making Machine
     Machine Type  BY010
     Trademark  NANYA
     Raw Material   waste paper
     Forming Method  Reciprocating Moulding
     Structure  Double working stations
     Mould Plate Size 800*600*2mm
     Capacity 100~150kg/hour
     Product Height  <=150mm
     Application  Electronic Package Pulp Tray





    YOUTUBE Video Link


    https://www.youtube.com/watch?v=aZr_Z5UKLLY&t=35s



    For more video, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





    How This Production Line Works


     Pulping System The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
     Forming System

    With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically.

     Drying System Metal drying line / sunshine drying / drying room
     Hot press system After dried, the products will be hot pressed to get a better shape and smoother surface.

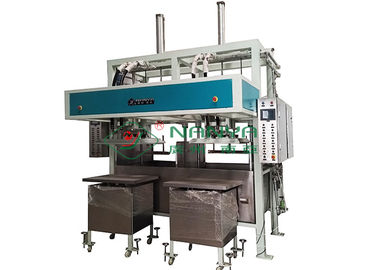

    Forming Machine Picture


    Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V



    Finished Product Show


    1. Electronic Package Pulp Tray, like for TV, cooker, battery, air conditioner, car parts and other electrical items.

    2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup

    3. Disposable Medical Care Products, like kidney, bedpan, sick pad, urinal pan…

    The below is one type product made by this machine, by changing moulds, the machine can make different products.

    Double Reciprocate Electronic Package Pulp Tray Machine 220V / 380V





    Business Terms


     MOQ One set for our own available designs.
     Model Choice According to your requirement (like size and capacity), our engineer will help to make the model selection accordingly. And we also can provide the professional plant layout design for customers.
     Payment Terms T/T, L/C, D/P, D/A, Western Union, Money Gram, etc.
     Delivery Time Around 45 working days from the payment date.
     Assembly &commissioning We will assign our engineer for assembly and commissioning.





    Why Choose NANYA



    1. Provide the professional technical support for designing plant layout and recommending suitable machine.

    2. Provide the turn-key production line, installing, commissioning and staff training.

    3. Provide one year warranty and lifetime maintenance.

    4. Provide one year spare parts free, and a large stock of components and parts for emergency requirement.

    5. Provide 24hours/7days online service.
