8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line

    • 8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line
    • 8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line
    • 8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line
  • 8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: NANYA
    Certification: CE, TUV,SGS, ISO9001
    Model Number: ER3000-B~ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 100-120 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 100 sets/ years
    Contact Now
    Detailed Product Description
    Production Name: Rotary Egg Tray Machine Capacity: 3000~6000 Pcs/Hour
    Dryer: 6-Layers Metal Dryer Fuel: Diesel/Heavy Oil/LPG/Natural Gas/Coal/Wood…
    Material: Waste Paper / Waste Carton / Used Newspaper Color: Green(can Be Customized)
    Guarantee: 12 Months Automation: Fully Automatic

    8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line





    Descriptions:



    This is a Fully Automatic Egg Tray Production Line, with high automation and save lobor.

    This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a multiple-layer drying line, and corollary equipments.

    Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, egg boxes, cup carriers and disposable medical care products and etc.

    The raw material is the waste paper, waste carton, used paper, books, magazines and etc.

    SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.





    Specifications:



    Model type

    ER3000-B

    ER4000-B

    ER5000-B

    ER6000-B

    Capacity

    3000pcs/hour

    4000pcs/hour

    5000pcs/hour

    6000pcs/hour

    Workshop Requirement

    400m2

    500m2

    600m2

    700m2

    Electricity Consumption

    ~115kw
    (170kw installed)

    ~150kw
    (240kw installed)

    ~190kw
    (290kw installed)

    ~210kw
    (350kw installed)

    Material Consumption

    180~210kg/h

    250~280kg/h

    320~350kg/h

    360~400kg/h

    Water Consumption

    600~800kg/h

    800~1000kg/h

    1000~1200kg/h

    1200~1400kg/h

    Fuel Consumption

    (one item selectable)

    Natural gas

    55~65m3/h

    70~80m3/h

    85~95m3/h

    100~110m3/h

    LPG

    19~22m3/h

    25~29m3/h

    31~35m3/h

    36~40m3/h

    Diesel

    45~55kg/h

    62~70kg/h

    78~85kg/h

    90~98kg/h

    Heavy oil

    46~56m3/h

    63~72kg/h

    79~87kg/h

    92~100kg/h

    Steam

    1.0~1.2ton/h

    1.3~1.5ton/h

    1.6~1.8ton/h

    1.8~2.0ton/h

    Wood

    190~220kg/h

    250~290kg/h

    310~350kg/h

    360~400kg/h

    Coal

    130~150kg/h

    160~190kg/h

    200~220kg/h

    240~270kg/h

    Worker requirement

    4~5person

    4~5person

    4~5person

    5~6person

    Container requirement for shipment

    6 x 40HQ

    7 x 40HQ

    8 x 40HQ

    9 x 40HQ

    Forming machine

    Rotary type with 8 plates. Each for 3pcs/time

    Rotary type with 8 plates. Each for 4pcs/time

    Rotary type with 8 plates. Each for 5pcs/time

    Rotary type with 8 plates. Each for 6pcs/time

    Drying production line

    20mx2.2mx4m
    6-Layers

    22mx2.6mx4m
    6-Layers

    22mx3.0mx4m
    6-Layers

    22mx3.4mx4m
    6-Layers

    Remarks:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant .

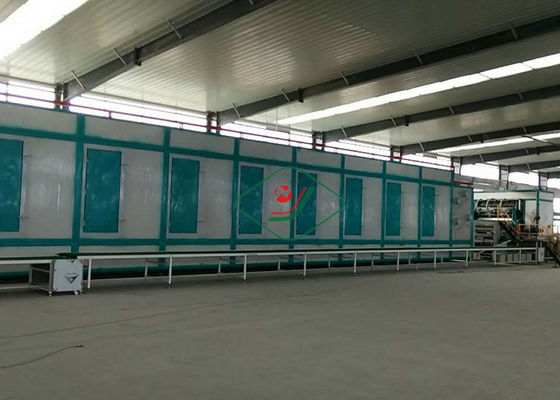

    Picture of Multi Layer Dryer:



    8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line





    How the Production Line Works:



     Pulping  System  Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main  equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
     Forming  System  When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of  vacuum and compressed air, the products will be formed on the moulds.
     Drying  System  After forming, the tranfer moulds will move forward and put on the dryer automatically. you can  choose Natural  gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet  products.
     Stacking &  Packing  System  After dried, the products will go to package. Court the number of the dried products, sperate  them and stack them up.





    YOUTUBE Links:



    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4



    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





    Applications:



    1. Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;
    2. Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;
    3. Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items
    4. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

    The below is one type of medical trays made by our machine, by changing moulds, the machine can make different products.

    8 Faces Rotary Pulp Molding Equipment / Paper Egg Tray Production Line





    Competitive Advantages:



    Rich Experience: Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;

    Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

    Mould Making Experience: NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;

    Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 50 countries and regions;

    Strong Teams: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.





    Business Terms:



     Payment Terms  30% down payment before production; 70% balance payment before delivery.
     Delivery Terms  FOB Guangzhou, China. (CNF and CIF are also available.)
     Delivery Time  100~120 days
     Package  Export Standard Packing
     Warranty  12 months
     Installation  Overseas engineering service is available
     Quotation Validity  90 days after the offering date
     Aftersales Service  We will send some spare parts for hot press use by free. And we will provide  operating manual, drawing, process diagram for all of the machine. We will instruct  the operation, maintain method for the buyer’s worker after installation.
