Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE

Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE

    • Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE
    • Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE
    • Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE
  • Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ER3000-A~ER6000-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45-75 days
    Payment Terms: L/C, T/T, Cash, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Product Name: Egg Tray Machine Capacity: 3000~6000 Pcs/h
    Dryer: Single Layer Automatic Dryer Fuel For Dryer: Diesel, Heavy Oil, LPG, Natural Gas, Steam…
    Production: Egg Tray, Egg Carton, Fruit Tray, Cup Holder... Raw Material: Waste Paper / Waste Carton / Old Books
    Installation: Engineer Overseas Available

    Disposable Paper Rotary Egg Tray / Cup Holder Pulp Molding Equipment with CE


    Specifications:



    Model Type

    ER3000-A

    ER4000-A

    ER5000-A

    ER6000-A

    Capacity

    3000pcs/hour

    4000pcs/hour

    5000pcs/hour

    6000pcs/hour

    Workshop Requirement

    500m2

    600m2

    700m2

    800m2

    Electricity Consumption

    ~120kw
    (180kw installed)

    ~160kw
    (250kw installed)

    ~200kw
    (300kw installed)

    ~220kw
    (360kw installed)

    Material Consumption

    180~210kg/h

    250~280kg/h

    320~350kg/h

    360~400kg/h

    Water Consumption

    600~800kg/h

    800~1000kg/h

    1000~1200kg/h

    1200~1400kg/h

    Worker Requirement

    4~5person

    4~5person

    4~5person

    5~6person

    Container Requirement for Shipment

    6 x 40HQ

    7 x 40HQ

    8 x 40HQ

    9 x 40HQ

    Forming Machine

    Rotary type with 8 plates. Each for 3pcs/time

    Rotary type with 8 plates. Each for 4pcs/time

    Rotary type with 8 plates. Each for 5pcs/time

    Rotary type with 8 plates. Each for 6pcs/time

    Drying Production Line

    42mx2.2mx3.6m

    42mx2.6mx3.6m

    42mx3.0mx3.6m

    42mx3.4mx3.6m

    Remarks:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.




    Fuel Consumption (One Item Selectable)



    Type

    ER3000-A

    ER4000-A

    ER5000-A

    ER6000-A

    Natural Gas

    60~70m3/h

    80~90m3/h

    100~110m3/h

    110~120m3/h

    LPG

    21~24m3/h

    28~32m3/h

    35~39m3/h

    40~45m3/h

    Diesel

    50~60kg/h

    68~76kg/h

    85~92kg/h

    95~100kg/h

    Heavy Oil

    52~62m3/h

    70~80kg/h

    88~95kg/h

    98~105kg/h

    Steam

    1.1~1.3ton/h

    1.4~1.6ton/h

    1.7~1.9ton/h

    1.9~2.2ton/h

    Wood

    210~240kg/h

    280~320kg/h

    350~390kg/h

    400~450kg/h

    Coal

    140~160kg/h

    180~210kg/h

    220~250kg/h

    260~300kg/h



    Descriptions:



    • This is a Fully Automatic Egg Tray Production Line, with high automation and save lobor.

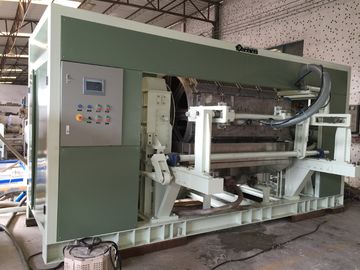

    • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single layer drying line, and corollary equipments.

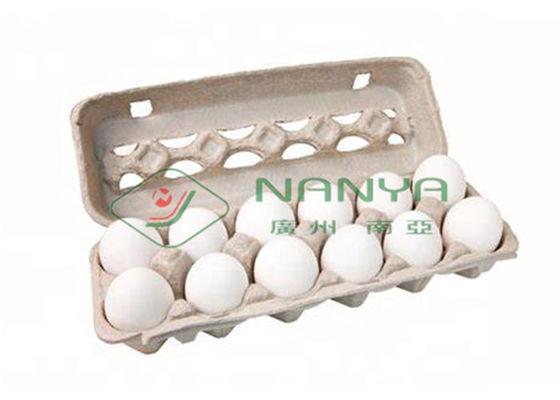

    • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, egg boxes, cup carriers and disposable medical care products and etc.
    • The raw material is the waste paper, waste carton, used paper, books, magazines and etc, which can be got at cheap price.
    • It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    • Applys International famous brand of control parts to obtain excellent performance and universality maintainability.




    Competitive Advantages:



    • Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;
    • Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
    • NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
    • NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
    • Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.





    Working Theory:



    • The track or worker carries the raw material into the hydrapulper firstly;
    • Then hydrapulper mixing the raw material with certain mater;
    • Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
    • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
    • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum.
    • Finally the wet products will move into the drying line automatically. Then the dried products will go into stacker and get packed.





    YOUTUBE Links:



    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4



    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M

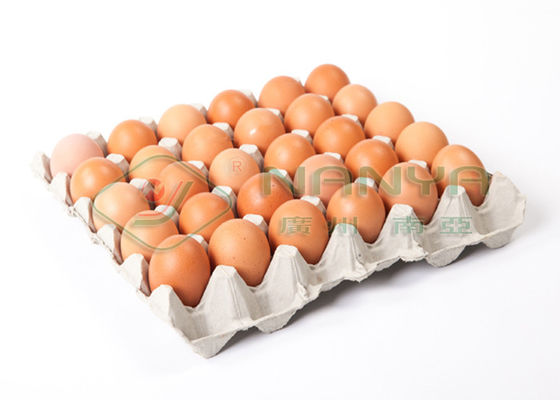

    30 Cells Egg Tray Image:



    Egg Tray / Cup Holder Pulp Molding Equipment Disposable Paper Rotary with CE





    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45~75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.

    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.

    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.

    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
