Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line

    • Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line
    • Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line
    • Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line
  • Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: TA01~TA10B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 60-120 Days
    Payment Terms: T/T, L/C, Cash or Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Product Name: Dishware Pulp Molding Equipment Mould Szie: 1300*1100mm
    Capacity: 1800~18000 Pcs / H Drying Method: Drying In Mould
    After-Sale Service: Engineers Overseas Available Applications: Dishware / Tableware
    Automation: Automatic In One Machine Raw Material: Virgin Pulp / Sugarcane Pulp / Bamboo Pulp...

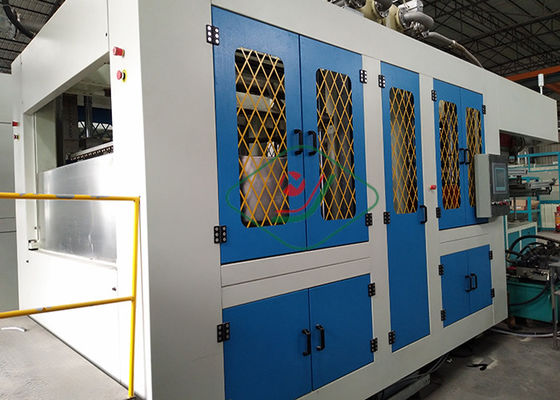

    Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line





    Introduction of the Virgin Pulp Dishware Production line:



    The pulp molded paper tableware is usually made of virgin pulp, like sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp and etc.
    2.The virgin is smashed and mixed in the hydrapulper and adjusted to a certain consistency in the tanks.
    3.The fiber in the pulp will cover the wire mesh of the mold by the vacuum and drop down by the air compressor.
    4.The wet products will be formed, dried and hot pressed, edge trimmed in the forming machine. Then the dried products will go disinfection processes.




    Specifications:



    Model Type

    TA-01B

    TA-02B

    TA-05B

    TA-10B

    Forming Machine 1 set  2 sets 5 sets 10 sets

    Capacity

    1800pcs/h

    3500pcs/h

    9000pcs/h

    18000pcs/h

    Workshop Requirement

    200m2

    230m2

    600m2

    1200 m2

    Electricity Consumption

    120kw

    390kw

    550kw

    1100kw

    Electricity Installed

    200kw

    250kw

    880kw

    1700kw

    Material Consumption

    25~30kg/h

    50~60kg/h

    120~150kg/h

    250~300kg/h

    Water  Consumption

    80~100kg/h

    150~200kg/h

    500~600kg/h

    1000~1200kg/h

    Worker Requirement

    3 persons

    4 persons

    6 persons

    10 persons

    Container Requirement for Shipment

    1 x 40’HQ

    2 x 40’HQ

    4 x 40’HQ

    8 x 40’HQ

    Forming Type

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Vacuum suction, thermoforming

    Drying Method

    Drying in mould

    Drying in mould

    Drying in mould

    Drying in mould

    Notes:

    1. The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products.
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.




    Descriptions:



    • Fully Automatic Tableware Making Production Line
    • Mainly used for high quality products , such as tableware, dishware and some high-grade pulp molding products.
    • The products are 100% biodegradable and environmental friendly.
    • Status: Brand new
    • Product Type: Tableware Making Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: TA-01B~TA-10B
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas




    Competitive Advantages:



    • Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;
    • Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
    • NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
    • NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
    • Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.




    Applications:

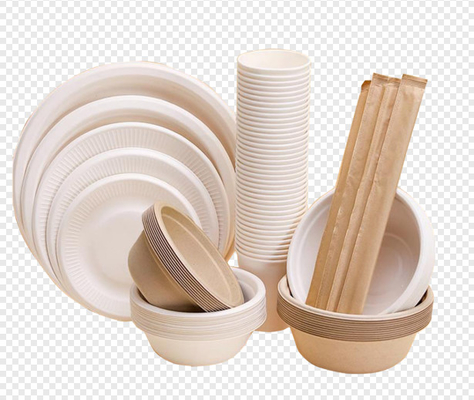

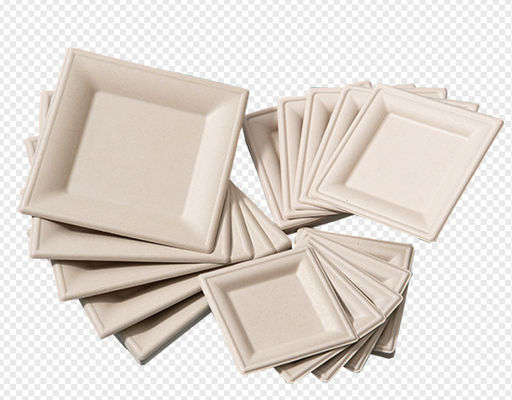

    Food container

    Dishware, tableware, paper cups, lunch box, bowl, clamshell…

    Artware

    Mask, Christmas balls, Easter Eggs , boutiques…

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    High quality packages

    Mobile phone package, camera package,

    Automatic Virgin Pulp Molding Equipment for Paper Cup / Dishware Production Line







    Youtube Video Links:





    The below are the YOUTUBE Links showing how these semi automatic tableware production line work:

    (1) https://www.youtube.com/watch?v=7YLnwE5lqJw

    (2) https://www.youtube.com/watch?v=PrmRiMvirr8



    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.











    Business Terms:


    NO. ITEM DESCRIPTION
    1 Payment Terms 30% down payment by T/T,
    70% before shipment by T/T or L/C at sight
    2 Delivery Terms FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
    3 Delivery Time 75 days
    4 Packages Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.
    5 Installation Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.
    6 Warranty 12 months after installation
    7 After service

    1. The seller will send spare parts for one year use by free.

    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.

    3.The seller will instruct the operation, maintain method for the buyer’s worker after installation.

    4.The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8 Quotation Validity

    90 days after the offering date
