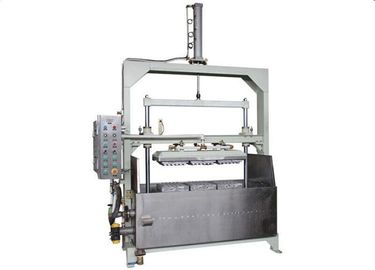

Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine

Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine

    • Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine
    • Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine
    • Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine
  • Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine

    Product Details:

    Place of Origin: China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ES400C-ES3000C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 400-3000 Pcs/h
    Automation: Semi-automatic Forming Type: Vacuum Suction
    Standard: CE/TUV/SGS/ISO9001 Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
    Voltage: 220 V - 450 V After-sales Service: Engineers Available To Service Overseas

    Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine



    Descriptions:

    • This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
    • The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
    • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
    • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
    • The formed products can be dried by drying product line, drying house or under the sunshine directly.
    • There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.

    Specifications:



    Model

    Type

    ES400-C

    ES600-C

    ES800-C

    ES1200-C

    ES2000-C

    ES3000-C

    Capacity

    400pcs/h

    600pcs/h

    800pcs/h

    1200pcs/h

    2000pcs/h

    3000pcs/h

    Hydrapulper

    0.5m3, 5.5kw

    0.5m3, 5.5kw

    1.5m3, 15kw

    1.5m3, 15kw

    2.5m3, 25kw

    3.5m3, 35kw

    Forming Machine

    Plate Size 800*400mm 2pcs/unit

    Plate Size 1200*400mm 3pcs/unit

    Plate Size 1600*400mm 4pcs/unit

    Plate Size 1200*800mm 6pcs/unit

    Plate Size 1600*800mm 8pcs/unit

    Plate Size 1600*1200mm 10pcs/unit

    Workshop Requirement

    Workshop ≥100m2 Drying Yard≥80m2

    Workshop ≥120m2 Drying Yard≥120m2

    Workshop ≥150m2 Drying Yard≥1500m2

    Workshop ≥200m2 Drying Yard≥200m2

    Workshop ≥400m2 Drying Yard≥400m2

    Workshop ≥400m2 Drying Yard≥600m2

    Power Requirement

    35kw

    40kw

    60kw

    80kw

    100kw

    140kw

    1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g.

    2. For different capacity, customized allocation can be made according to the clients’ requirement.

    3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.









    Applications:



    Egg tray

    20,30,40packed egg tray…  quail egg tray

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…

    Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine





    Competitive Advantages:

    • Semi-antomatic production line
    • Siemens servo motor is applied
    • Energy saving and labor utilization
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
    • The standing director of Chinese packaging association





    Flow Chart:



    Small Capacity Manually Paper Egg Tray / Egg Box / Egg Carton Making Machine





    YOUTUBE Link:



    https://www.youtube.com/watch?v=9zfF0pypvFA





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    45-75 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
